MIYANO TSV-25 CNC MILL, FANUC O-M, 20 x 15 x 10, 30 TAPER, RIGID TAP VMC, '89 (4753)

MIYANO TSV-25 CNC MILL, FANUC O-M, 20 x 15 x 10, 30 TAPER, RIGID TAP VMC, '89 (4753)

Stock Number: 4753


Click to view larger photo

Request A Quote On Our Stock Number: 4753 MIYANO TSV-25 CNC MILL, FANUC O-M, 20 x 15 x 10, 30 TAPER, RIGID TAP VMC, '89 (4753)Request a quote on stock# 4753
SpecificationDescription
MANUFACTURED NEW1988
TABLE SIZE15" x 24"
MAXIMUM TABLE LOAD440 LBS
X AXIS TRAVEL19.6"
Y AXIS TRAVEL15"
Z AXIS TRAVEL9.8"
RAPID TRAVERSE RATE X & Y AXES787 IPM
RAPID TRAVERSE RATE Z AXIS591 IPM
CUTTING FEED RATE0 - 200 IPM
SPINDLE TAPERBT 30
SPINDLE SPEEDS60 - 6,000 RPM
SPINDLE MOTOR7.5 HP
TOOL CHANGER CAPACITY12 STATION ATC
DIMENSIONS, APPROX.59" x 74" x 103"
WEIGHT, APPROX.4850 LBS

Equipped With:

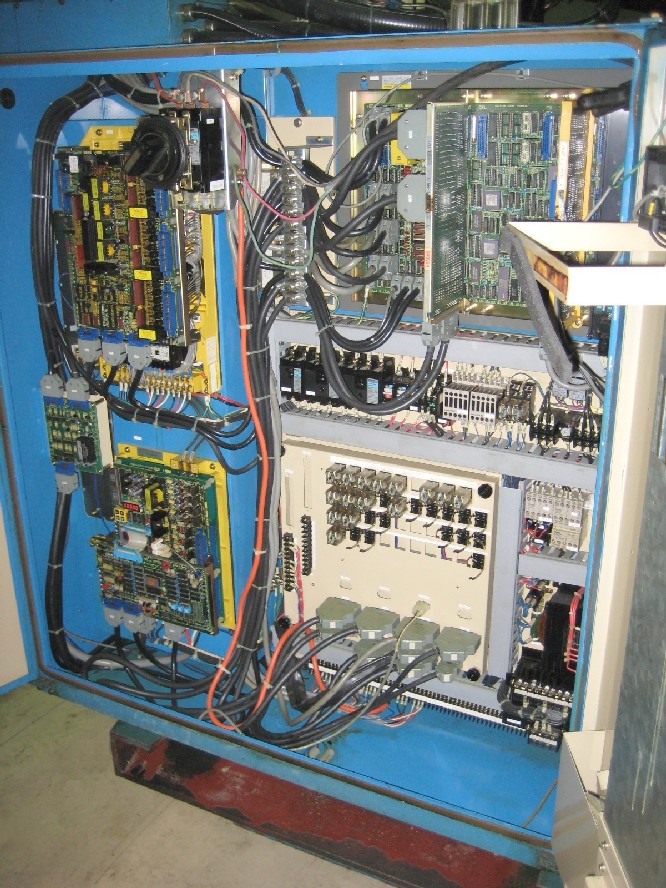

FANUC O-M CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
FLOOD COOLANT SYSTEM w/PUMP & TANK,
ALL AVAILABLE MANUALS
