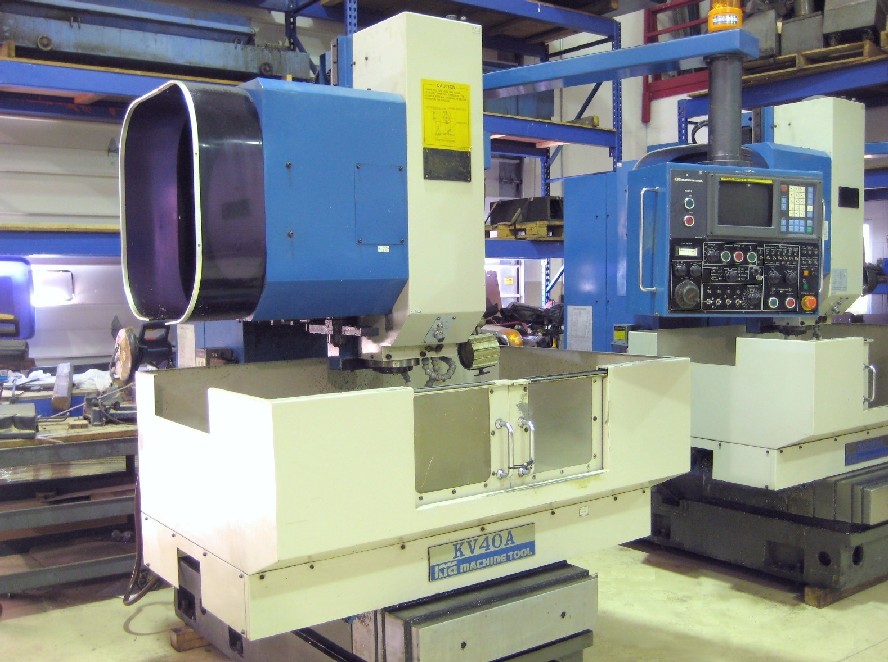

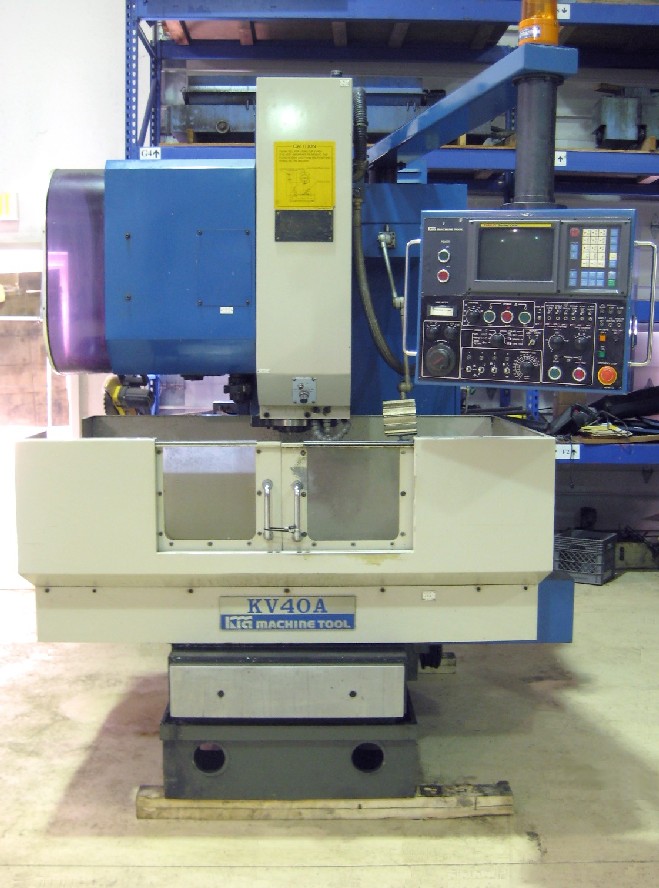

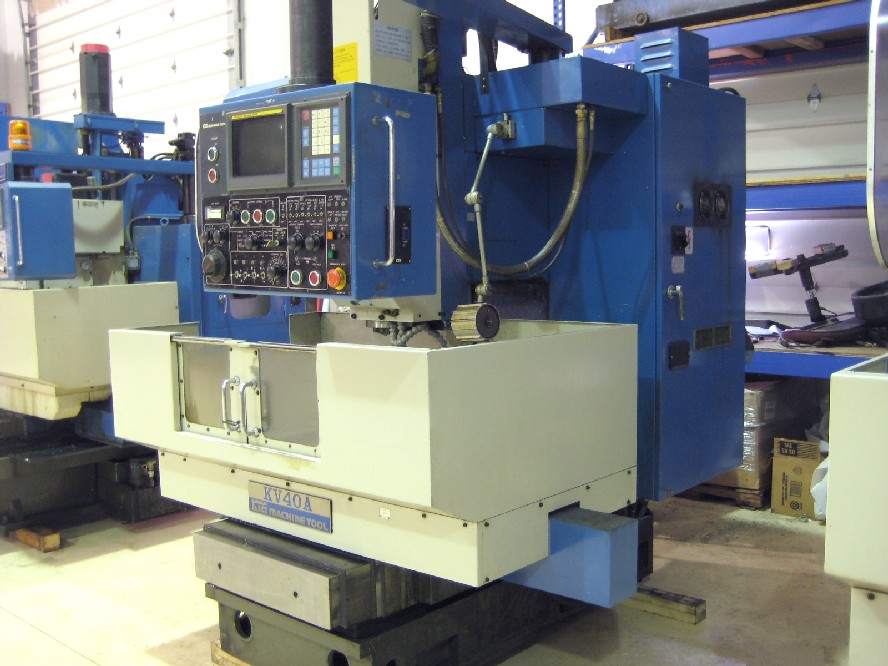

KIA KV40A CNC MILL, FANUC O-M C, 22 x 16 x 18 TRAVELS, 40 TAPER, RIGID TAP VMC, '92

KIA KV40A CNC MILL, FANUC O-M C, 22 x 16 x 18 TRAVELS, 40 TAPER, RIGID TAP VMC, '92

Stock Number: 4729


Click to view larger photo

Request A Quote On Our Stock Number: 4729 KIA KV40A CNC MILL, FANUC O-M C, 22 x 16 x 18 TRAVELS, 40 TAPER, RIGID TAP VMC, '92Request a quote on stock# 4729
SpecificationDescription
MANUFACTURED NEW1992

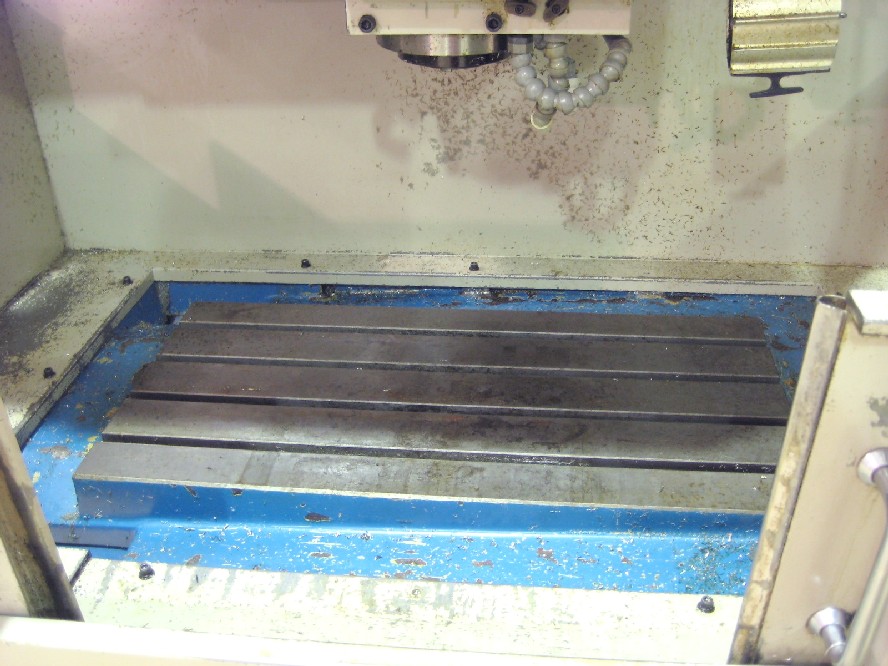

TABLE SIZE16" x 35.4"
MAXIMUM TABLE LOAD660 LBS
SPINDLE NOSE TO TABLE TOP5.9" - 24"
X AXIS TRAVEL22.4"
Y AXIS TRAVEL16"
Z AXIS TRAVEL18"
RAPID TRAVERSE RATE X & Y AXES590 IPM
RAPID TRAVERSE RATE Z AXIS472 IPM
CUTTING FEED RATE0 - 196 IPM
SPINDLE TAPERBT 40
SPINDLE SPEEDS150 - 6,000 RPM
SPINDLE MOTOR7.5 HP

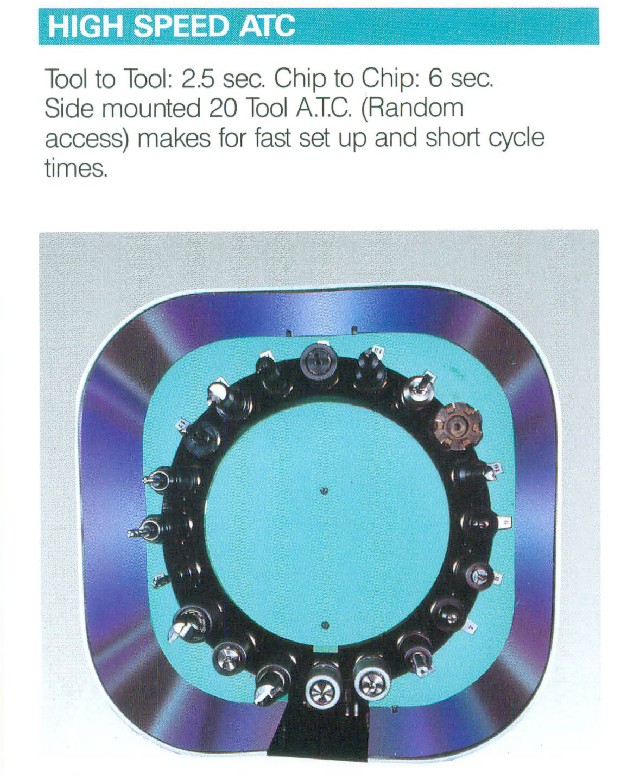

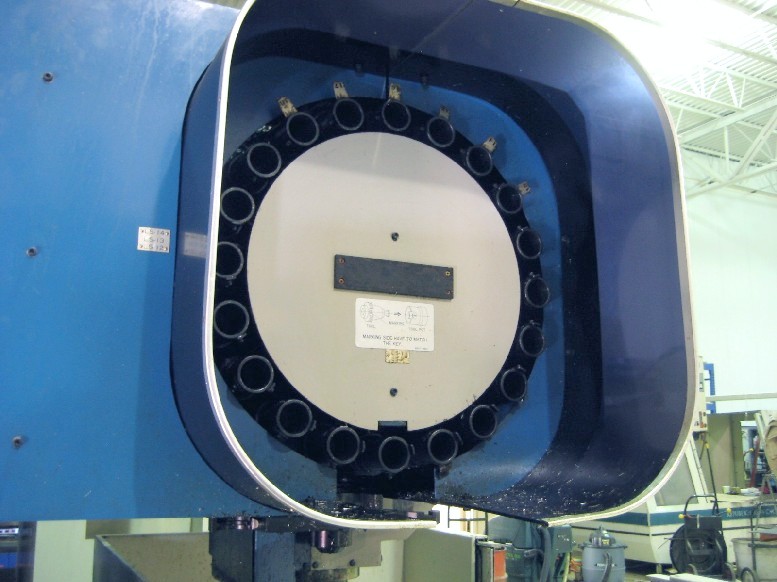

TOOL CHANGER CAPACITY20 STATION ATC
DIMENSIONS, APPROX.82" x 88" x 98"
WEIGHT, APPROX.7800 LBS

Equipped With:

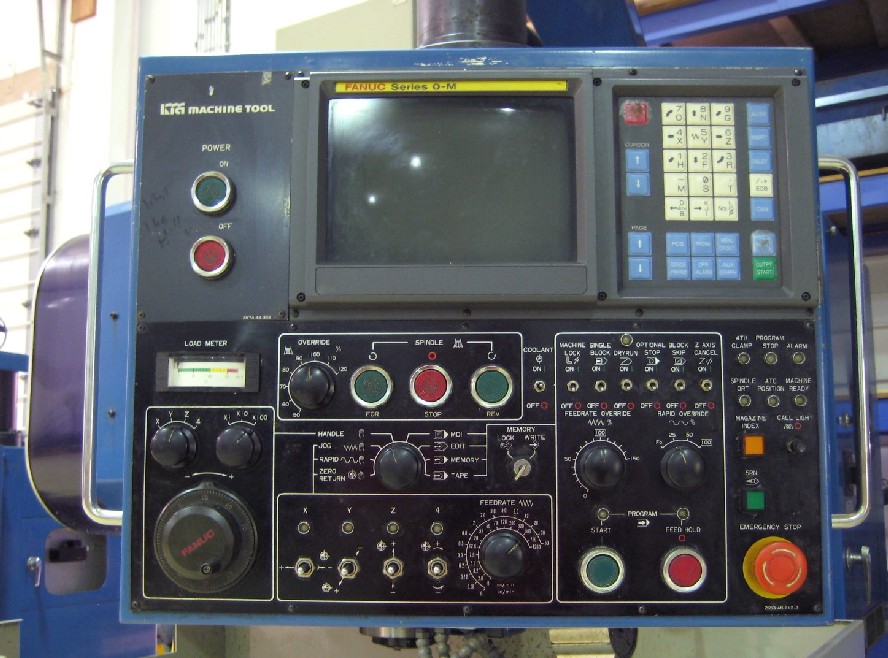

FANUC O-MC CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
FLOOD COOLANT SYSTEM w/PUMP & TANK,
ALL AVAILABLE MANUALS
***VIDEO AVAILABLE UPON REQUEST
