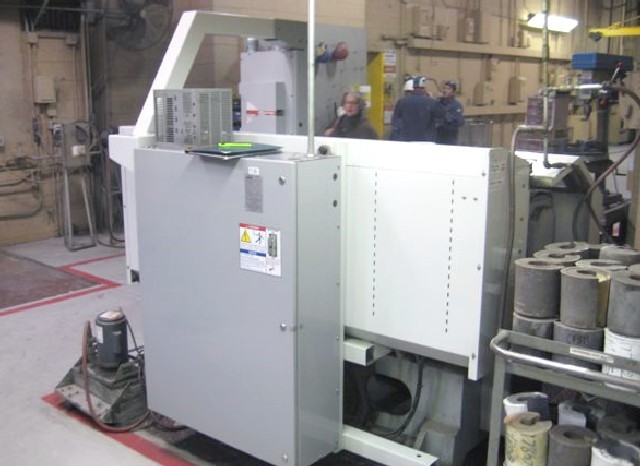

HAAS TL-1 CNC TOOLROOM LATHE, 16 SW, 31 CENTERS, TAILSTOCK, AUTO TURRET TOOLPOST, FULL ENCLOSURE, NEW 2008
Stock Number: 4721
Click to view larger photo
Request a quote on stock# 4721
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 2008, Nov. |
| MAX. SWING OVER FRONT APRON | 16" |
| SWING OVER CROSS SLIDE | 9.5" |
| DISTANCE BETWEEN CENTERS | 30" |
| MAXIMUM TURNING DIAMETER | 16" |
| MAXIMUM TURNING LENGTH | 30" |
| X-AXIS TRAVEL | 8" |
| Z-AXIS TRAVEL | 29.5" |
| RAPID TRAVERSE RATE X-AXES | 75 IPM |
| RAPID TRAVERSE RATE Z-AXES | 150 IPM |
| SPINDLE BORE | 2.31" |
| SPINDLE SPEEDS | 2000 RPM |
| SPINDLE MOTOR | 7.5 HP |
| POWER/ ELECTRICS | THREE-PHASE/208V, 25A |
| DIMENSIONS, APPROX. | 84" x 52" x 69" |
| WEIGHT, APPROX. | 4700 LBS |
Equipped With:
HAAS TRIPLE 32-BIT CNC CONTROL w/12" COLOR LCD,
USB COMM. PORT INTERFACE FOR DNC OPERATION,

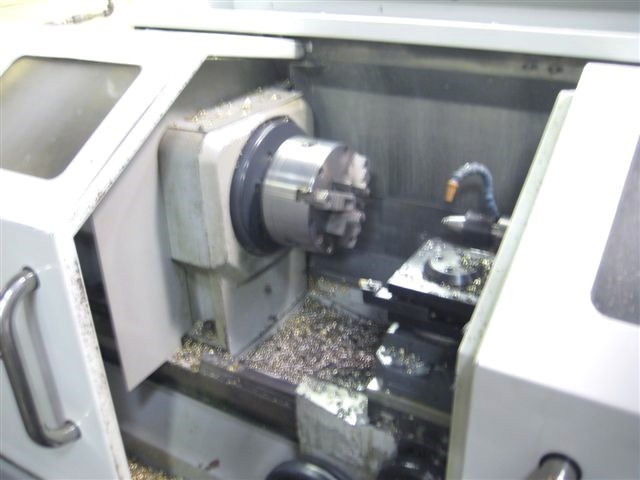

8" 3-JAW CHUCK w/SPINDLE ORIENTATION TO ANY POS.,

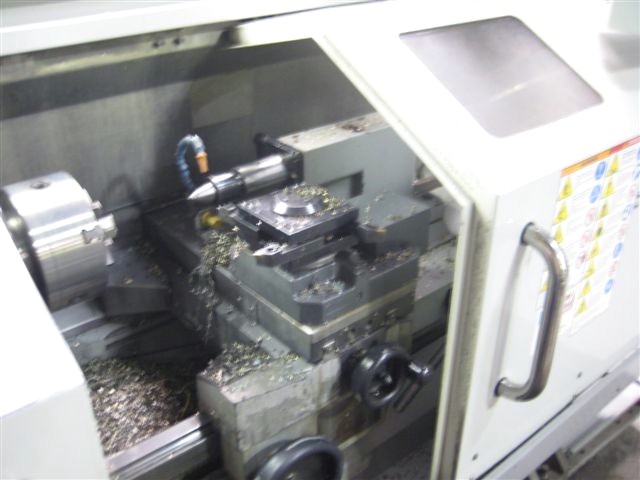

w/4-STATION AUTOMATIC TOOL TURRET,
INTUITIVE PROGRAMMING SYSTEM (CONVERSATIONAL),
w/OPTIONAL FULL ENCLOSURE/GUARDING & DOOR,
TEACH & RECORD MODE FOR DUPLICATING PARTS,
CUSTOM MACRO PROGRAMMING (TRUE LANGUAGE),
TAILSTOCK w/ADJ. QUILL, THREADING,
HIGH-FLOW COOLANT PUMP SYSTEM,
ISO STANDARD G-CODE COMPATIBILITY,
GEOMETRY OFFSETS, RIGID TAP,
SERVO DRIVEN HANDWHEELS FOR MANUAL
OPERATION AS WELL AS FULL CNC.
