Request a quote on stock# 4765| Specification | Description |
|---|---|
| MANUFACTURED NEW | 1996 |

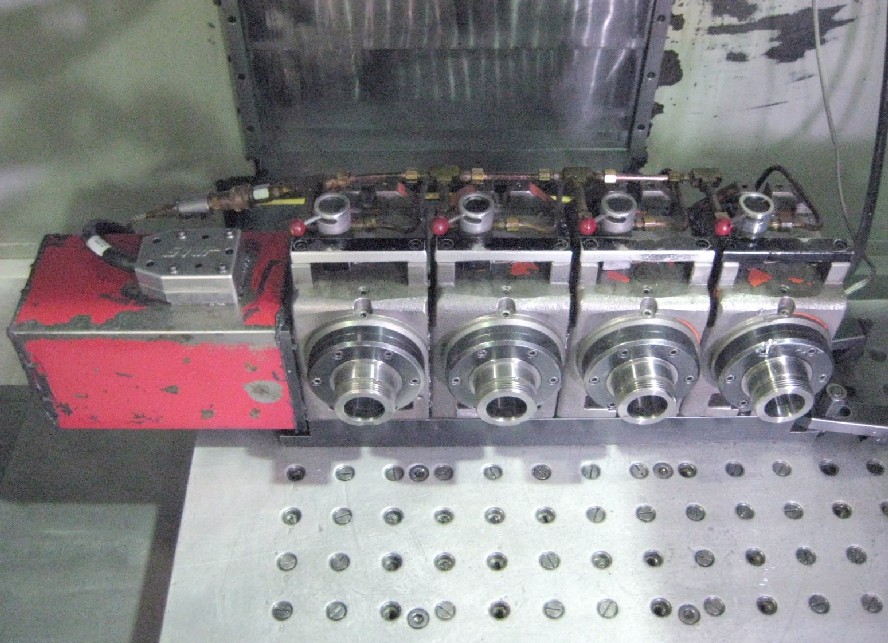

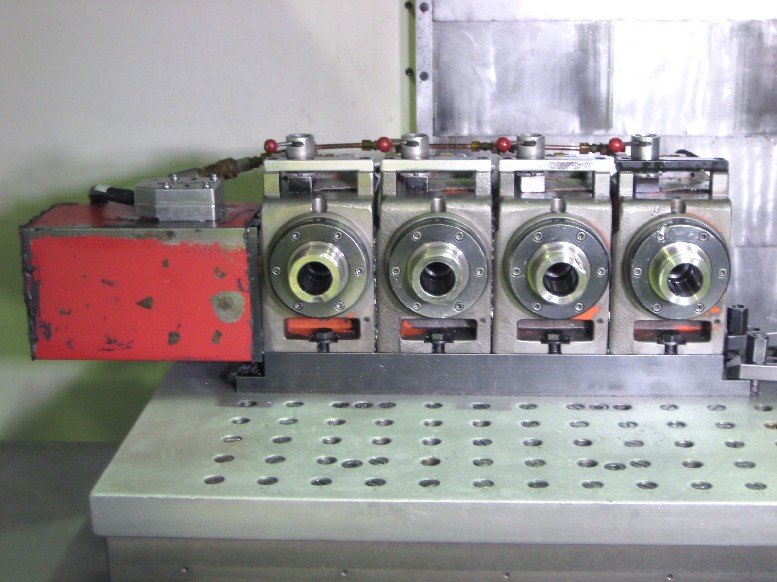

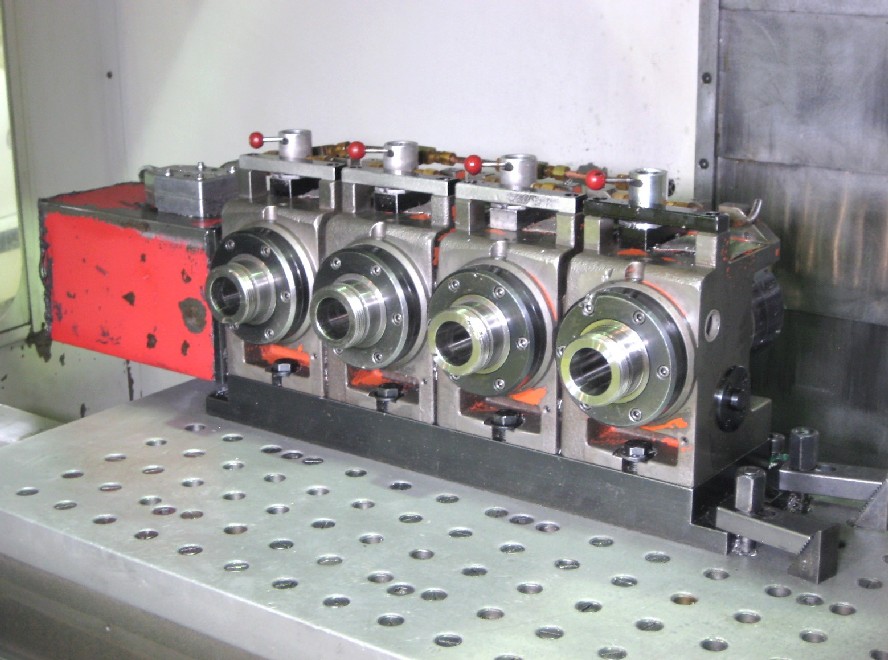

| SPINDLE CHUCK/TYPE | 5C COLLET (FOUR HEAD) |
| MAXIMUM TORQUE | 30 FT-LBS PER SPINDLE |
| CENTER SPINDLE HEIGHT | 4.000 � 0.001" |
| BACKLASH | 50 ARC-SECONDS |
| MINIMUM MOVEMENT INCREMENT | 0.001� |
| SPEEDS | 0.001� to 200�/SEC |
| INDEXING ACCURACY | �60 ARC-SECONDS |
| MAX ROTATION/STEP | 999.999� |
| REPEATABILITY | 10 ARC-SECONDS |
| RUNOUT, MAX. | 0.0004" |
| WORM GEAR DIAMETER | 2.8" |
| SERVO MOTOR | 1 HP AC SERVO |
| DISTANCE BETWEEN SPINDLES | 5" |
| WEIGHT, APPROX. | 280 LBS |

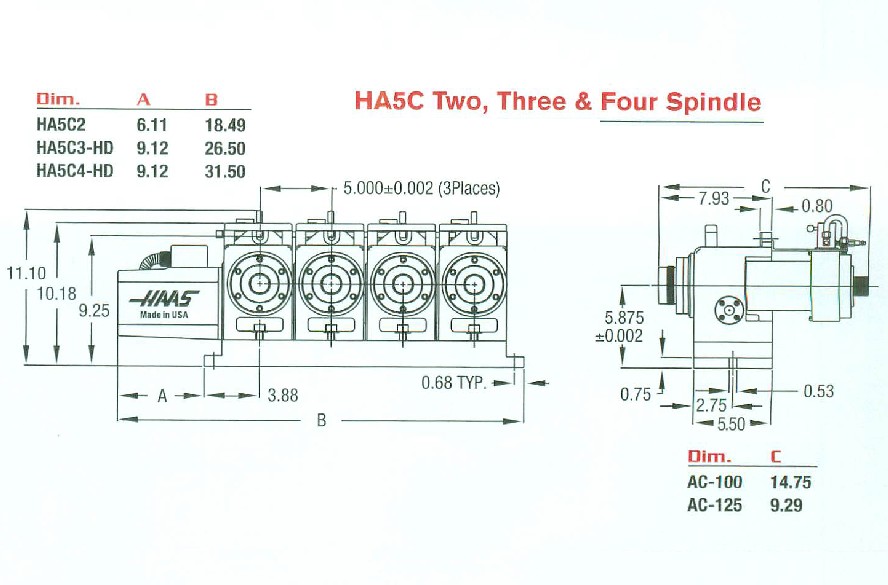

| DIMENSIONS, APPROX. | 33"L x 12"W x 12"H |
