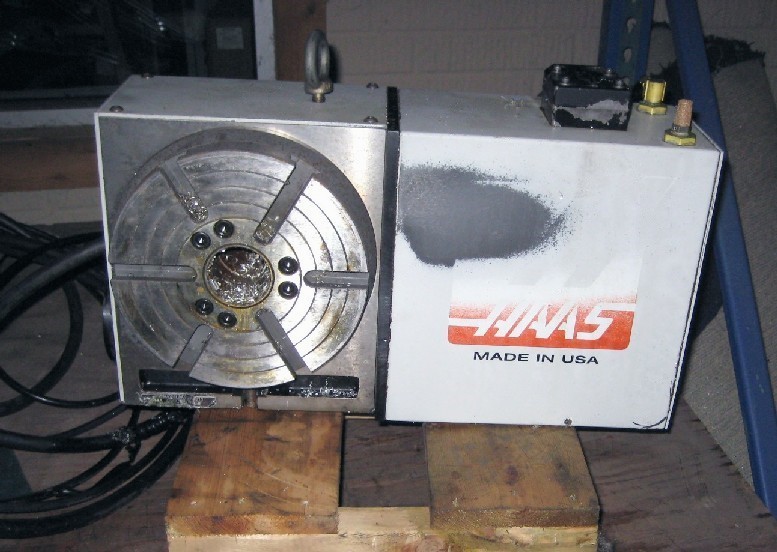

HAAS HRT-210 CNC 4th AXIS ROTARY TABLE, 8.27 IN DIAMETER, 0.001, VF1, VF2, VF3, VF4, VF5, VF6, VF7, VF8, INTERFACE CABLE

HAAS HRT-210 CNC 4th AXIS ROTARY TABLE, 8.27 IN DIAMETER, 0.001, VF1, VF2, VF3, VF4, VF5, VF6, VF7, VF8, INTERFACE CABLE

Stock Number: 4725


Click to view larger photo

Request A Quote On Our Stock Number: 4725 HAAS HRT-210 CNC 4th AXIS ROTARY TABLE, 8.27 IN DIAMETER, 0.001, VF1, VF2, VF3, VF4, VF5, VF6, VF7, VF8, INTERFACE CABLERequest a quote on stock# 4725
SpecificationDescription
TABLE PLATTER DIAMETER8.27"
MAXIMUM TORQUE210 FT-LBS
BACKLASH30 ARC-SECONDS
NUMBER OF T-SLOTS @ 60� EACH6
BRAKE TORQUE200 FT-LBS @ 100 PSI
CENTER HEIGHT6.000" �0.001"
SPEEDS0.001 - 60/SEC. DEGREE
INDEXING ACCURACY�15 ARC-SECONDS
REPEATABILITY10 ARC-SECONDS
WORM GEAR DIAMETER6.3"
RESOLUTION0.001 DEGREE
MAX ROTATION/STEP999.999 DEGREE
MOTOR1.5 HP DC
MAX AIR PRESSURE120 PSI
WEIGHT OF CNC ROTARY TABLE170 LBS

Equipped With:
INTERFACE CABLE FOR HRT-210 ROTARY TABLE
PNEUMATIC LINE CONNECTOR FOR ROTARY TABLE
