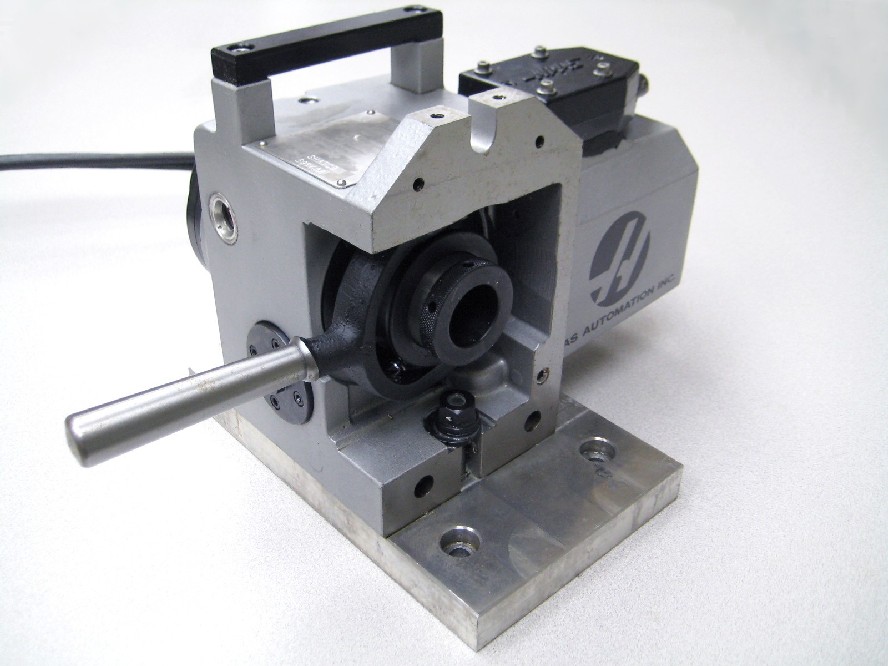

HAAS HA-5C CNC INDEXER, 5C COLLET, 1 DEG, BRUSHLESS SERVO, SHA5C, NEW 2006

HAAS HA-5C CNC INDEXER, 5C COLLET, 1 DEG, BRUSHLESS SERVO, SHA5C, NEW 2006

Stock Number: 4693


Click to view larger photo

Request A Quote On Our Stock Number: 4693 HAAS HA-5C CNC INDEXER, 5C COLLET, 1 DEG, BRUSHLESS SERVO, SHA5C, NEW 2006Request a quote on stock# 4693
SpecificationDescription
MANUFACTURE DATE2006
TABLE SIZE / NOSE5C COLLET
ELECTRIC DRIVE TYPEBRUSHLESS
SPINDLE TORQUE, MAX.60 FT-LBS
RUNOUT, MAX.0.0004"
SPEEDS0.001 DEG. to 410 DEG./SEC
MINIMUM MOVEMENT INCREMENT0.001 DEG. RESOLUTION
CENTER HEIGHT4.000 � 0.001"
INDEXING ACCURACY�30 ARC-SECONDS
REPEATABILITY10 ARC-SECONDS
MAX. ROTATION/STEP999.999 DEG.
BACKLASH40 ARC-SECONDS
WORM GEAR DIAMETER2.8"
MOTOR0.75 HP
POWER REQUIRED115 VAC at 10 A
WEIGHT, APPROX.51 LBS

Equipped With:
BRUSSLESS SERVOS,
INTERFACE CABLE APPROX. 10' LONG, DUAL PLUGS,
VARIABLE FEEDRATES,
MANUAL HANDLE CLOSER,
***SIMPLE CNC INTERFACING VIA M-CODE.
****THIS IS NEW COMPACT STYLE (#SHA5CB model)
