Request a quote on stock# 4401| Specification | Description |
|---|---|
| MANUFACTURED NEW | 1999 |

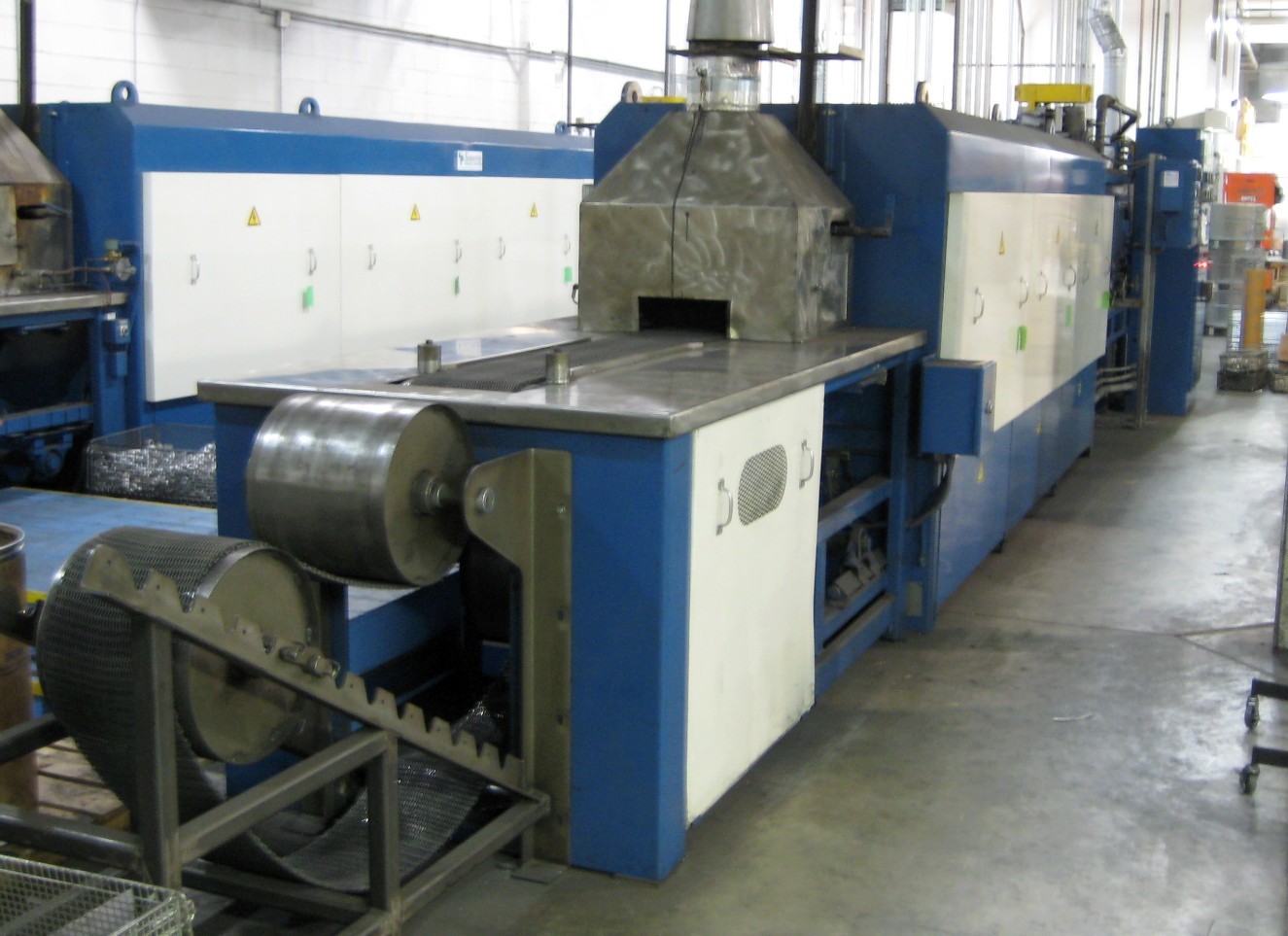

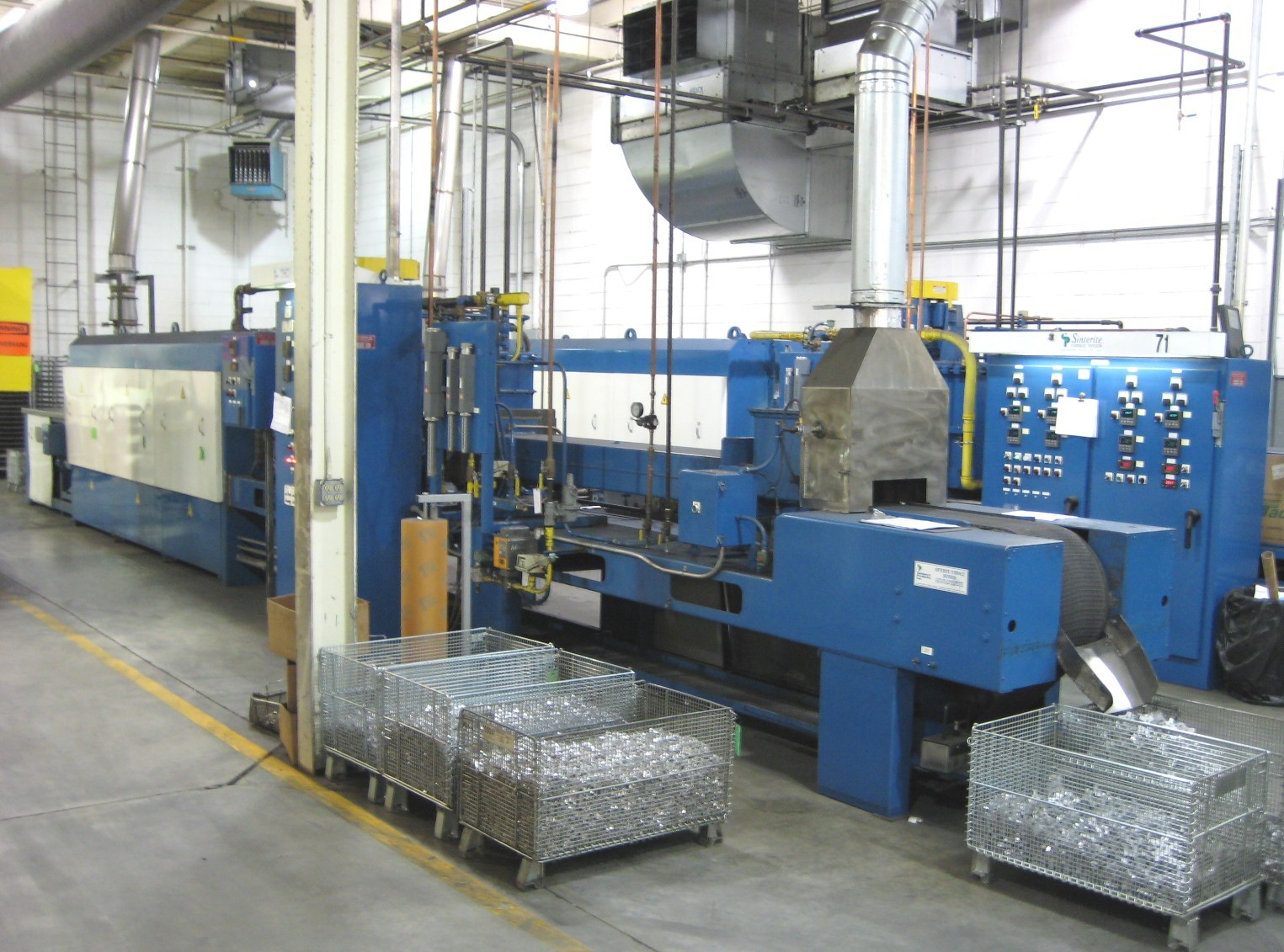

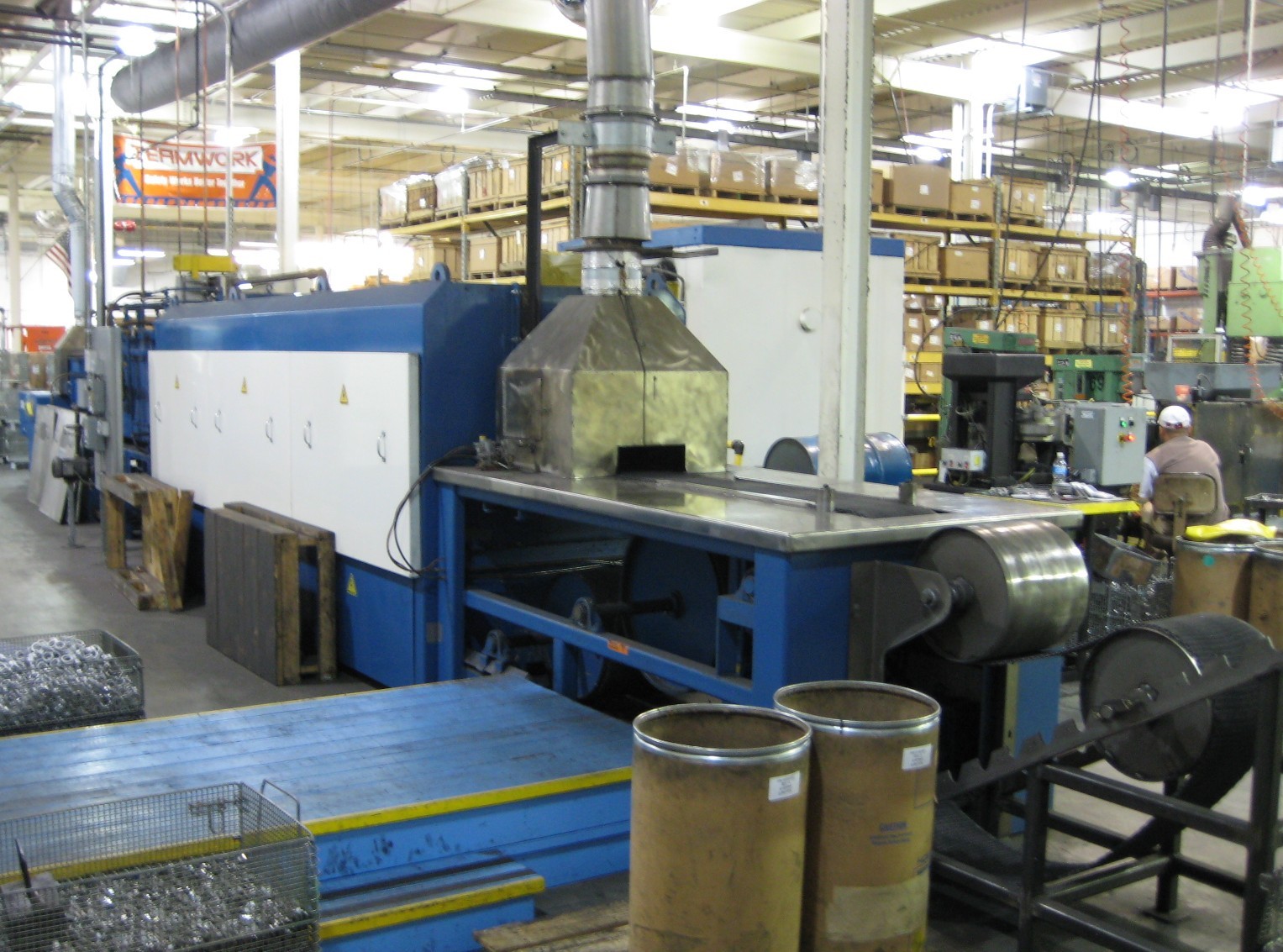

| FURNACE TYPE | CONTINUOUS BELT |
| HEAT TYPE | ELECTRIC |
| MAXIMUM OPERATING TEMPERATURE | 2100 DEGREE F |
| HEAT ZONES | (3) 4' CHAMBERS |
| BELT WIDTH | 12" |
| BELT SPEED | 2.6"/MIN |
| BELT LOADING DENSITY | 15 LB/SQ. FT |
| PART HEIGHT | 4.5" |
| STEEL BELT LEGTH, TOP | 50 FEET |
| PRODUCTION CAPACITY | 195 LB/HR |
| COOLING LENGTH | 234" |
| ELECTRIC OPERATING USAGE (APPROX.) | 65KW |
| ELECTRIC SUPPLY REQUIREMENTS | 480V/108KW/60HZ/175AMPS |
| WATER SUPPLY REQUIREMENTS | 20 GPM @ 8 PSI |
| WATER OPERATING USAGE (APPROX.) | 15 GPM |
| ATMOSPHERE GASES | |
| NITROGEN (MAIN) | 1500 CU. FT/HR |
| ENDO (MAIN) | 1500 CU. FT/HR |
| NITROGEN (REAR CURTAIN) | 250 CU. FT/HR |
| DIMENSIONS APPROXIMATELY | 50' x 7' x 8' |
