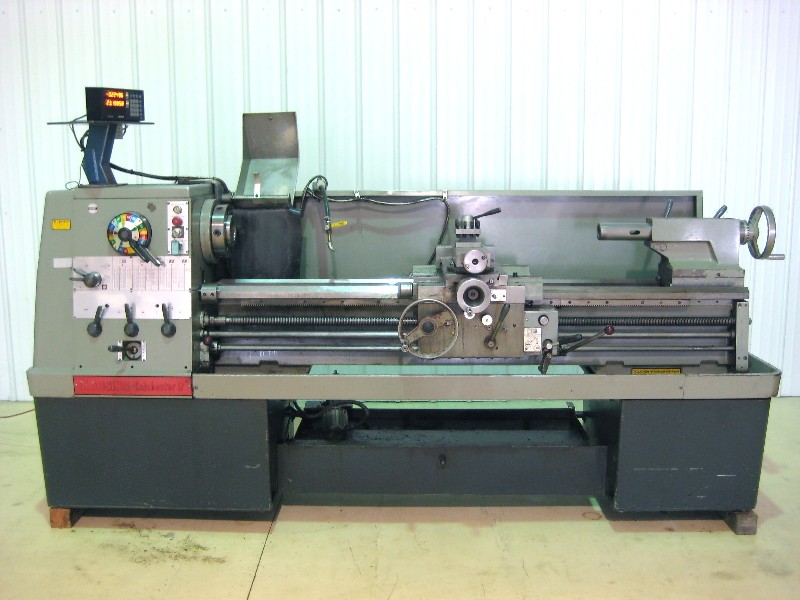

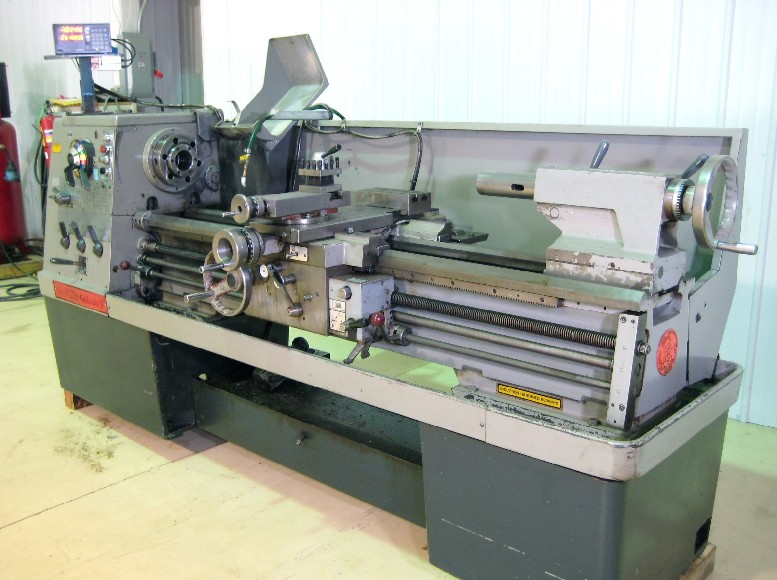

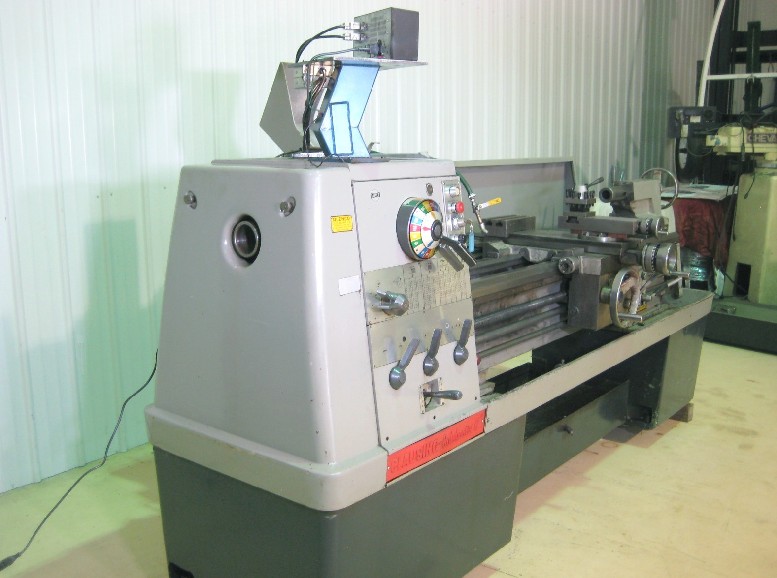

CLAUSING COLCHESTER 17 ENGINE LATHE, 60 in. CENTERS, SONY DIGITAL READOUT, GEARED HEAD, INCH/METRIC, 1983, 25 - 1600 RPM

CLAUSING COLCHESTER 17 ENGINE LATHE, 60 in. CENTERS, SONY DIGITAL READOUT, GEARED HEAD, INCH/METRIC, 1983, 25 - 1600 RPM

Stock Number: 4808


Click to view larger photo

Request A Quote On Our Stock Number: 4808 CLAUSING COLCHESTER 17 ENGINE LATHE, 60 in. CENTERS, SONY DIGITAL READOUT, GEARED HEAD, INCH/METRIC, 1983, 25 - 1600 RPMRequest a quote on stock# 4808
SpecificationDescription
NEW APPROX.1983
SWING OVER BED17"
SWING OVER CROSS SLIDE10.5"
DISTANCE BETWEEN CENTERS60"
SPINDLE BORE3"
SPINDLE NOSED1.8 CAMLOCK
SPINDLE SPEEDS20 - 1600 RPM
SPINDLE MOTOR10 HP
CROSS-SLIDE COMPOUND TRAVEL11"
TOP-SLIDE TRAVEL6"
TAILSTOCK QUILL DIAMETER3"
TAILSTOCK QUILL TAPERNo 5 MORSE
DIMENSIONS, APPROX.100"L x 49"W x 45"H
WEIGHT, APPROX.5500 LBS

Equipped With:

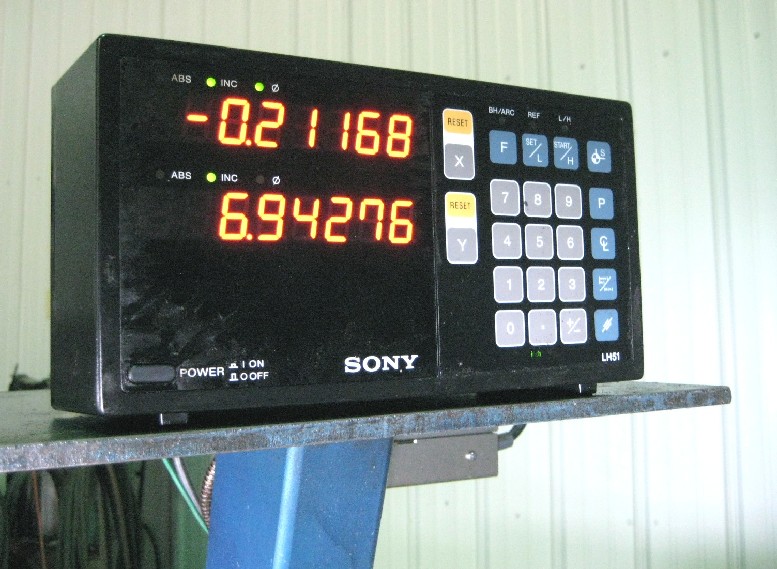

SONY 2-AXIS DIGITAL READOUT,

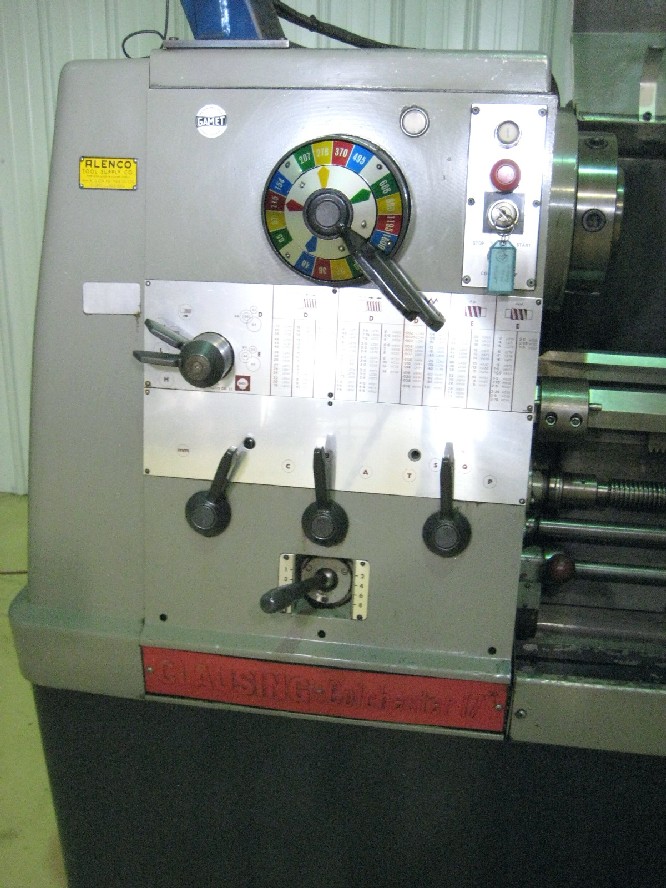

GEARED HEAD (16 SPEEDS),
TOOL POST, CHUCK GUARD,
TAILSTOCK & CHIP GUARD,
INCH/METRIC THREADING,
POWER FEED LONGITUDINAL & CROSS TRAVEL,
TAPER ATTACHMENT,

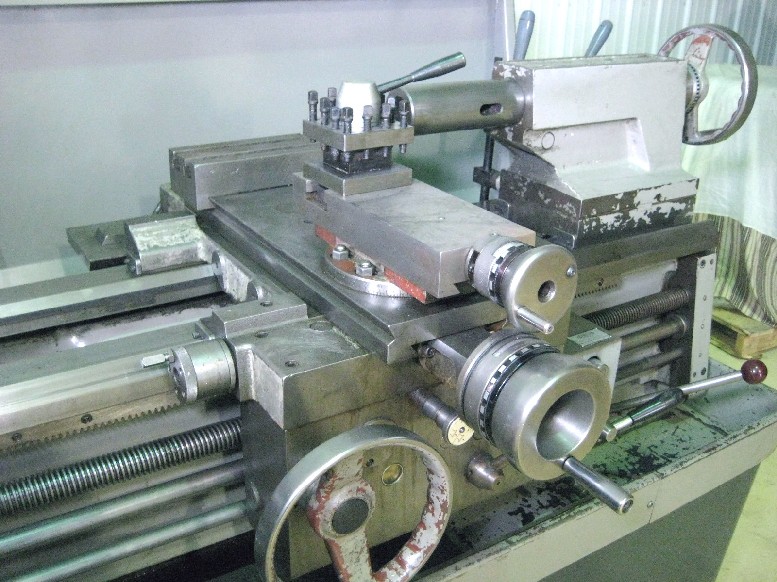

TOP-SLIDE COMPOUND REST FOR TOOL POST,
OPERATING & PARTS MANUAL INCLUDED,
COOLANT PUMP/SYSTEM,
**MADE IN THE USA**
***NOTE: THERE IS NO CHUCK INCLUDED***
