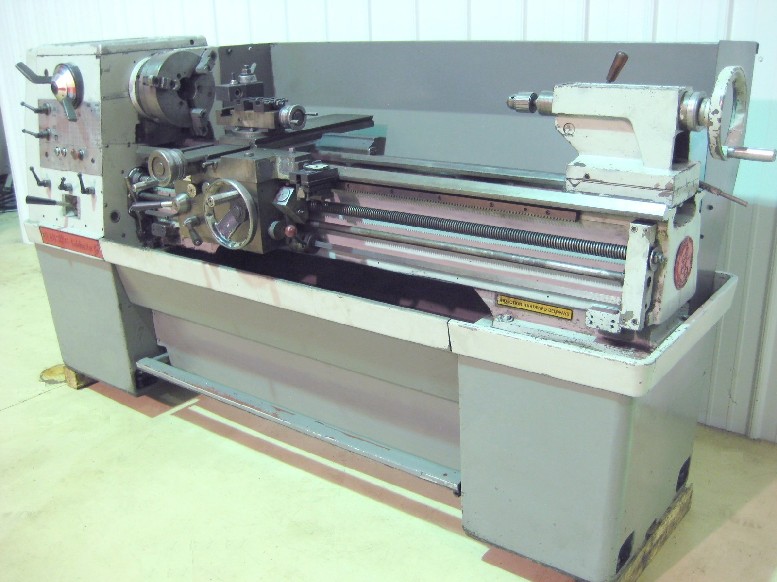

CLAUSING COLCHESTER 15 x 50 8000 SERIES ENGINE LATHE, GEARED HEAD, 10 in. CHUCK, INCH/METRIC, 1980, 25 TO 2000 RPM

CLAUSING COLCHESTER 15 x 50 8000 SERIES ENGINE LATHE, GEARED HEAD, 10 in. CHUCK, INCH/METRIC, 1980, 25 TO 2000 RPM

Stock Number: 4771


Click to view larger photo

Request A Quote On Our Stock Number: 4771 CLAUSING COLCHESTER 15 x 50 8000 SERIES ENGINE LATHE, GEARED HEAD, 10 in. CHUCK, INCH/METRIC, 1980, 25 TO 2000 RPMRequest a quote on stock# 4771
SpecificationDescription
NEW APPROX.1980
SWING OVER BED15.25"
SWING OVER CROSS-SLIDE9-3/8"
SWING IN GAP22-1/8"
DISTANCE BETWEEN CENTERS50" (w/CHUCK)
SPINDLE NOSE6" D1 CAMLOCK
SPINDLE BORE2-1/8"
SPINDLE SPEEDS25 - 2000 RPM
SPINDLE MOTOR7.5 HP
DIMENSIONS, APPROX.96"L x 36"W x 48"H
WEIGHT, APPROX.2600 LBS

Equipped With:

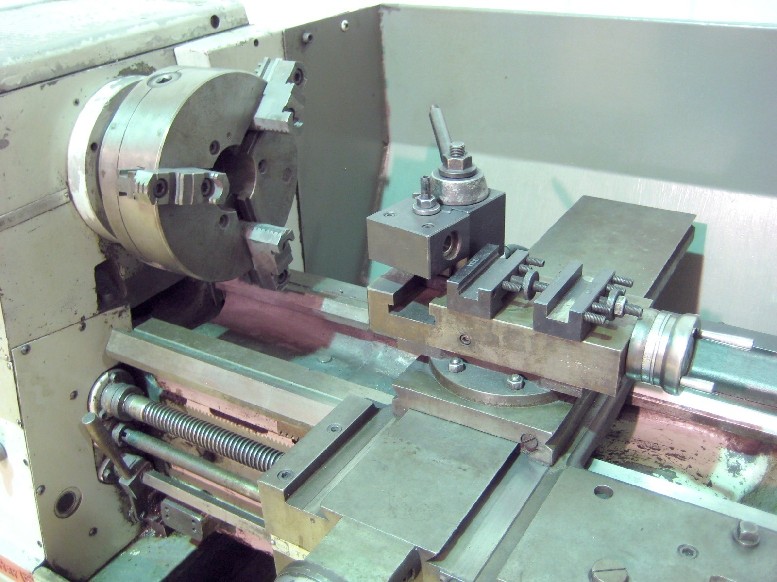

10" 3-JAW CHUCK,
TOOL POST,
ADJUSTABLE TOP-SLIDE FOR TOOL POST,
INCH/METRIC THREADING,

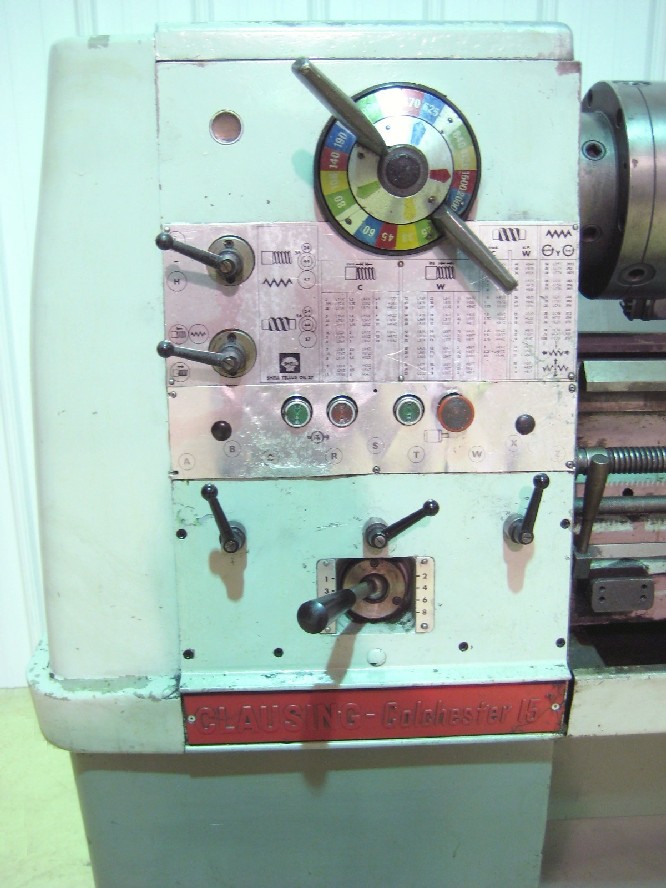

GEARED HEAD,
COOLANT PUMP/SYSTEM,
FOOT OPERATED SPINDLE BRAKE
