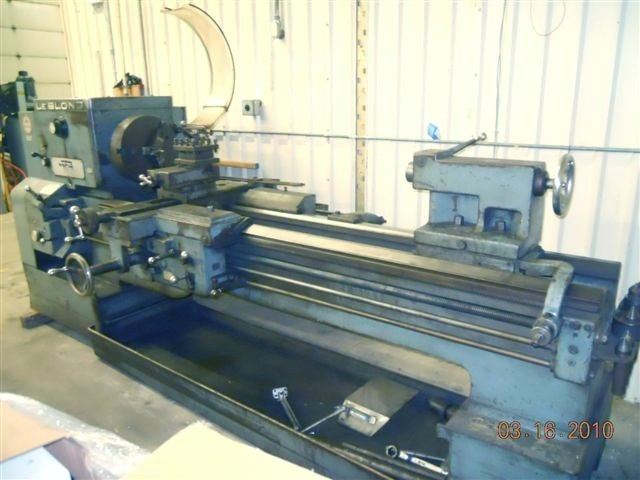

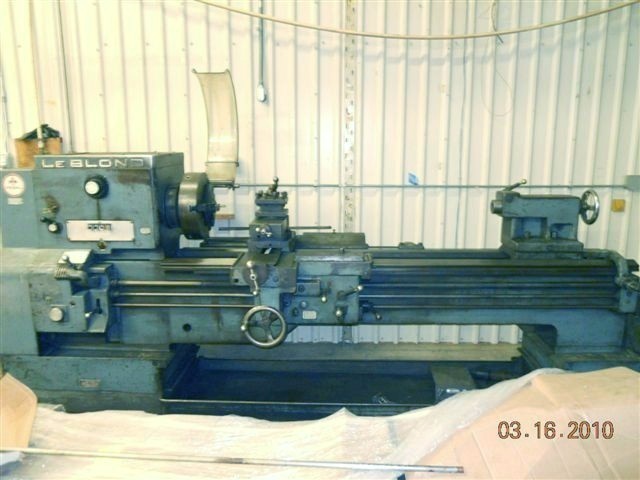

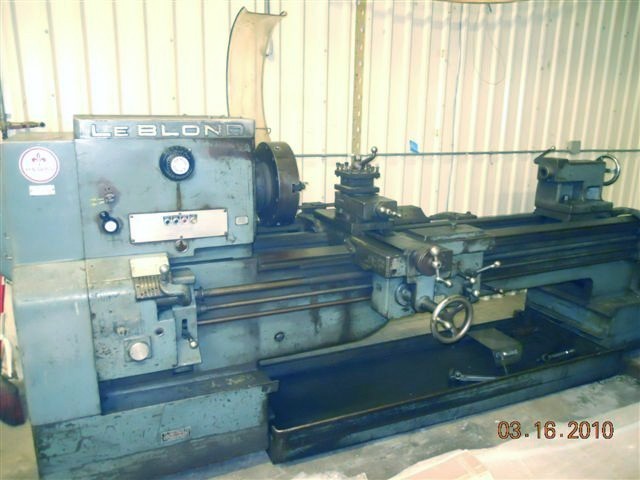

LEBLOND REGAL SERVO SHIFT ENGINE LATHE, 15 in. CHUCK, 72 in. CENTERS, TAILSTOCK, STEADY, TAPER '60 (4636)

LEBLOND REGAL SERVO SHIFT ENGINE LATHE, 15 in. CHUCK, 72 in. CENTERS, TAILSTOCK, STEADY, TAPER '60 (4636)

Stock Number: 4636


Click to view larger photo

Request A Quote On Our Stock Number: 4636 LEBLOND REGAL SERVO SHIFT ENGINE LATHE, 15 in. CHUCK, 72 in. CENTERS, TAILSTOCK, STEADY, TAPER '60 (4636)Request a quote on stock# 4636
SpecificationDescription
NEW APPROX.1960
SWING OVER BED, MAX.26"
SWING OVER COMPOUND REST18.25"
DISTANCE BETWEEN CENTERS72"
SPINDLE BORE2.375"
SPINDLE SPEED RANGE2
SPINDLE SPEED (Low range/High range)18 - 720 / 27 - 1080 RPM
NUMBER OF SPEED CHANGES12
SPINDLE NOSEL-2
SPINDLE MOTOR7.5 HP
MAXIMUM TAPER PER FOOT3.5"
TAILSTOCK SPINDLE TRAVEL8"
TAILSTOCK TAPER#5 MT
STEADY REST CAPACITY1/2" - 7"
WEIGHT (approx)6,535 LBS
DIMENSIONS (approx)130" x 45" x 55"

Equipped With:
15" 3-JAW CHUCK
4 WAY TOOL POST
TAILSTOCK
STEADY REST
TAPER ATTACHMENT
COOLANT SYSTEM
CHIP TRAY
