LATHES: 13 x 36 CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE, 1800 RPM, 2 AXIS DRO, 1968, (4504)

13 x 36 CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE, 1800 RPM, 2 AXIS DRO, 1968, (4504)

Stock Number: 4504

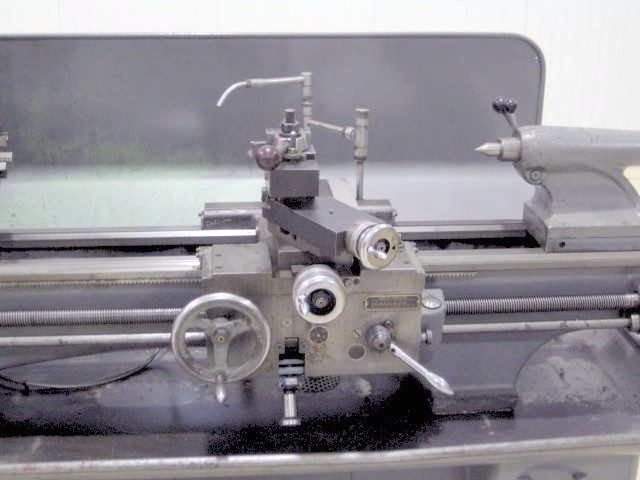

LATHES: 13 x 36 CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE, 1800 RPM, 2 AXIS DRO, 1968, (4504), Click to view larger photo...       LATHES: 13 x 36 CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE, 1800 RPM, 2 AXIS DRO, 1968, (4504), Click to view larger photo...       LATHES: 13 x 36 CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE, 1800 RPM, 2 AXIS DRO, 1968, (4504), Click to view larger photo...       LATHES: 13 x 36 CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE, 1800 RPM, 2 AXIS DRO, 1968, (4504), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4504 LATHES: 13 x 36 CLAUSING COLCHESTER GEARED HEAD ENGINE LATHE, 1800 RPM, 2 AXIS DRO, 1968, (4504)Request a quote on stock# 4504
SpecificationDescription
NEW APPROXIMATELY1968
SWING OVER BED13"
SWING OVER CROSS-SLIDE8"
DISTANCE BETWEEN CENTERS36"
SPINDLE BORE1.625"
SPINDLE SPEEDS (GEARED HEAD)40 - 1800 RPM
MAIN MOTOR3 HP
BED WIDTH OF WAYS11"
TAILSTOCK QUILL DIAMETER1.75"
TAILSTOCK TRAVEL4.5"
TAILSTOCK TAPERNO 4 MORSE
DIMENSIONS APPROXIMATELY72" x 36" x 60"
WEIGHT APPROXIMATELY3000 LBS

Equipped With:
8" 3-JAW CHUCK,
NEWALL TOPAZ 2-AXIS DIGITAL READOUT,
ADDITIONAL INDEXABLE CROSS-SLIDE W/TOOL POST,
COOLANT SYSTEM,
CHIP PAN,
INCH THREADING
