TRUMPF L-4003 CNC LASER, BOSCH CNC, 160 x 80 TABLES, 2600 WATT, PALLET CHGR, '94 (4119)
Stock Number: 4119
Click to view larger photo
Request a quote on stock# 4119
| Specification | Description |
|---|
| YEAR OF MANUFACTURE | 1994 |
| CONTINUOUS RATED OUTPUT | 2600 WATTS |
| MAXIMUM FEEDRATE X & Y AXES | 3300 IPM |
| MAXIMUM WORKPIECE SIZE | 160" x 80" x 3.94" |
| MAXIMUM WORKPIECE THICKNESS | 0.75" |
| MAXIMUM TABLE LOAD CAPACITY | 3,000 LBS |
| TABLE TRAVEL X / Y / Z AXIS | 162" / 81.0" / 3.94" |
| MAXIMUM CUT FEED RATE | 1200 IPM |
| FREQUENCY & DUTY RANGE OUTPUT | 0 - 100% |
| MACHINE DIMENSIONS W/APC | 475" x 244" x 102" |
| MACHINE WEIGHT | 41,000 LBS |
Equipped With:

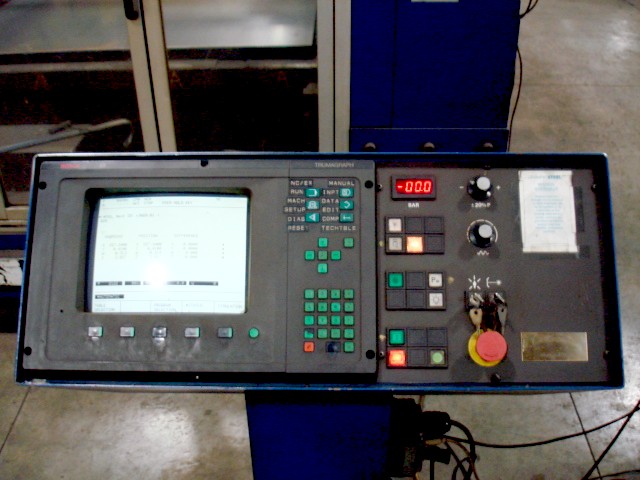

BOSCH 32-BIT CNC CONTROL WITH 9" CRT & RS-232C PORT

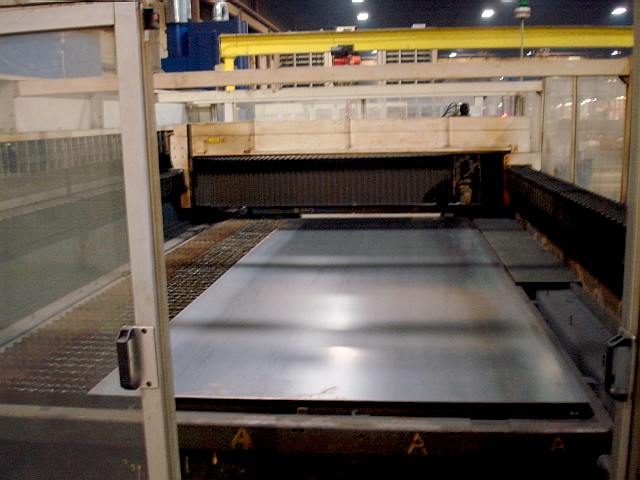

(2) 80" x 160" TABLES WITH AUTO PALLET CHANGER

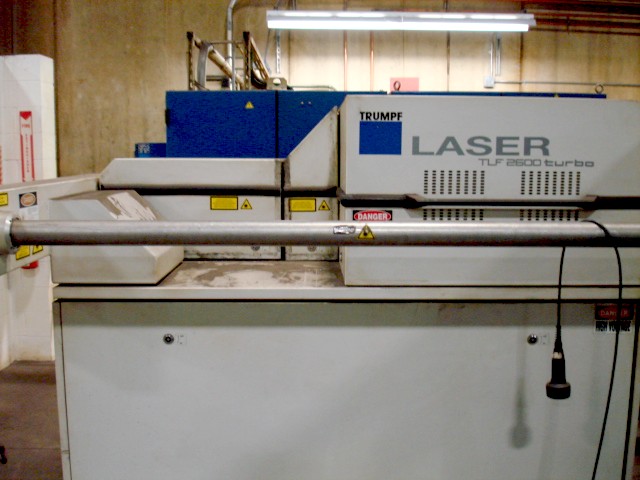

TLF-2600 TURBO LASER RESONATOR (27119 HOURS ON RESONATOR)
FLYING OPTICS (NON-CONTACT), WATER CHILLER SYSTEM
ALL AVAILABLE MANUALS, DOCUMENTATION AND SCHEMATICS

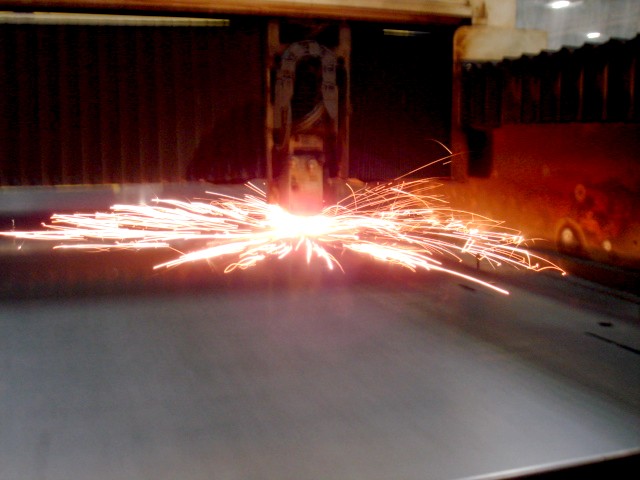

*****IN PLANT CUTTING PARTS & AVAILABLE IMMEDIATELY*****
*****TOTAL MACHINE HOURS SINCE NEW: 72017*****
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
