GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008

SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008

Stock Number: 4673

GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008, Click to view larger photo...       GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008, Click to view larger photo...       GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008, Click to view larger photo...       GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008, Click to view larger photo...       GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008, Click to view larger photo...       GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008, Click to view larger photo...       GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4673 GRINDERS: SUPERTEC G32-100NC CNC UNIVERSAL GRINDER, 13 IN. x 40 IN., 1400 RPM, SWIVEL HEAD, I.D. ATTACHMENT, STEADY REST, 2008Request a quote on stock# 4673
SpecificationDescription
MFG NEW2008
DISTANCE BETWEEN CENTERS40"
SWING OVER TABLE12.6"
MAX. O.D. GRINDING DIAMETER12"
HEIGHT OF CENTERS5.51"
MAX. WEIGHT OF WORK330 LBS
GRINDING WHEEL SIZE16" x 2" x 5"
MAX. GRINDABLE BORE DIAMETER4.33"
GRINDING WHEEL SPEED1390 RPM
WORK SPINDLE SPEED RANGE (INF. VARIABLE)30 - 350 RPM
WORKHEAD SWIVELLING RANGE-45 DEG. to +90 DEG.
TABLE SWIVELLING ANGLE+/- 7 DEGREES
AUTO INCREMENT INFEED0.0001 - 0.04"
MAIN MOTOR7.5 HP
WEIGHT, APPROX.12,820 LBS
DIMENSIONS, APPROX.120"L x 80"W x 70"H

Equipped With:

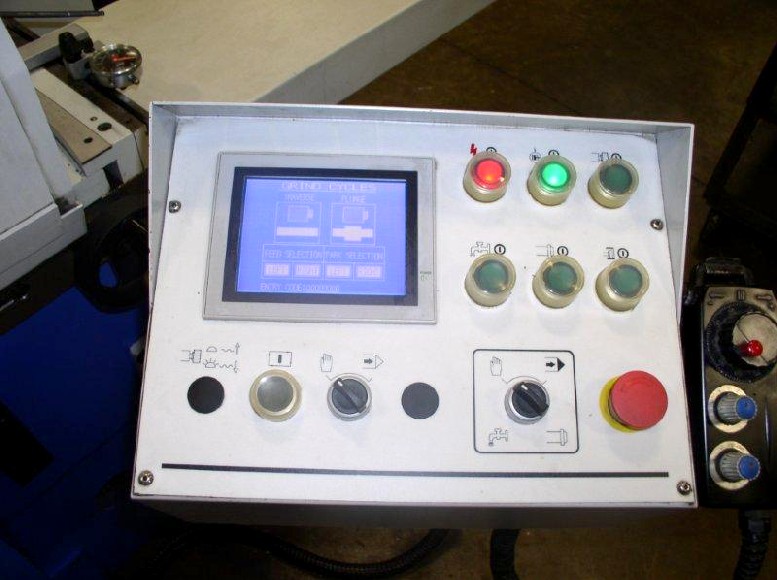

MITSUBISHI PLC CONTROL (TOUCH SCREEN),
HIGH-SPEED INTERNAL GRINDING ATTACHMENT,
TAILSTOCK, DRESSER, BALANCING ARBOR,

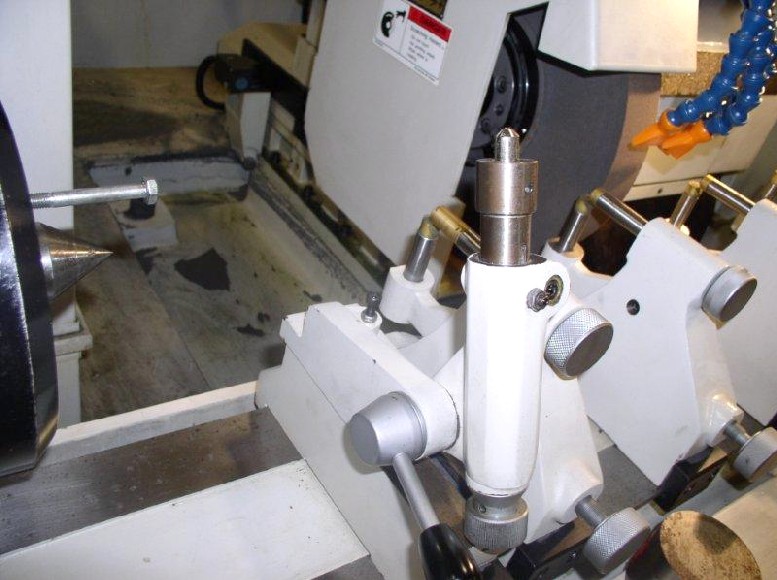

(4) 2 POINT STEADY RESTS,
SWIVELING TABLE DIAL INDICATOR,
AUTOMATIC INFEED,

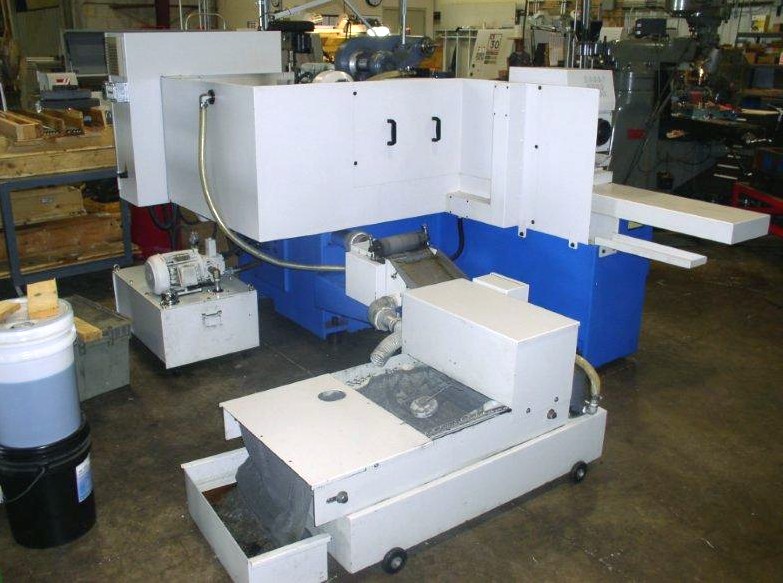

COOLANT FILTRATION SYSTEM,
HYDRAULIC SYSTEM,
FULL ENCLOSURE W/WORK LAMP,
OIL MIST LUBRICATION UNIT,
ALL AVAILABLE ACCESSORIES, SPARE PARTS, MANUALS
***RIGID BOX WAY DESIGN
