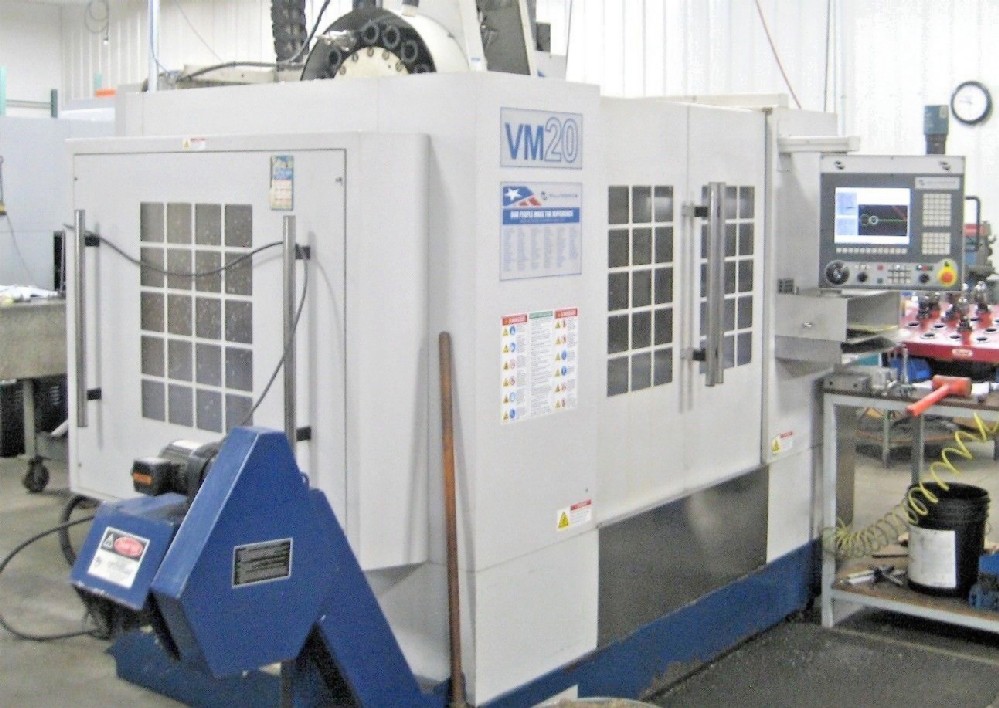

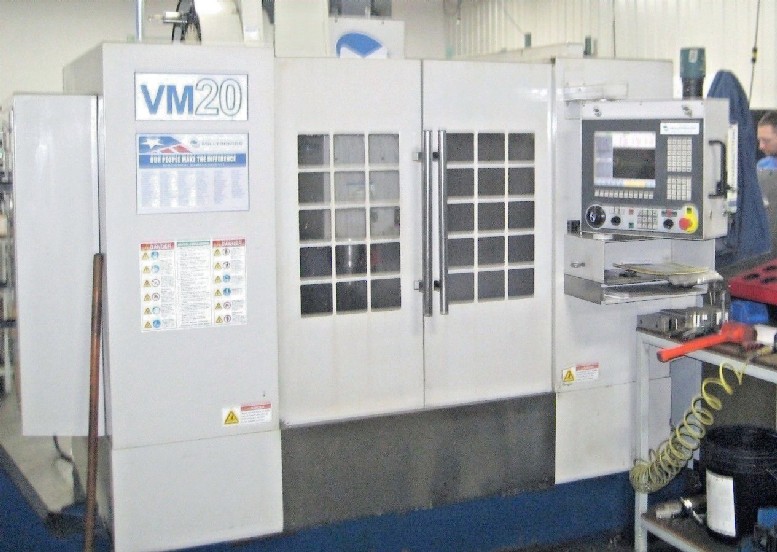

MILLTRONICS VM 20 CNC MILL, 40 x 20 x 26 TRAVELS, COOLANT THRU SPINDLE, 10000 RPM, 24 HP, CHIP CONVEYOR


MILLTRONICS VM 20 CNC MILL, 40 x 20 x 26 TRAVELS, COOLANT THRU SPINDLE, 10000 RPM, 24 HP, CHIP CONVEYOR

Stock Number: 4899



Click to view larger photo

Request A Quote On Our Stock Number: 4899 MILLTRONICS VM 20 CNC MILL, 40 x 20 x 26 TRAVELS, COOLANT THRU SPINDLE, 10000 RPM, 24 HP, CHIP CONVEYORRequest a quote on stock# 4899
SpecificationDescription
DATE OF MFG2008
TABLE SIZE45" x 20"
MAXIMUM TABLE LOAD2500 LBS
X AXIS TRAVEL40"
Y AXIS TRAVEL20"
Z AXIS TRAVEL26"
RAPID TRAVERSE RATE X & Y AXES1000 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS50 - 10000 RPM
SPINDLE MOTOR24 HP
TOOL CHANGER CAPACITY16 STATION
WEIGHT, APPROX.11,400 LBS
DIMENSIONS, APPROX.99"L x 96"W x 105"H

Equipped With:
HIGH SPEED 8200 CNC PC BASED LCD COLOR CONTROL,
USB & RS-232C PORTS INTERFACE NETWORKING DNC,
FULL CONVERSATIONAL PROGRAMMING, 3-D GRAPHICS,
COOLANT THROUGH SPINDLE SYSTEM,
WITH OPTIONAL EXTENDED X-AXIS (40") & LONGER TABLE,
WITH OPTIONAL HIGH-TORQUE 24 HP SPINDLE,
CHIP CONVEYOR (SIDE-MOUNT),
SD MEMORY CARD & USB SLOT, FLOPPY DISK DRIVE,
FANUC G-CODE COMPATIBLE,
SIDE-MOUNT SWING-ARM AUTO TOOL CHANGER (16 TOOL),

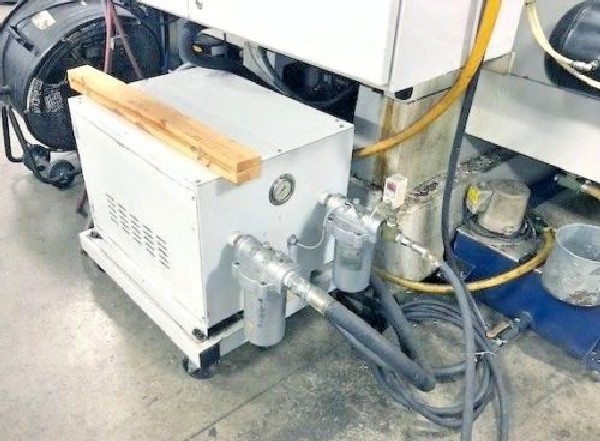

COOLANT SYSTEM w/MOBILE TANK w/PUMP,
FULLY ENCLOSED GUARDING,
**MADE IN THE USA**
***VIDEO AVAILABLE UPON REQUEST***
