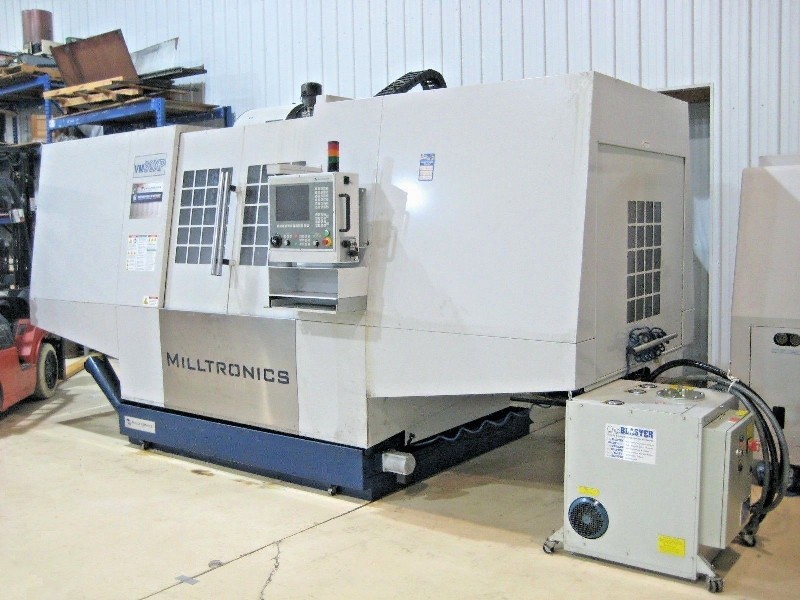

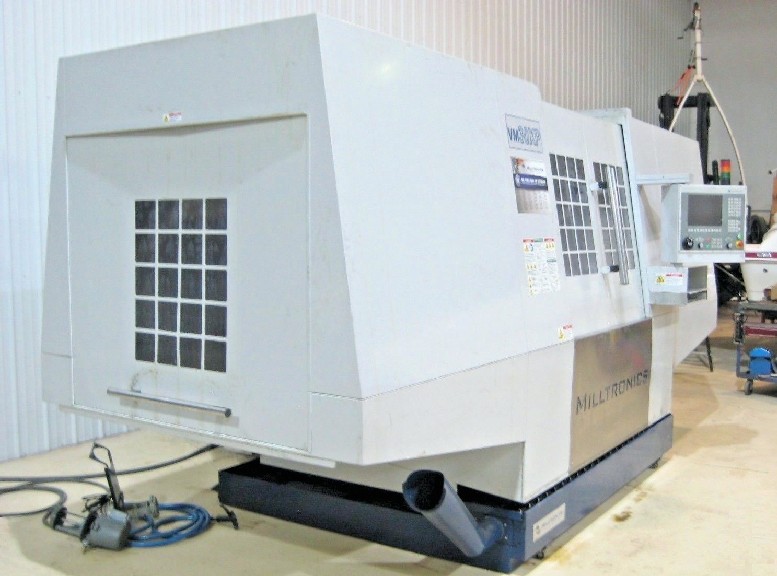

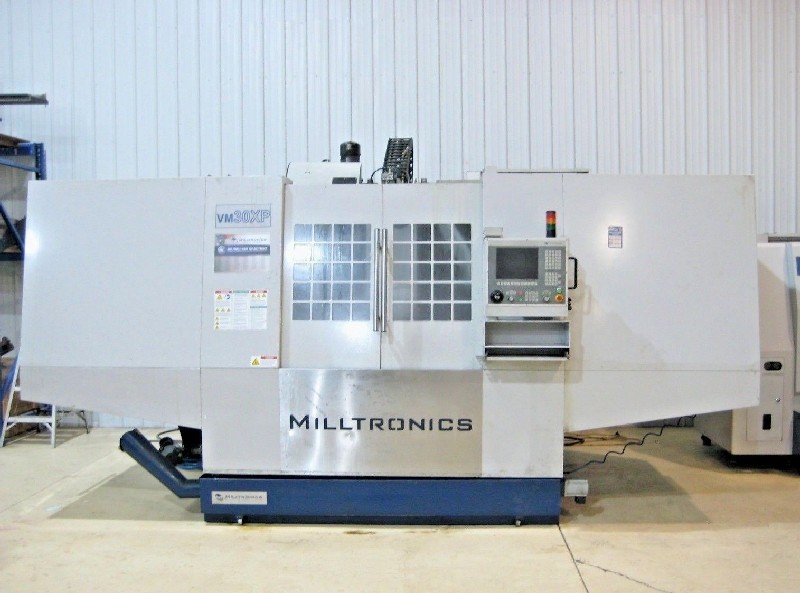

MILLTRONICS VM 30 XP CNC MILL, 60 x 30 x 24 TRAVELS, CAT 50, COOLANT THRU SPINDLE CHIP BLASTER, 8200 CONTROL, 2014


MILLTRONICS VM 30 XP CNC MILL, 60 x 30 x 24 TRAVELS, CAT 50, COOLANT THRU SPINDLE CHIP BLASTER, 8200 CONTROL, 2014

Stock Number: 4897



Click to view larger photo

Request A Quote On Our Stock Number: 4897 MILLTRONICS VM 30 XP CNC MILL, 60 x 30 x 24 TRAVELS, CAT 50, COOLANT THRU SPINDLE CHIP BLASTER, 8200 CONTROL, 2014Request a quote on stock# 4897
SpecificationDescription
DATE OF MFG2014
TABLE SIZE66" x 26"
MAXIMUM TABLE LOAD5000 LBS
X AXIS TRAVEL60"
Y AXIS TRAVEL30"
Z AXIS TRAVEL24"
RAPID TRAVERSE RATE X & Y AXES1000 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS50 - 4000 RPM
SPINDLE MOTOR35 HP
TOOL CHANGER CAPACITY32 STATION
WEIGHT, APPROX.23,000 LBS
DIMENSIONS, APPROX.148" x 102" x 112" H

Equipped With:

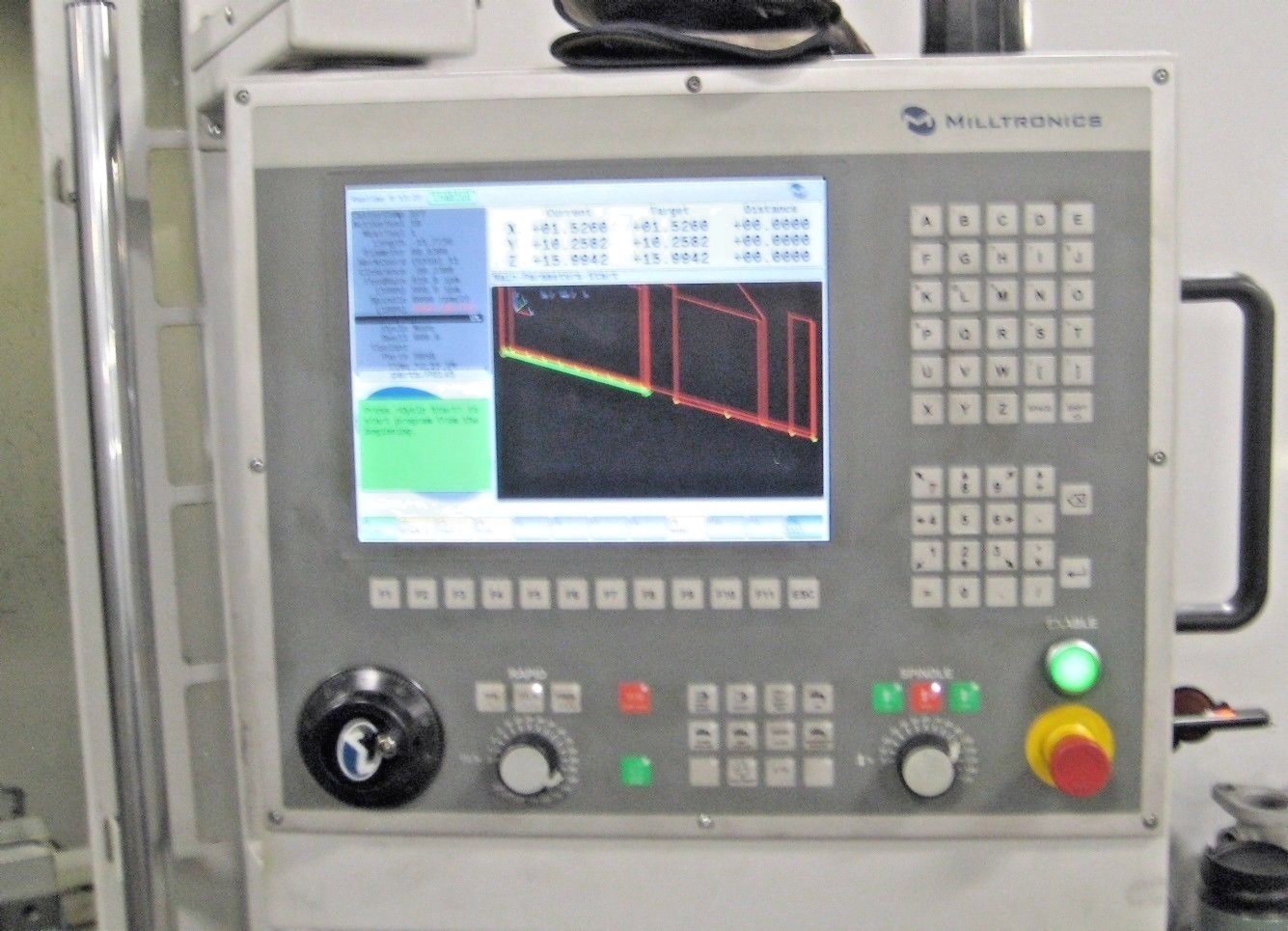

HIGH SPEED 8200 CNC PC BASED COLOR LCD CONTROL,
USB & RS-232C PORTS INTERFACE NETWORKING DNC,
FULL CONVERSATIONAL PROGRAMMING, 3-D GRAPHICS,
COOLANT THROUGH SPINDLE (CHIP BLASTER UNIT),
WITH OPTIONAL HIGH-TORQUE 35 HP SPINDLE,
CHIP WASH-DOWN FEATURE FOR WAY COVERS,
CHIP REMOVAL AUGER, AIR-BLAST HOSE,
1 GB PROGRAM STORAGE MEMORY,
SIDE-MOUNT SWING-ARM AUTO TOOL CHANGER (32 TOOL),
FANUC G-CODE COMPATIBLE,
USER DEFINABLE CUSTOM MACROS,
COOLANT SYSTEM w/MOBILE TANK & (2) PUMPS,
FULLY ENCLOSED GUARDING,
**MADE IN THE USA**
***VIDEO AVAILABLE UPON REQUEST***
