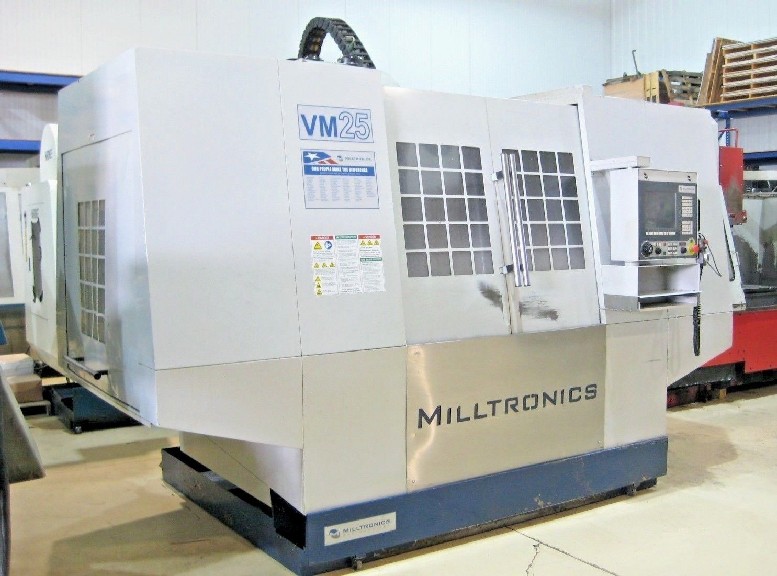

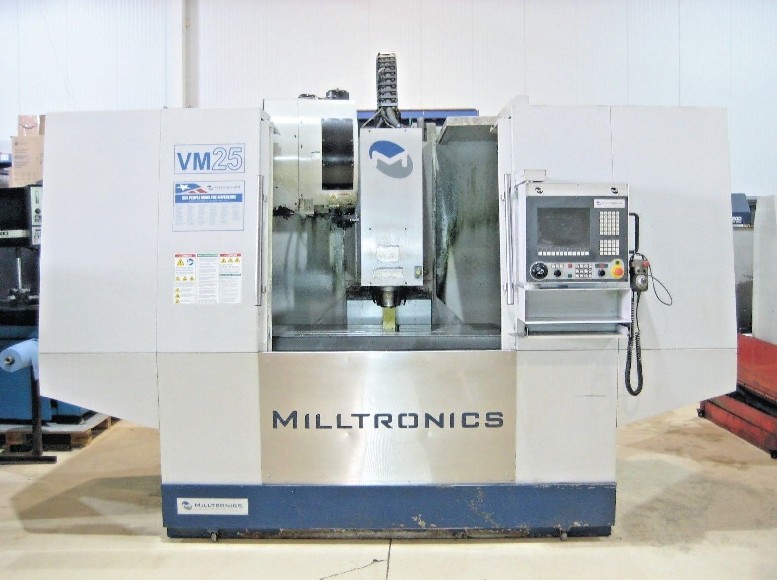

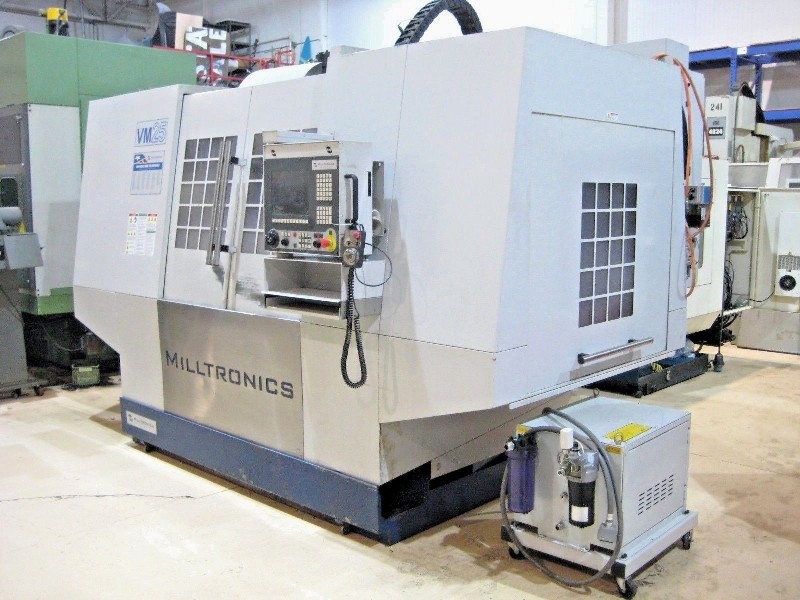

MILLTRONICS VM 25 CNC MILL, 50 x 25 x 24 TRAVELS, COOLANT THRU SPINDLE, 35 HP, 8000 RPM, 8200 CONTROL


MILLTRONICS VM 25 CNC MILL, 50 x 25 x 24 TRAVELS, COOLANT THRU SPINDLE, 35 HP, 8000 RPM, 8200 CONTROL

Stock Number: 4896



Click to view larger photo

Request A Quote On Our Stock Number: 4896 MILLTRONICS VM 25 CNC MILL, 50 x 25 x 24 TRAVELS, COOLANT THRU SPINDLE, 35 HP, 8000 RPM, 8200 CONTROLRequest a quote on stock# 4896
SpecificationDescription
DATE OF MFG2011
TABLE SIZE56" x 24"
MAXIMUM TABLE LOAD3500 LBS
X AXIS TRAVEL50"
Y AXIS TRAVEL25"
Z AXIS TRAVEL24"
RAPID TRAVERSE RATE X & Y AXES1000 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS50 - 8000 RPM
SPINDLE MOTOR35 HP
TOOL CHANGER CAPACITY24 STATION
WEIGHT, APPROX.19,700 LBS
DIMENSIONS, APPROX.144" x 102" x 116" H

Equipped With:

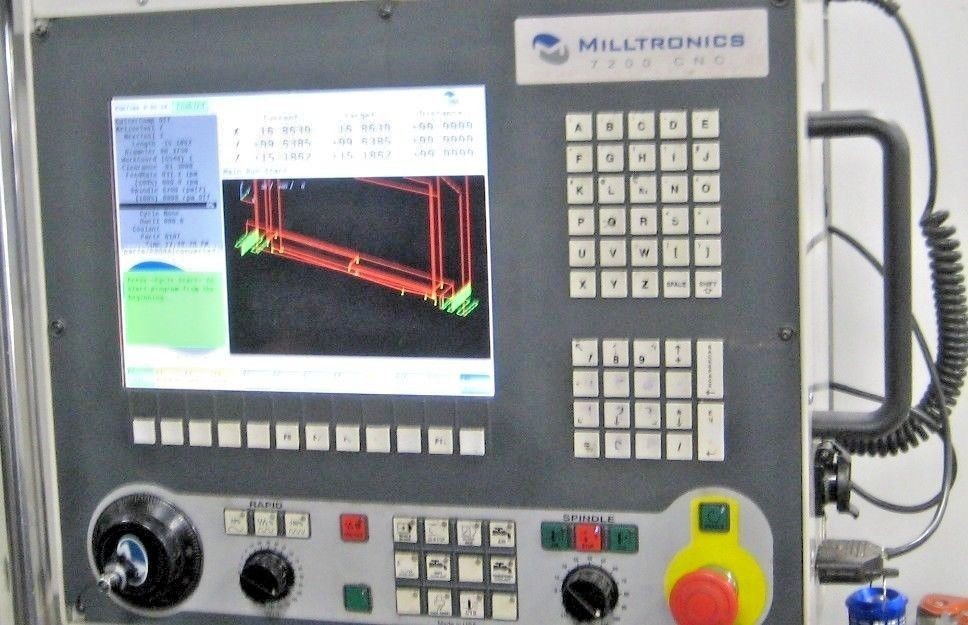

HIGH SPEED 8200 CNC PC BASED LCD COLOR CONTROL,
USB & RS-232C PORTS INTERFACE NETWORKING DNC,
FULL CONVERSATIONAL PROGRAMMING, 3-D GRAPHICS,
COOLANT THROUGH SPINDLE (PARKER COOLANT-THRU)
WITH OPTIONAL HIGH-TORQUE 35 HP SPINDLE,
REMOVABLE CHIP DRAWERS WITHIN PAN,
FANUC G-CODE COMPATIBLE, FLOPPY DRIVE,
REMOTE JOG HANDLE/WHEEL,
FANUC G-CODE COMPATIBLE,
SIDE-MOUNT SWING-ARM AUTO TOOL CHANGER (24 TOOL),
COOLANT SYSTEM w/MOBILE TANK w/PUMP,
FULLY ENCLOSED GUARDING,
**MADE IN THE USA**
***VIDEO AVAILABLE UPON REQUEST***
