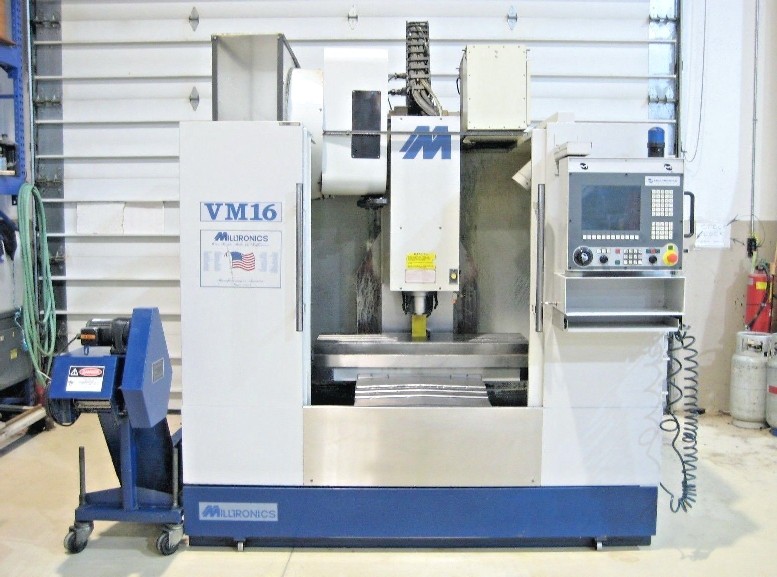

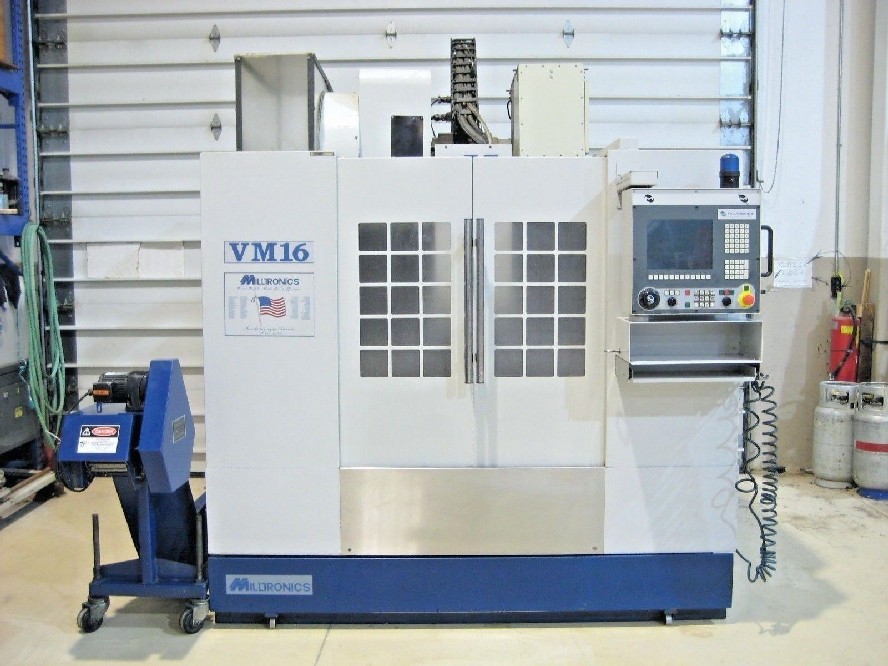

MILLTRONICS VM 16 CNC MILL, 30 x 16 x 26 TRAVELS, COOLANT THRU SPINDLE, 24 HP, 8000 RPM, 24 TOOLS, CHIP CONVEYOR, 8200


MILLTRONICS VM 16 CNC MILL, 30 x 16 x 26 TRAVELS, COOLANT THRU SPINDLE, 24 HP, 8000 RPM, 24 TOOLS, CHIP CONVEYOR, 8200

Stock Number: 4895



Click to view larger photo

Request A Quote On Our Stock Number: 4895 MILLTRONICS VM 16 CNC MILL, 30 x 16 x 26 TRAVELS, COOLANT THRU SPINDLE, 24 HP, 8000 RPM, 24 TOOLS, CHIP CONVEYOR, 8200Request a quote on stock# 4895
SpecificationDescription
DATE OF MFG2007
TABLE SIZE45" x 16"
MAXIMUM TABLE LOAD1500 LBS
X AXIS TRAVEL30"
Y AXIS TRAVEL16"
Z AXIS TRAVEL (w/EXTENDED TRAVEL)26"
RAPID TRAVERSE RATE X & Y AXES1000 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS50 - 8000 RPM
SPINDLE MOTOR24 HP
TOOL CHANGER CAPACITY24 STATION SIDE-MOUNT
WEIGHT, APPROX.10,000 LBS
DIMENSIONS, APPROX.93"L x 93"W x 110"H

Equipped With:

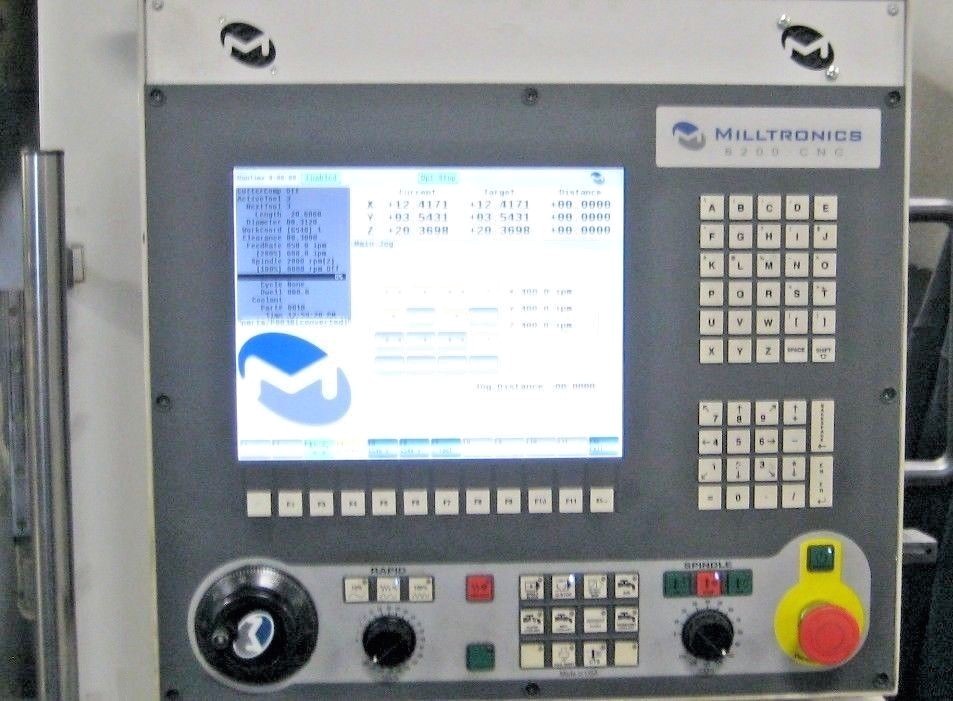

HIGH SPEED 8200 CNC PC BASED LCD COLOR CONTROL,
USB & RS-232C PORTS INTERFACE NETWORKING,
FULL CONVERSATIONAL PROGRAMMING, 3-D GRAPHICS,
COOLANT THROUGH SPINDLE (HIGH PRESSURE UNIT),
WITH OPTIONAL HIGH-TORQUE 24 HP SPINDLE,

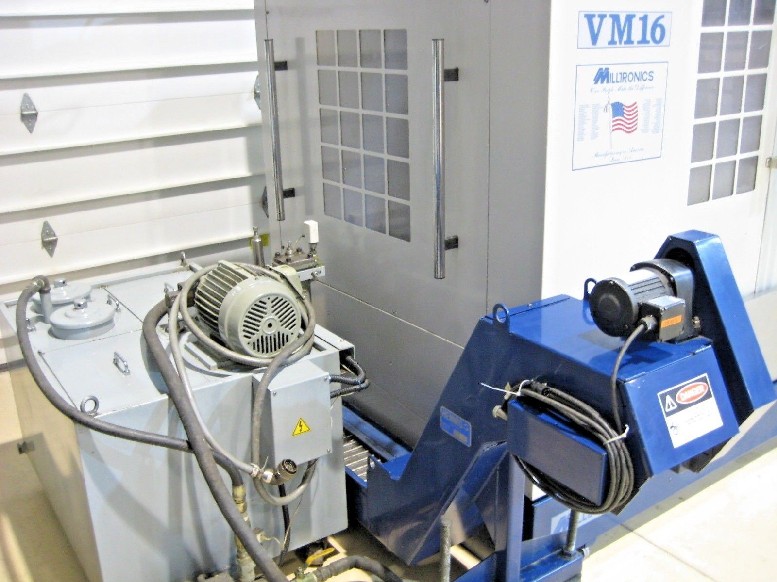

CHIP CONVEYOR (SIDE-MOUNT),
EXTENDED Z-AXIS TRAVEL COLUMN,
PROGRAMMABLE AIR-BLAST,
CHIP WASH-DOWN FEATURE FOR WAY COVERS,
MIST BUSTER AIR CLEANER/FILTER,
SD MEMORY CARD & USB SLOT, FLOPPY DISK DRIVE,
FastCam 2 CU-33, FANUC G-CODE COMPATIBLE,
SIDE-MOUNT SWING-ARM AUTO TOOL CHANGER (24 TOOL),
COOLANT SYSTEM w/MOBILE TANK & (2) PUMPS,
FULLY ENCLOSED GUARDING,
**MADE IN THE USA**
***VIDEO AVAILABLE UPON REQUEST***
