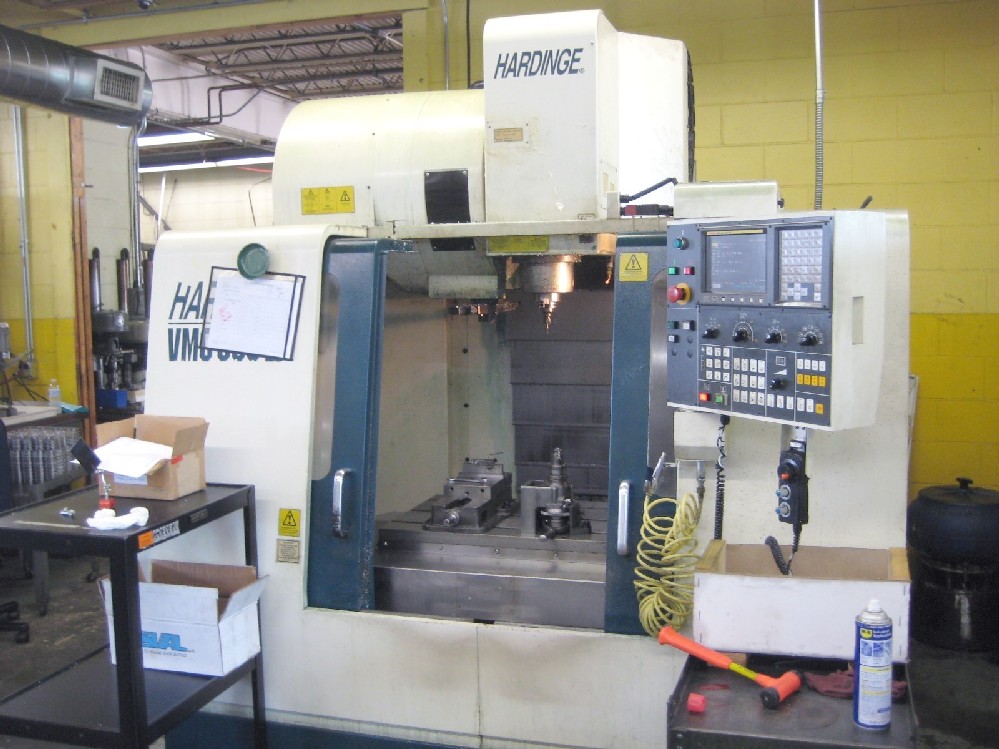

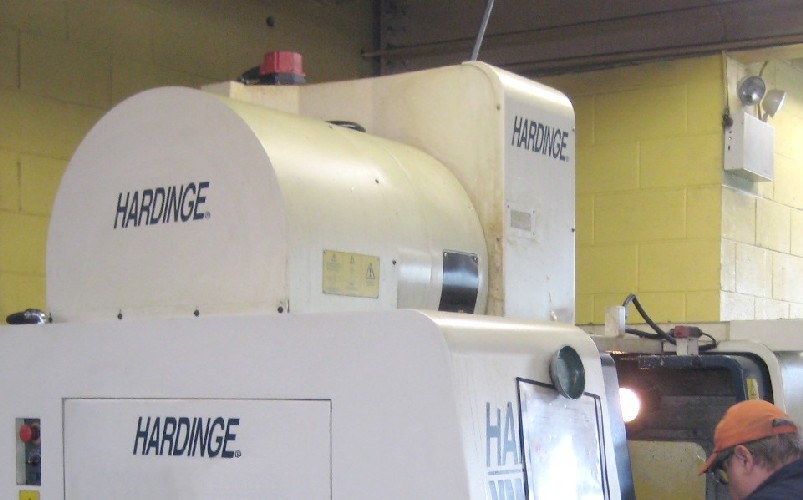

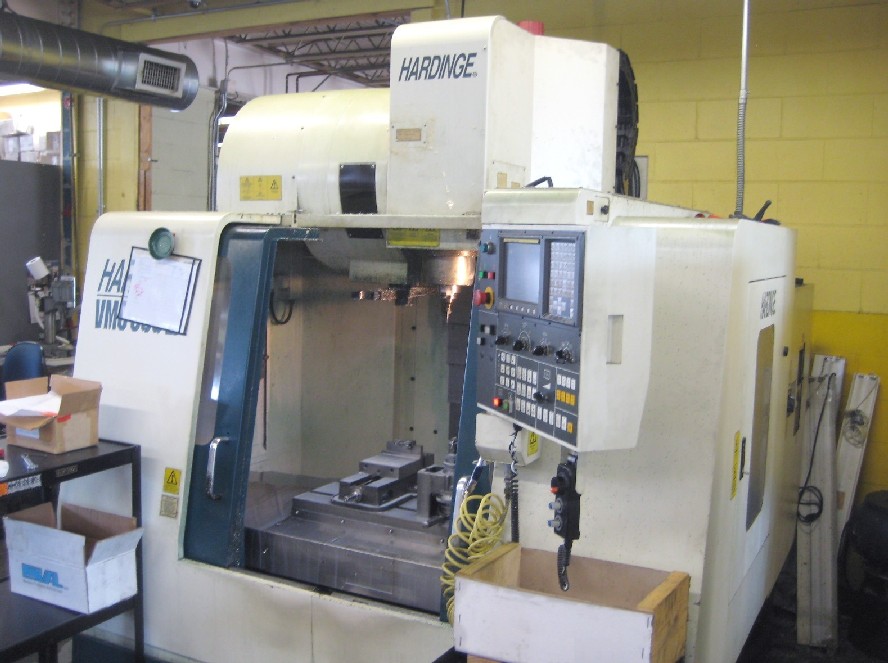

HARDINGE VMC-600 II CNC MILL, 24 x 20 x 20 TRAVEL, 8000 RPM, SIDE MOUNT TOOL CHANGER, CAT 40, FANUC 0i-M, 1181 ipm RAPID


HARDINGE VMC-600 II CNC MILL, 24 x 20 x 20 TRAVEL, 8000 RPM, SIDE MOUNT TOOL CHANGER, CAT 40, FANUC 0i-M, 1181 ipm RAPID

Stock Number: 4893



Click to view larger photo

Request A Quote On Our Stock Number: 4893 HARDINGE VMC-600 II CNC MILL, 24 x 20 x 20 TRAVEL, 8000 RPM, SIDE MOUNT TOOL CHANGER, CAT 40, FANUC 0i-M, 1181 ipm RAPIDRequest a quote on stock# 4893
SpecificationDescription
MFG DATE2003

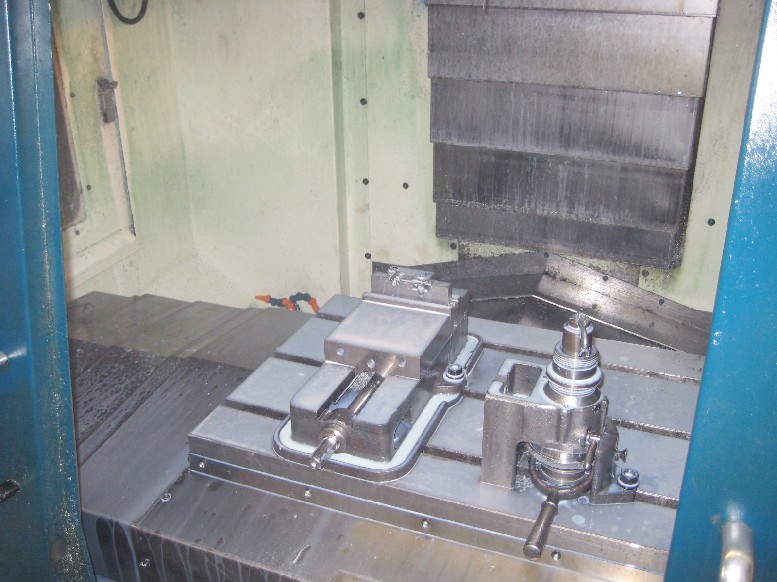

TABLE SIZE29.5" x 20"
MAXIMUM TABLE LOAD1540 LBS
SPINDLE NOSE TO TABLE TOP4.1" - 26.1"
X AXIS TRAVEL23.6"
Y AXIS TRAVEL20.1"
Z AXIS TRAVEL20.1"
SPINDLE SPEED RANGE0 - 8000 RPM
RAPID TRAVERSE RATE X, Y & Z AXES1181 IPM
CUTTING FEED RATE0.1 - 590 IPM
SPINDLE TAPERCAT 40
SPINDLE MOTOR17.3 HP
TOOL CHANGER CAPACITY, SIDE-MOUNT24 STATIONS
TOOL-CHANGE TIME2.5 SECONDS
MAXIMUM TOOL WEIGHT13.2 LBS
WEIGHT, APPROX.10,000 LBS
DIMENSIONS, APPROX.86"L x 93"W x 101"H

Equipped With:

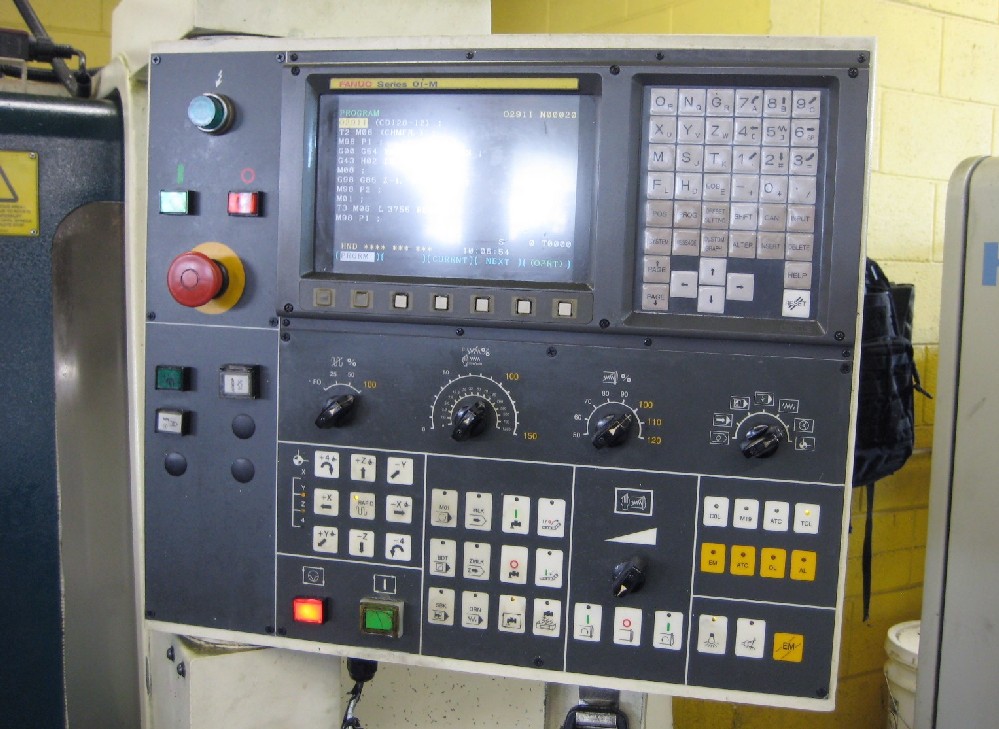

FANUC Oi-M CNC CONTROL w/COLOR LCD DISPLAY,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
w/LOOKAHEAD FOR HIGH SPEED MACHINING,
REMOTE JOG HANDLE, PRE-WIRED FOR 4TH AXIS,

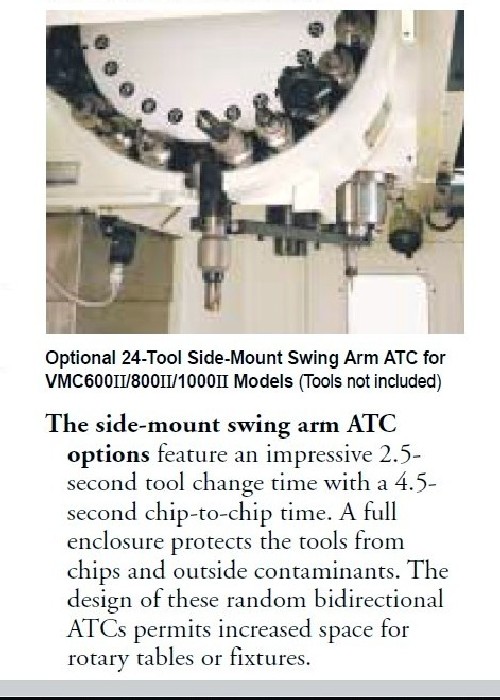

w/SIDE-MOUNT SWING ARM TOOL CHANGER OPTION,
SURROUND TOOL COOLANT w/5 ADJ. SPINDLE PORTS,
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS,
***VIDEO AVAILABLE UPON REQUEST***
