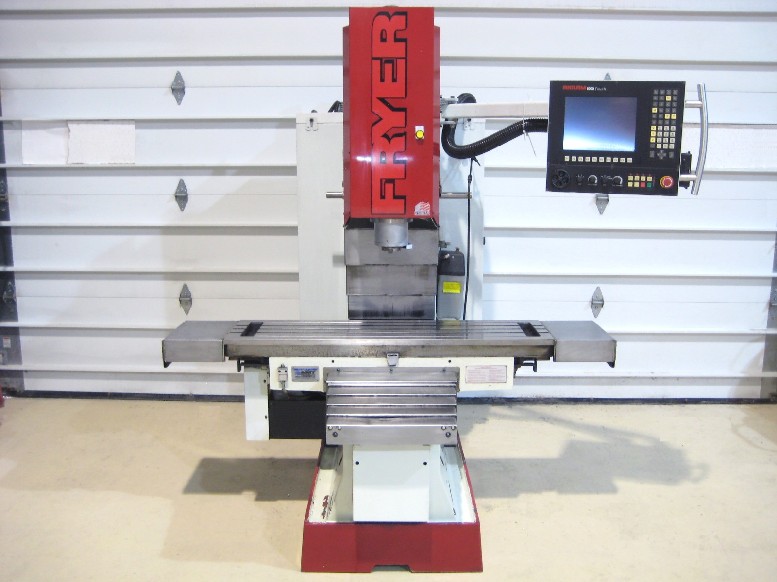

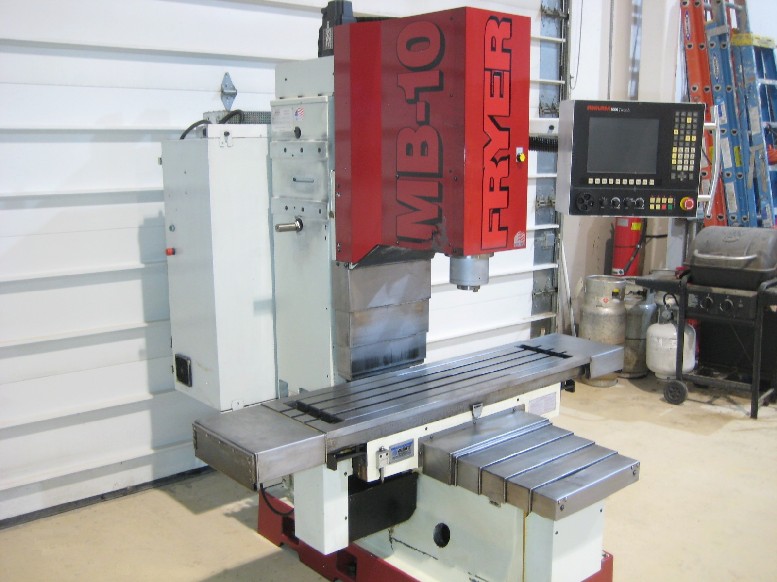

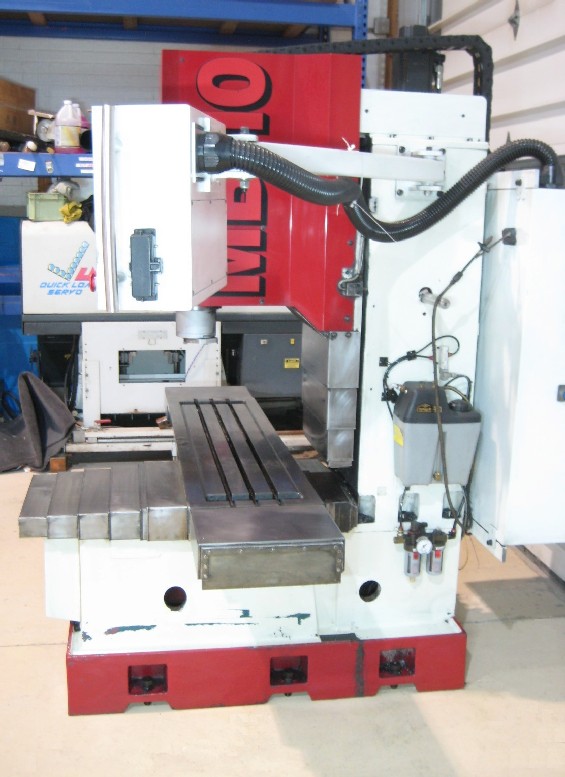

FRYER MB-10 R CNC BED MILL, 50 in TABLE, 32 x 17 x 19 TRAVELS, 12 HP, CAT 40, 4th AXIS DRIVE, 6000 RPM, USB & ETHERNET
Stock Number: 4882
Click to view larger photo
Request a quote on stock# 4882
| Specification | Description |
|---|
| MFG DATE / INSTALLED NEW | 2005 / 2006 |

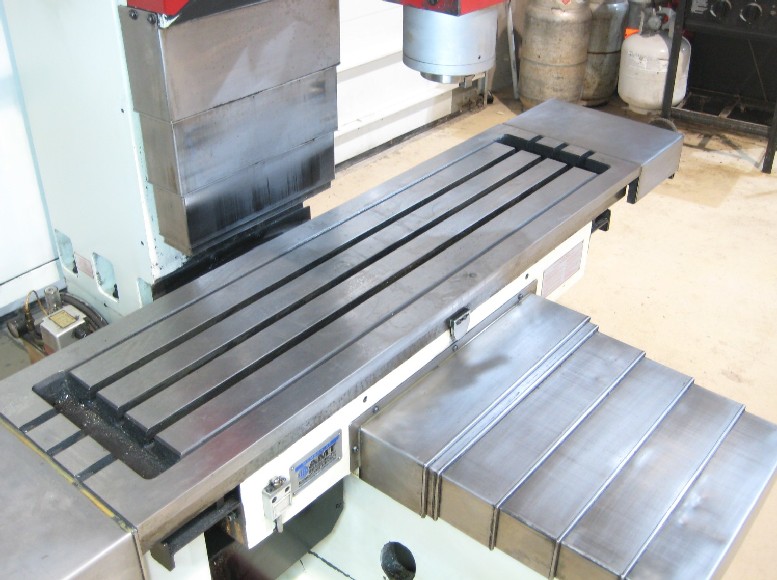

| TABLE SIZE | 50" x 14" |
| MAXIMUM TABLE LOAD | 2000 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 23" |
| X AXIS TRAVEL | 32" |
| Y AXIS TRAVEL | 17" |
| Z AXIS TRAVEL | 19" |
| SPINDLE CENTER TO COLUMN | 18" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 6000 RPM |
| SPINDLE MOTOR | 12 HP |
| SPINDLE CENTER TO COLUMN | 17.7" |
| CUTTING FEED RATE | 400 IPM |
| DIMENSIONS, APPROX. | 70"L x 76"W x 85"H |
| WEIGHT, APPROX. | 6,000 LBS |
Equipped With:

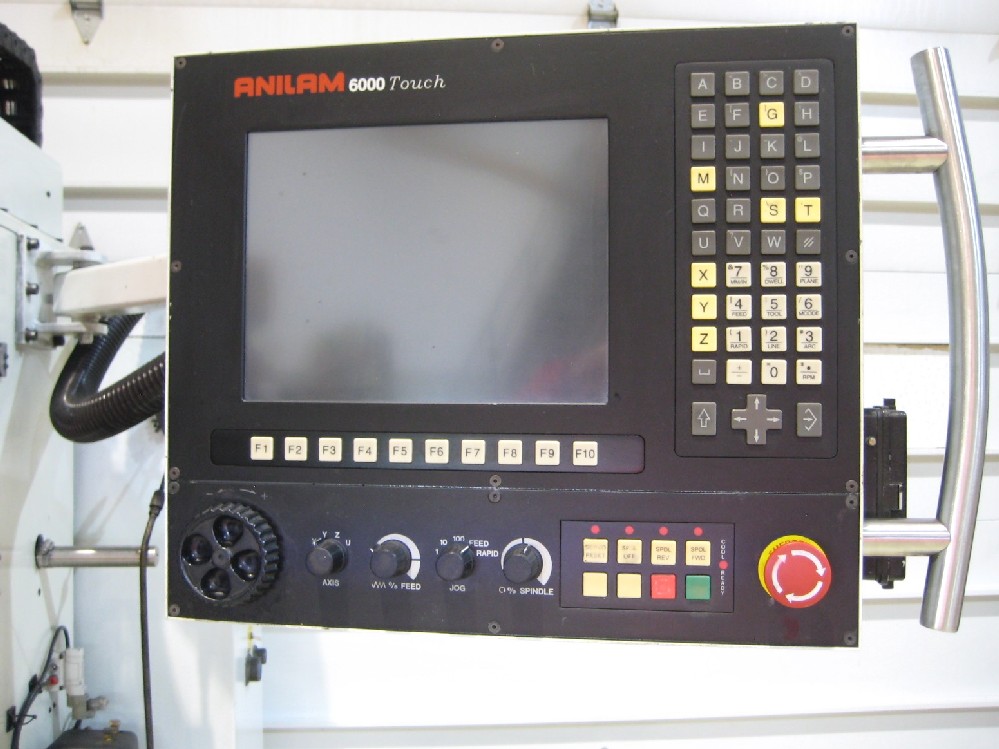

ANILAM 6000 Touch CNC CONTROL w/COLOR MONITOR,
CONVERSATIONAL PROGRAMMING w/GRAPHICS,
USB PORT INTERFACE & ETHERNET FOR DNC OPERATION,
4th AXIS ROTARY DRIVE-CARD OPTION WITH WIRING,
RIGID TAPPING, JOG HANDLE/WHEEL,
TRICO SPRAY-MASTER COOLANT SYSYTEM,
BOX WAY CONSTRUCTION, ALL AVAILABLE MANUALS,
AUTOMATIC OILER SYSTEM,
AUTOMATIC DRAWBAR, MADE IN THE USA,

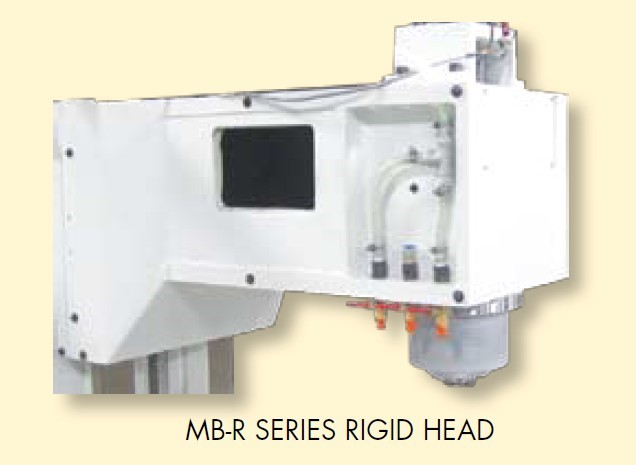

-R- IS FOR THE RIGID SPINDLE HEAD OPTION BED MILL,
***VIDEO AVAILABLE UPON REQUEST***
