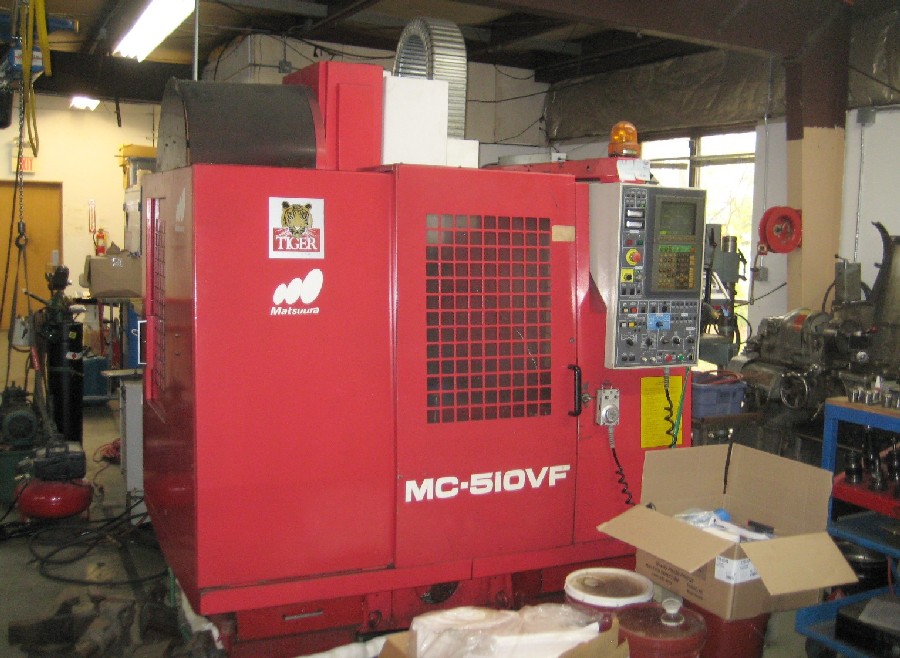

MATSUURA MC-510 VF, 20 x 14 x 18 TRAVELS, 15000 RPM, 40 TAPER, SIDE MOUNT TOOL CHANGER, CHILLER, YASNAC i80M


MATSUURA MC-510 VF, 20 x 14 x 18 TRAVELS, 15000 RPM, 40 TAPER, SIDE MOUNT TOOL CHANGER, CHILLER, YASNAC i80M

Stock Number: 4872



Click to view larger photo

Request A Quote On Our Stock Number: 4872 MATSUURA MC-510 VF, 20 x 14 x 18 TRAVELS, 15000 RPM, 40 TAPER, SIDE MOUNT TOOL CHANGER, CHILLER, YASNAC i80MRequest a quote on stock# 4872
SpecificationDescription
MANUFACTURE DATE1992

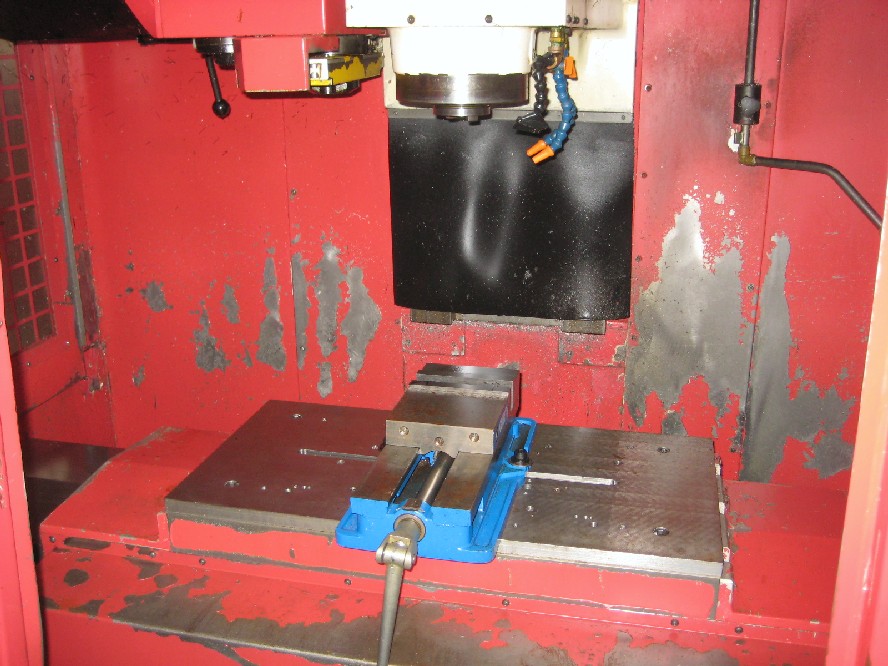

TABLE SIZE15" x 30"
MAXIMUM TABLE LOAD880 LBS
SPINDLE NOSE TO TABLE TOP6"- 24"
X AXIS TRAVEL20"
Y AXIS TRAVEL14.1"
Z AXIS TRAVEL18.1"
RAPID TRAVERSE RATE X, Y, Z AXES944 IPM
CUTTING FEED RATE0 - 590 IPM
SPINDLE TAPERBT 40
SPINDLE SPEEDS60 - 15,000 RPM
SPINDLE MOTOR (DIRECT DRIVE)7.5 HP AC
TOOL CHANGER CAPACITY20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)1.8 SECONDS
DIMENSIONS, APPROX.75" x 93" x 101"
WEIGHT, APPROX.9000 LBS

Equipped With:
YASNAC i80M CNC CONTROL WITH MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE JOG AXIS CONTROLLER,
WITH OPTIONAL 15,000 RPM HIGH-SPEED SPINDLE,
OILMATIC SPINDLE CHILLER,
SIDE-MOUNT SWING-ARM TOOL CHANGER,
DUAL COOLANT SYSTEM WITH TANKS & PUMP,
FULLY ENCLOSED SPLASH GUARDING,
ALL AVAILABLE MANUALS
