EXCEL KIWA 1310 MUSTANG CNC VERTICAL MACHINING CENTER, FANUC O-M, 51 x 20 x 22, CAT 40 TAPER, SIDE MOUNT TOOL CHANGER


EXCEL KIWA 1310 MUSTANG CNC VERTICAL MACHINING CENTER, FANUC O-M, 51 x 20 x 22, CAT 40 TAPER, SIDE MOUNT TOOL CHANGER

Stock Number: 4865



Click to view larger photo

Request A Quote On Our Stock Number: 4865 EXCEL KIWA 1310 MUSTANG CNC VERTICAL MACHINING CENTER, FANUC O-M, 51 x 20 x 22, CAT 40 TAPER, SIDE MOUNT TOOL CHANGERRequest a quote on stock# 4865
SpecificationDescription
DATE OF MANUFACTURE1992
TABLE SIZE55" X 19"
MAXIMUM TABLE LOAD1322 LBS
TABLE TOP TO SPINDLE NOSE5.5" - 27.6"
X AXIS TRAVEL51.2"
Y AXIS TRAVEL20"
Z AXIS TRAVEL22"
RAPID TRAVERSE RATE X, Y AXES630 IPM
RAPID TRAVERSE Z AXIS510 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 6,000 RPM
SPINDLE MOTOR15 HP

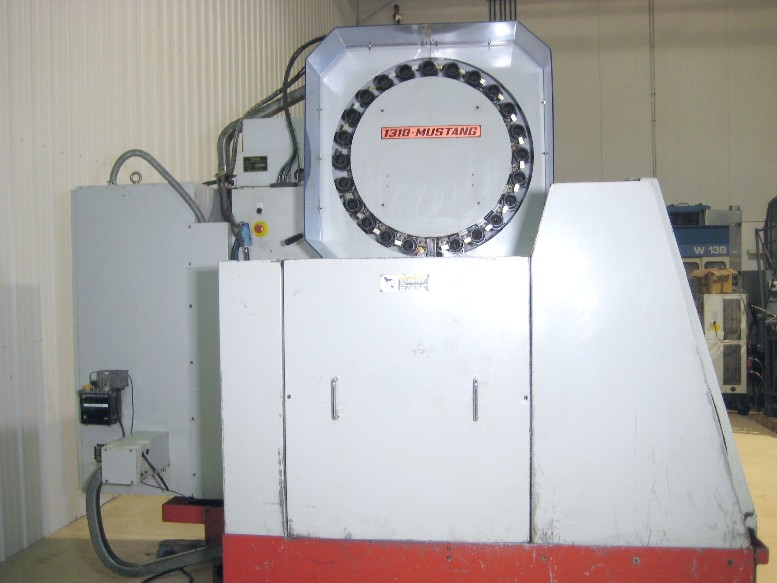

TOOL CHANGER CAPACITY24 TOOL ATC (SIDE MOUNT)
MAXIMUM TOOL WEIGHT13 LBS
DIMENSIONS, APPROX.134"L x 105"W x 109"H
WEIGHT, APPROX.15,000 LBS

Equipped With:
FANUC O-M CNC CONTROL WITH RS-232C PORT INTERFACE,

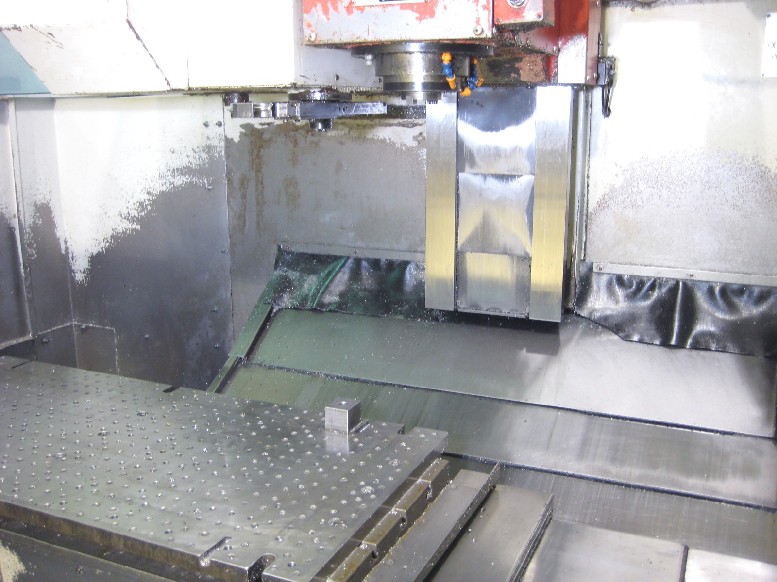

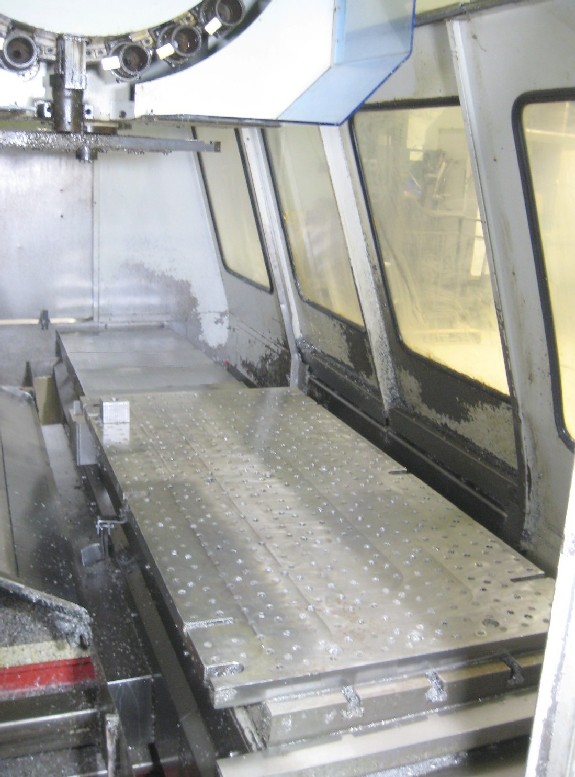

DRILLED & TAPPED SUB-PLATE MOUNTED ON TABLE (53"x 19")

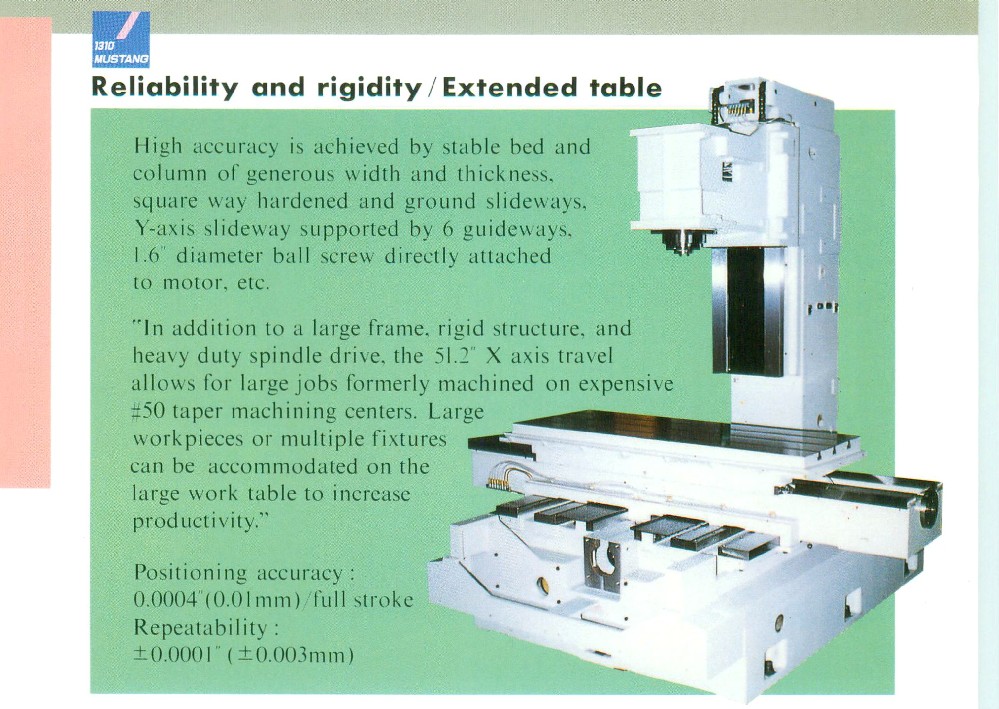

RIGID BOX WAY DESIGN,
COOLANT SYSTEM WITH TANKS & PUMP,

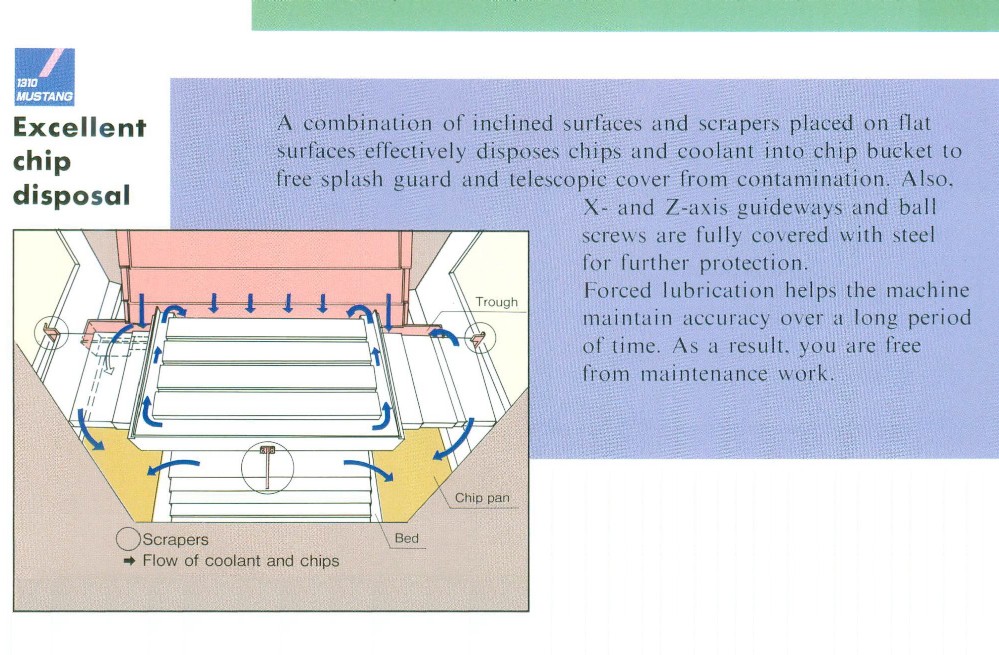

CHIP-REMOVAL SCRAPERS w/TABLE MOVEMENT,
FULLY ENCLOSED GUARDING,
ALL AVAILABLE MANUALS
***VIDEO AVAILABLE UPON REQUEST****
