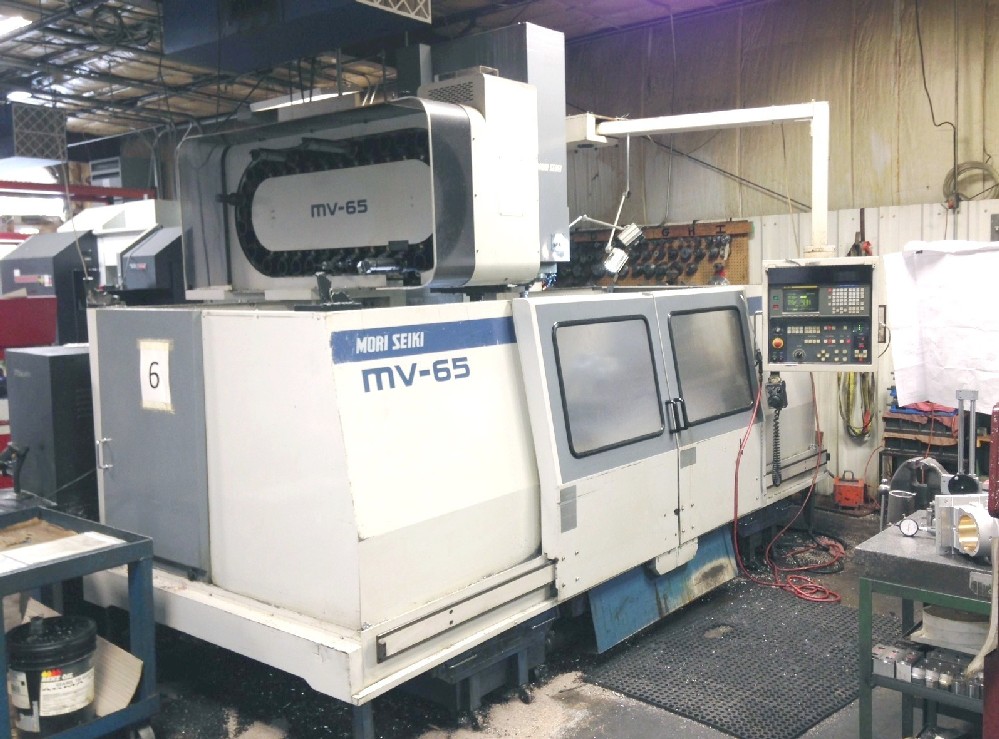

MORI SEIKI MV-65 B 50 TAPER CNC MILL, 60 x 26 x 26, 4000 RPM, BOX WAY, 30 TOOL CHANGER, FANUC MF-M6 (16M) 1995


MORI SEIKI MV-65 B 50 TAPER CNC MILL, 60 x 26 x 26, 4000 RPM, BOX WAY, 30 TOOL CHANGER, FANUC MF-M6 (16M) 1995

Stock Number: 4852



Click to view larger photo

Request A Quote On Our Stock Number: 4852 MORI SEIKI MV-65 B 50 TAPER CNC MILL, 60 x 26 x 26, 4000 RPM, BOX WAY, 30 TOOL CHANGER, FANUC MF-M6 (16M) 1995Request a quote on stock# 4852
SpecificationDescription
MFG DATE1995
TABLE SIZE67" x 26"
MAXIMUM TABLE LOAD4,400 LBS
SPINDLE NOSE TO TABLE TOP7.9" - 33.5"
X AXIS TRAVEL60.0"
Y AXIS TRAVEL25.6"
Z AXIS TRAVEL25.6"
RAPID TRAVERSE RATE X & Y & Z AXES590 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS (2 SPEED GEAR BOX)4,000 RPM
TOOL CHANGER CAPACITY30 STATION ATC
SPINDLE MOTOR25 HP
TOOL CHANGE TIME (TOOL TO TOOL)2/3 SECONDS
MAXIMUM TOOL WEIGHT44 LBS
WEIGHT, APPROX.34,200 LBS
DIMENSIONS, APPROX.172"L x 128"W x 125"H

Equipped With:
FANUC MF-M6 (16M) CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
CIRCULAR/HELICAL INTERPOLATION CW & CCW,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE PULSE GENERATOR, SPINDLE CHILLER,
SPINDLE AIR-BLAST SYSTEM,

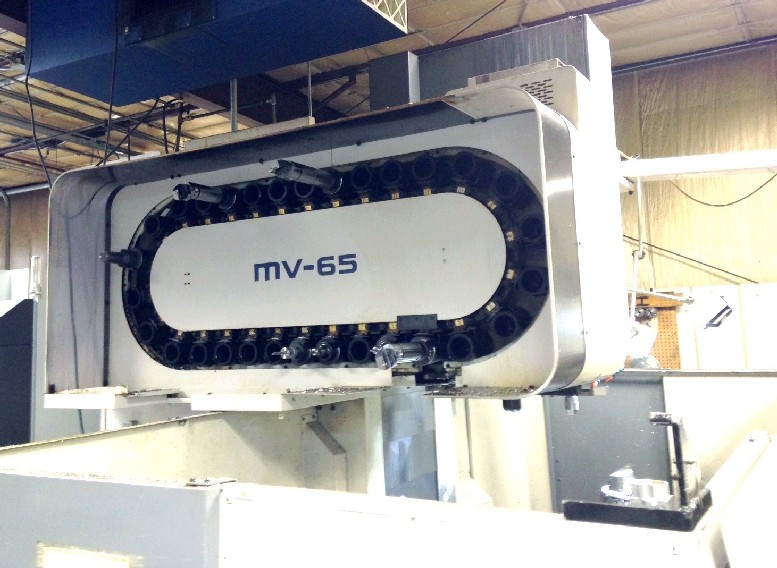

SIDE MOUNT 30 STATION SWING ARM ATC,
CHIP WASH DOWN w/TABLE CHIP SWEEPERS,
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING,
ALL AVAILABLE MANUALS

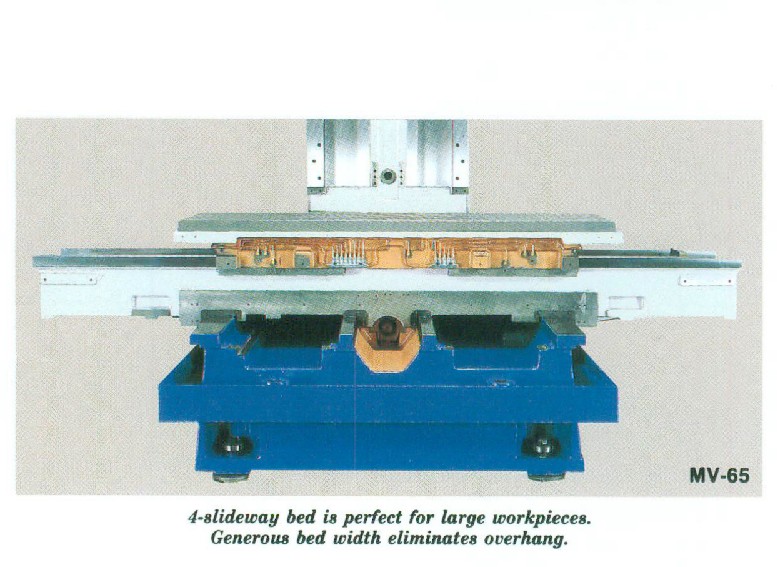

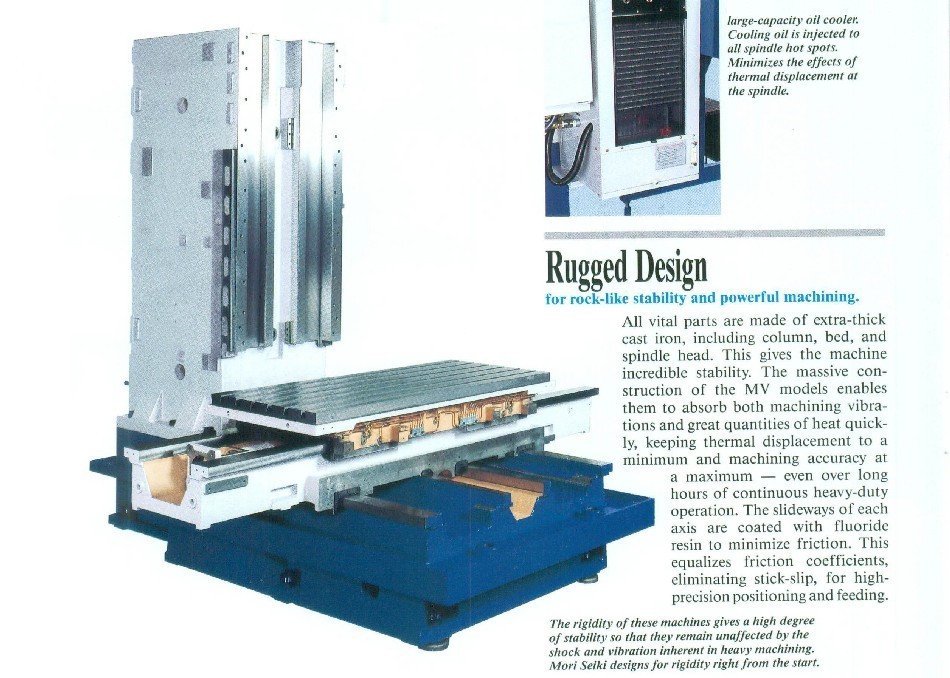

***RIGID BOX WAY DESIGN***
****VIDEO AVAILABLE UPON REQUEST****
