OKK MCV 550 CNC MILL, 41 x 23 x 22, CAT 50 TAPER, GEAR BOX 25 HP, 30 STATION TOOL CHANGER, MITSUBISHI MELDAS CTRL


OKK MCV 550 CNC MILL, 41 x 23 x 22, CAT 50 TAPER, GEAR BOX 25 HP, 30 STATION TOOL CHANGER, MITSUBISHI MELDAS CTRL

Stock Number: 4824



Click to view larger photo

Request A Quote On Our Stock Number: 4824 OKK MCV 550 CNC MILL, 41 x 23 x 22, CAT 50 TAPER, GEAR BOX 25 HP, 30 STATION TOOL CHANGER, MITSUBISHI MELDAS CTRLRequest a quote on stock# 4824
SpecificationDescription
DATE OF MANUFACTURE1994
TABLE SIZE51.13" x 22.38"
MAXIMUM TABLE LOAD3,307 LBS
SPINDLE NOSE TO TABLE TOP7.87" - 22"
X AXIS TRAVEL41.3"
Y AXIS TRAVEL22.6"
Z AXIS TRAVEL22"
RAPID TRAVERSE RATE X, Y & Z AXES630 IPM
CUTTING FEED RATE0.1 - 196 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS (2 SPEED GEARED)25 - 4,000 RPM
SPINDLE MOTOR25 HP
TOOL CHANGER CAPACITY30 STATIONS
MAXIMUM TOOL WEIGHT33 LBS
WEIGHT, APPROX.23,000 LBS
DIMENSIONS, APPROX.110" x 130" x 130"

Equipped With:
OKK NEOMATIC MITSUBISHI MELDAS 500 CNC CTRL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),

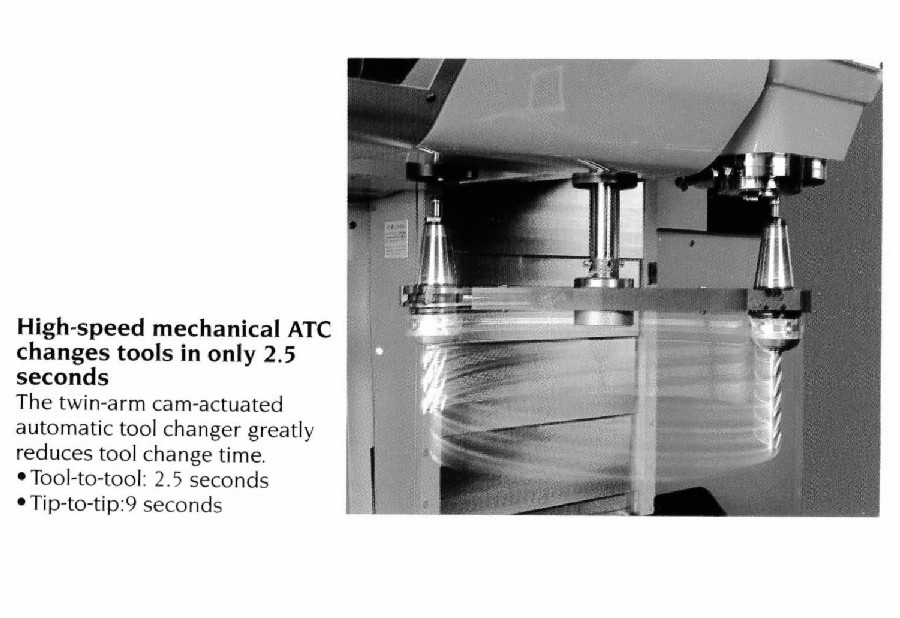

30 STATION ATC, REMOTE PULSE GENERATOR,
COOLANT SYSTEM WITH TANK & PUMP, GEARED HEAD,

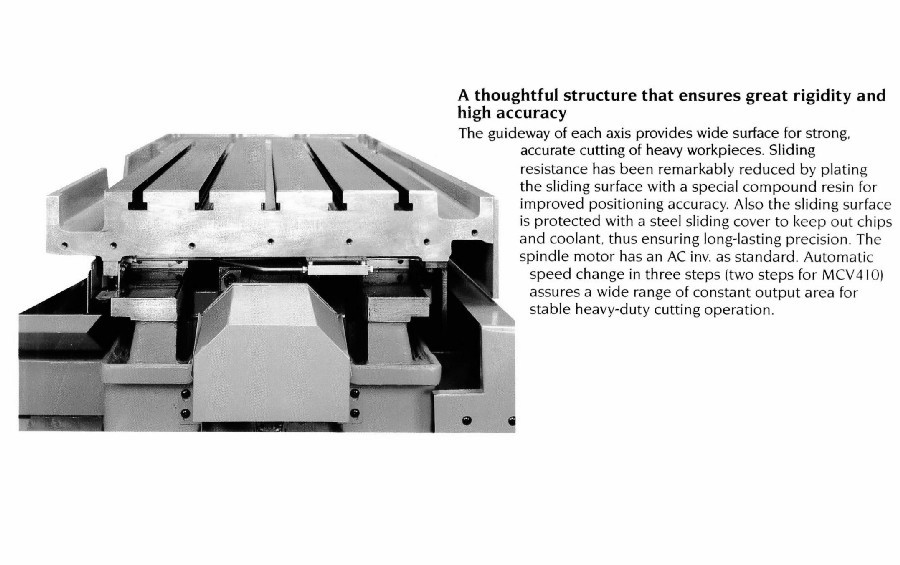

RIGID BOX WAY CONSTRUCTION, CHIP REMOVAL AUGER,
TABLE ENCLOSED GUARDING, ALL AVAILABLE MANUALS
