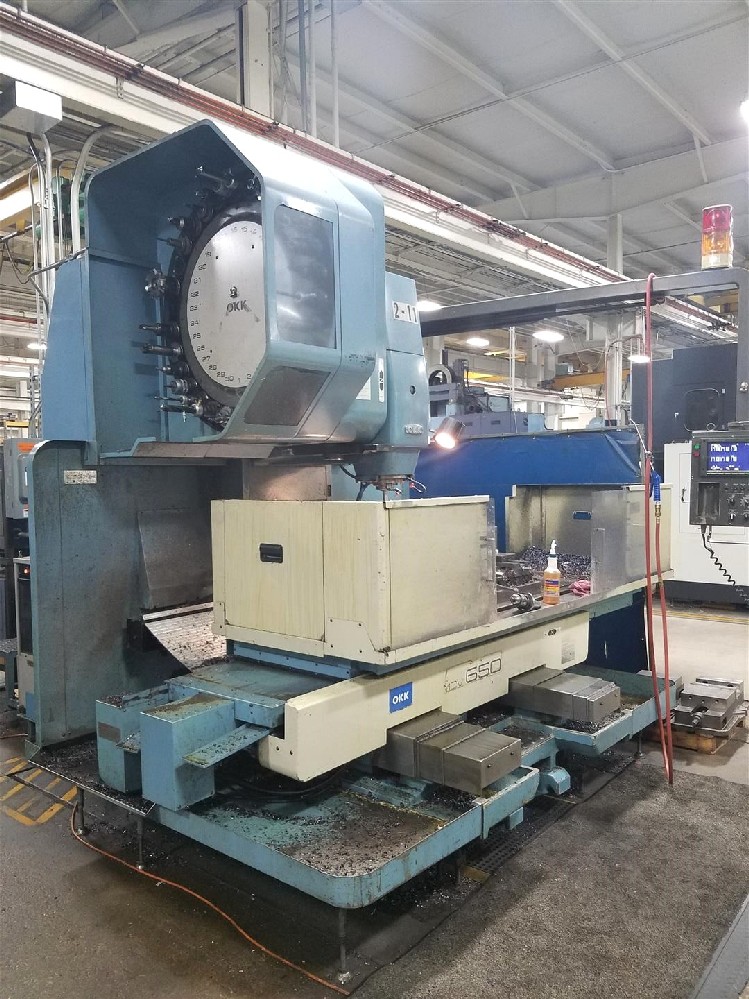

OKK MCV 650 CNC MILL, 60 x 27 x 26, CAT 50 TAPER HOLDER, GEAR BOX 30 HP, 30 STATION TOOL CHANGER, MITSUBISHI MELDAS CTRL

OKK MCV 650 CNC MILL, 60 x 27 x 26, CAT 50 TAPER HOLDER, GEAR BOX 30 HP, 30 STATION TOOL CHANGER, MITSUBISHI MELDAS CTRL

Stock Number: 4823


Click to view larger photo

Request A Quote On Our Stock Number: 4823 OKK MCV 650 CNC MILL, 60 x 27 x 26, CAT 50 TAPER HOLDER, GEAR BOX 30 HP, 30 STATION TOOL CHANGER, MITSUBISHI MELDAS CTRLRequest a quote on stock# 4823
SpecificationDescription
DATE OF MANUFACTURE1993
TABLE SIZE66.6" x 25.6"
MAXIMUM TABLE LOAD4,409 LBS
SPINDLE NOSE TO TABLE TOP7.87" - 25"
X AXIS TRAVEL60"
Y AXIS TRAVEL26.5"
Z AXIS TRAVEL25.6"
RAPID TRAVERSE RATE X, Y & Z AXES630 IPM
CUTTING FEED RATE0.1 - 196 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS (2 SPEED GEARED)25 - 4,000 RPM
SPINDLE MOTOR30 HP
TOOL CHANGER CAPACITY30 STATIONS
MAXIMUM TOOL WEIGHT33 LBS
WEIGHT, APPROX.27,500 LBS
DIMENSIONS, APPROX.118" x 136" x 130"

Equipped With:

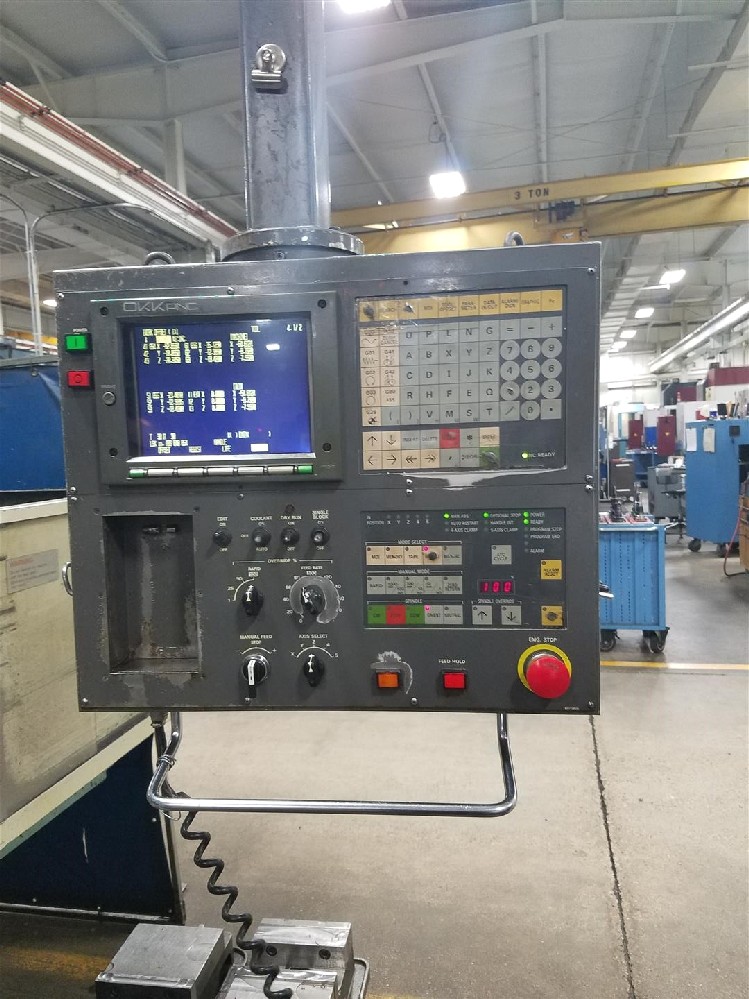

OKK NEOMATIC MITSUBISHI MELDAS 300V CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),

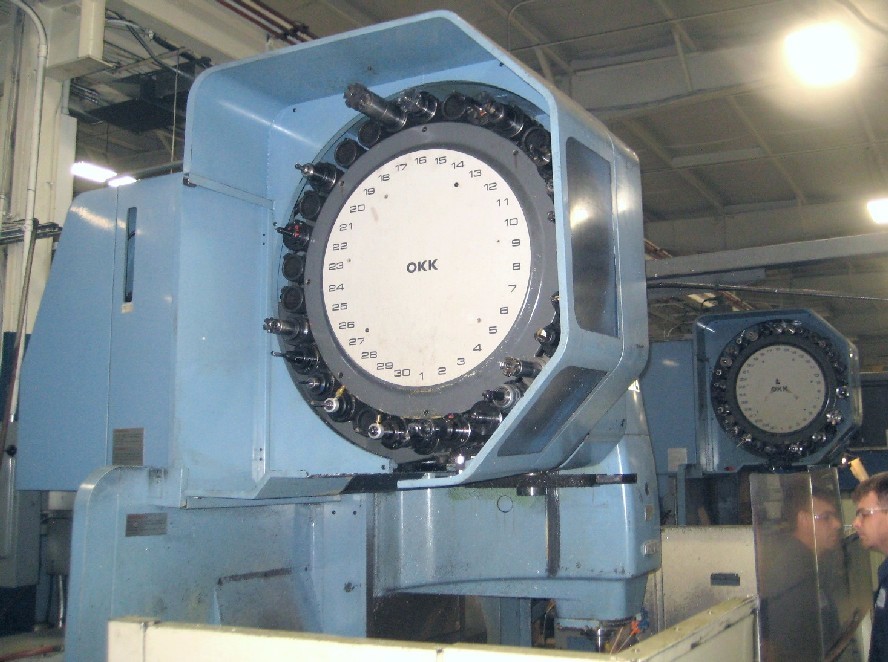

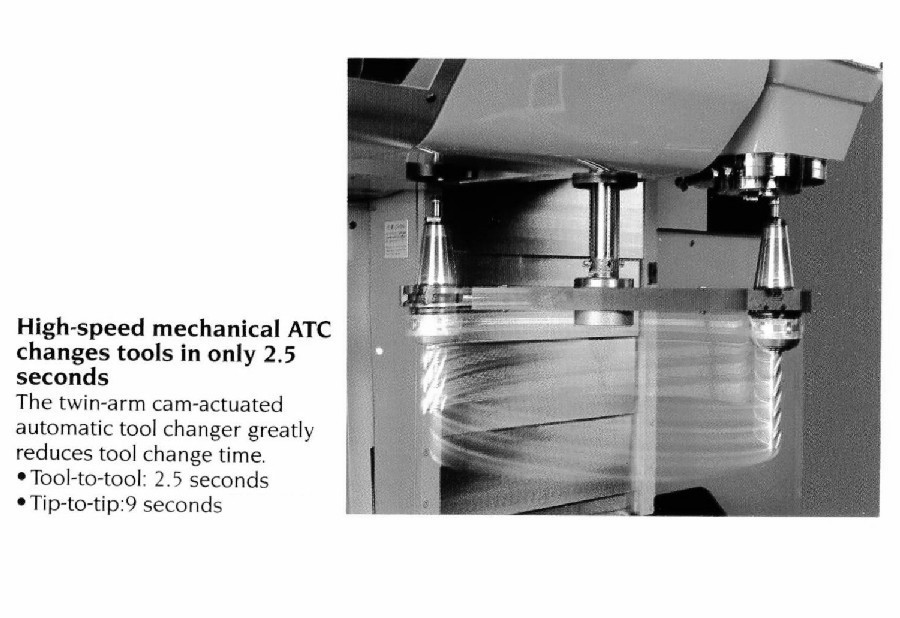

30 STATION ATC, REMOTE PULSE GENERATOR,
COOLANT SYSTEM WITH TANK & PUMP, GEARED HEAD,

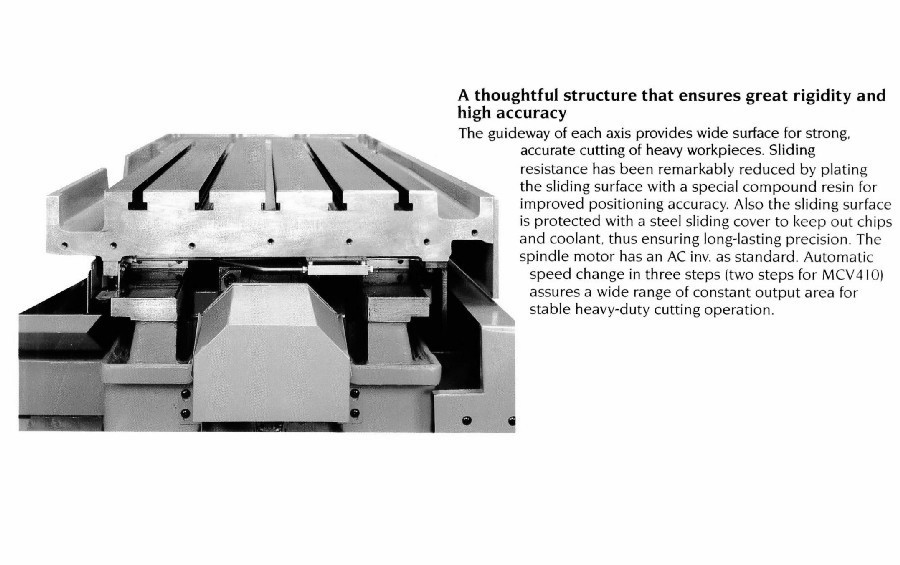

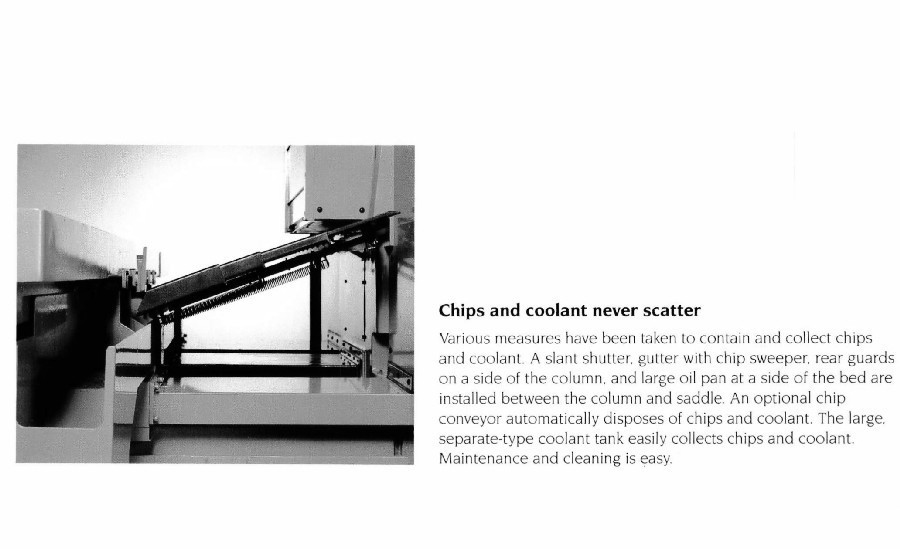

RIGID BOX WAY CONSTRUCTION, CHIP REMOVAL AUGER,
TABLE ENCLOSED GUARDING, ALL AVAILABLE MANUALS
