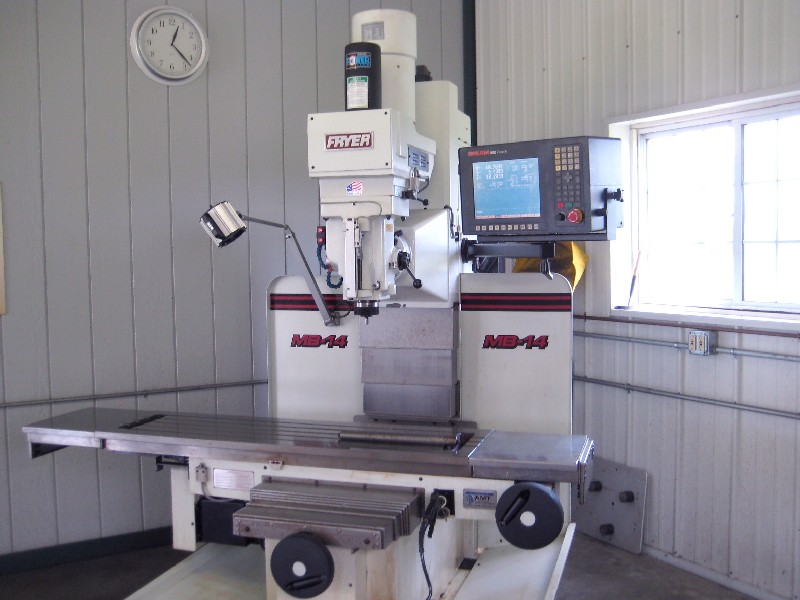

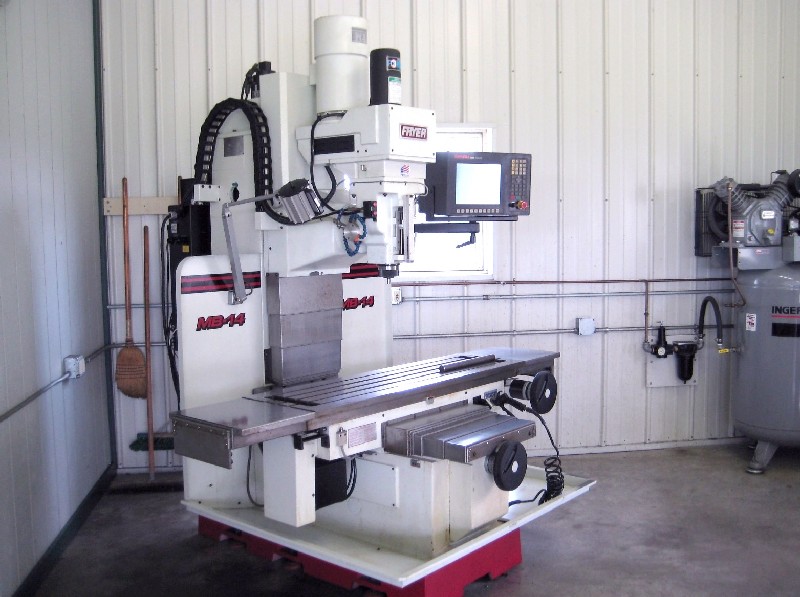

FRYER MB-14 CNC BED MILL, 40 x 20 x 22, CAT 40, BOX WAY, 2 SPEED GEARBOX, ANILAM 3000, VERY LOW HOURS
Stock Number: 4792
Click to view larger photo
Request a quote on stock# 4792
| Specification | Description |
|---|
| MFG DATE | 2008 |
| TABLE SIZE | 54" x 16" |
| MAXIMUM TABLE LOAD | 1,650 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 26" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 22" |
| RAPID TRAVERSE RATE X & Y,& Z AXES | 200 IPM |
| CUTTING FEED RATE | 0.01 - 200 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 60 - 4,500 RPM |
| SPINDLE MOTOR | 10 HP (2-SPEED GEARBOX) |
| MAXIMUM TOOL WEIGHT | 20 LBS |

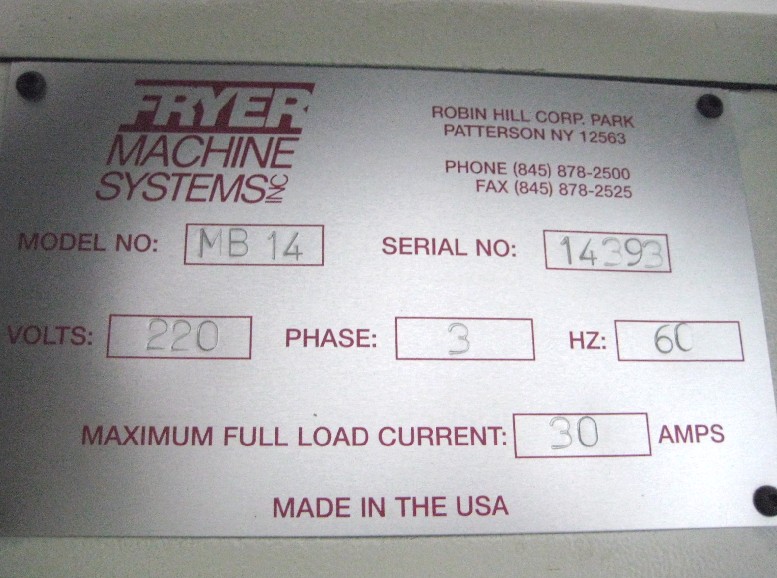

| ELECTRICS | SINGLE PHASE or 3-PHASE, 220v |
| WEIGHT, APPROX. | 6,000 LBS |
| DIMENSIONS, APPROX. | 82"L x 75"W x 95"H |
Equipped With:
ANILAM 3000 Touch CNC CTRL CONVERSATIONAL & COLOR GRAPHICS,
NETWORK & COMMUNICATIONS PORT,
BOX WAY DESIGN, M & G CODE PROGRAMMING,
2-SPEED GEARBOX, POWER DRAWBAR,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
EXCELLENT CONDITION & NEVER USED COOLANT SYSTEM
ROTATING HEAD: +/- 90, FLOPPY DISK DRIVE,

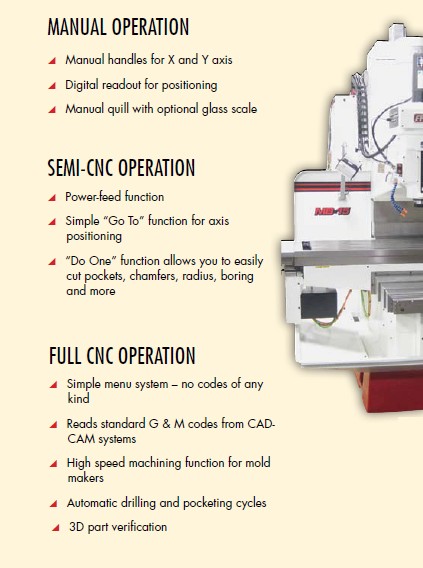

*MANUAL OPERATION AVAILABLE FOR X, Y, AND QUILL*
**SINGLE PHASE or 3-PHASE (220v)**
***VERY LOW HOUR MACHINE WITH LIGHT USE***
****MADE IN THE USA****
