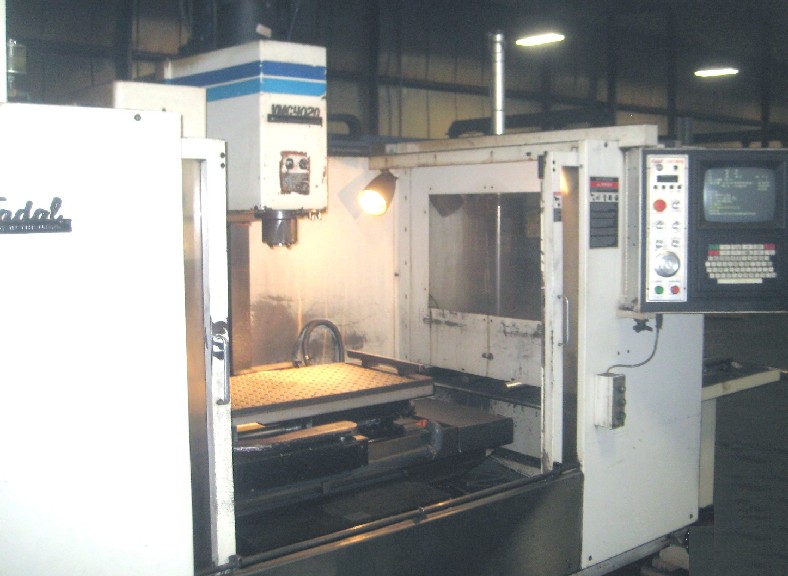

FADAL VMC-4020 AUTO PALLET CHANGER CNC MILL, 40x20x20, 10000 RPM, COOLANT THRU SPINDLE, HYRO SWEEP CHIP, CNC-88HS, 1996
Stock Number: 4789
Click to view larger photo
Request a quote on stock# 4789
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 1996 |
| TABLE SIZE | 48" x 20" |
| PALLET SIZE | 42" x 19.2" |
| NUMBER OF PALLETS | 2 |
| MAXIMUM TABLE LOAD | 1,500 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 24" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 700 IPM |
| CUTTING FEED RATE | 0.1 - 300 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 10,000 RPM |
| SPINDLE MOTOR | 15 HP |
| TOOL CHANGER CAPACITY | 30 STATION ATC |
| MAXIMUM TOOL WEIGHT | 15 LBS |
| WEIGHT, APPROX. | 14,000 LBS |
| DIMENSIONS, APPROX. (w/CHIP & CHANGER) | 190"L x 95"W x 110"H |
Equipped With:
FADAL CNC-88HS CONTROL (FANUC COMPATIBILITY)
w/GRAPHICS AND MANUAL PULSE GENERATOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,
FACTORY INSTALLED AUTOMATIC 2-PALLET CHANGER,
COOLANT THROUGH THE SPINDLE w/TANK & PUMP,
RIGID BOX WAY DESIGN, AUTO DOOR, CHILLER,
HYDRO-SWEEP CHIP REMOVAL SYSTEM w/PUMP,
EXTENDED SIZE (30) POCKET AUTO TOOL CHANGER,
TABLE & WAY COVER WASH DOWN SYSTEM,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
