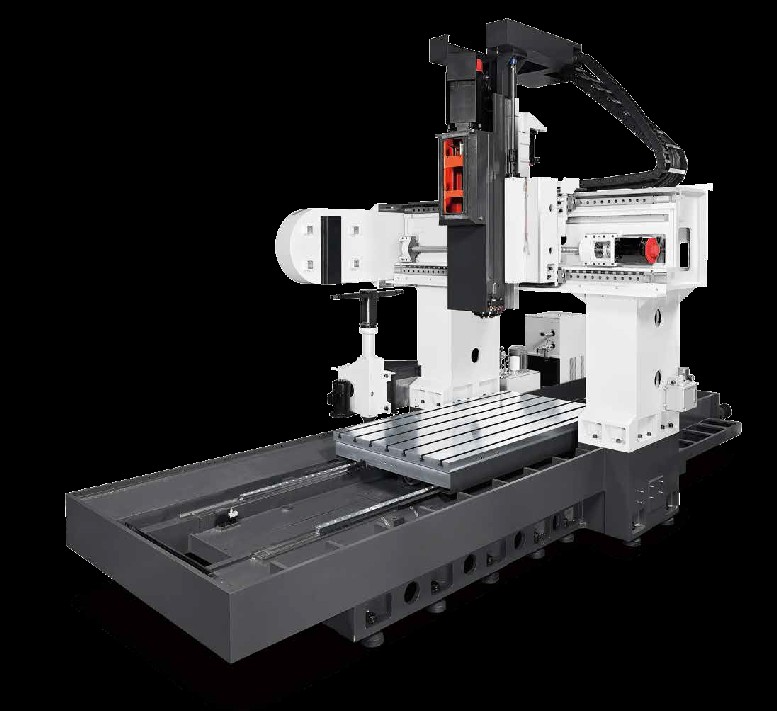

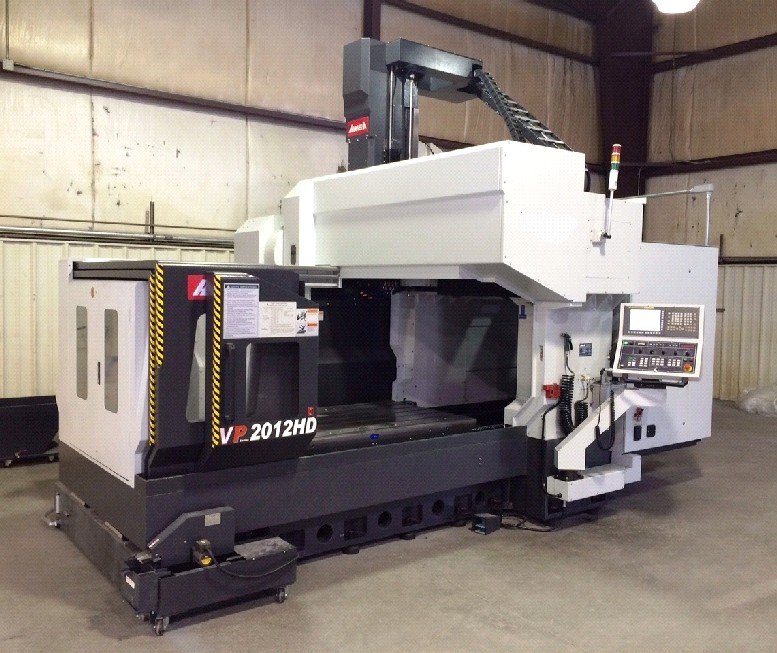

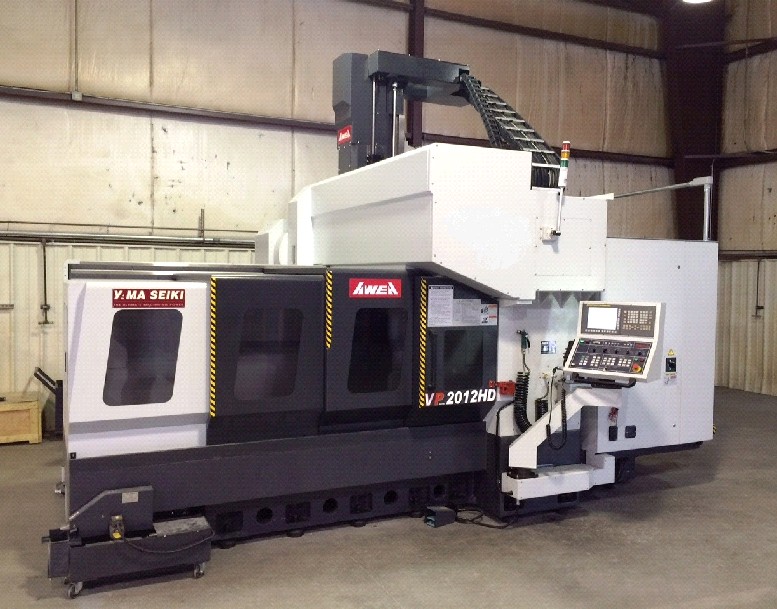

YAMA SEIKI / AWEA VP-2012HD BRIDGE TYPE CNC MILL, FANUC 31iMB, 79 x 47 x 30 , 40 TOOLS, 35 HP GEARED HEAD, CAT 50, 2014
Stock Number: 4788

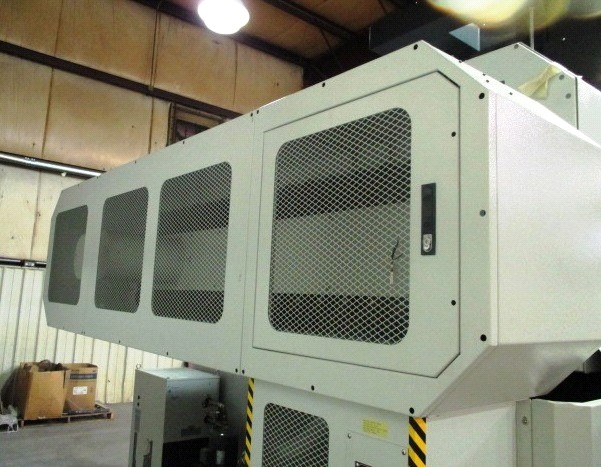

Click to view larger photo
Request a quote on stock# 4788
| Specification | Description |
|---|
| MANUFACTURE DATE | 2014 |

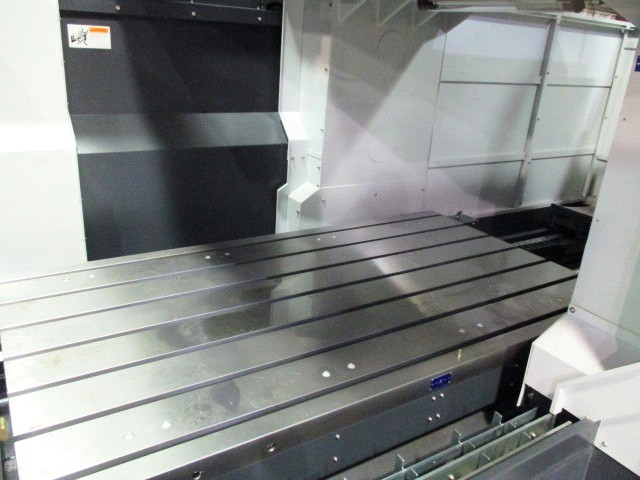

| TABLE SIZE | 78.74" x 43.3" |
| MAXIMUM TABLE LOAD | 7700 LBS |
| SPINDLE NOSE TO TABLE TOP | 7.78" - 37.8" |
| X AXIS TRAVEL | 78.74" |
| Y AXIS TRAVEL | 47.24" |
| Z AXIS TRAVEL | 29.92" |
| DISTANCE BETWEEN COLUMNS | 51.2" |
| RAPID TRAVERSE RATE X, Y, Z AXES | 945 IPM |
| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEEDS (2-SPEED GEARBOX) | 10 - 6000 RPM |
| SPINDLE MOTOR | 35 HP |
| TOOL CHANGER CAPACITY | 40 STATION ATC |
| MAXIMUM TOOL WEIGHT | 33 LBS |
| WEIGHT, APPROX. | 42,000 LBS |
Equipped With:

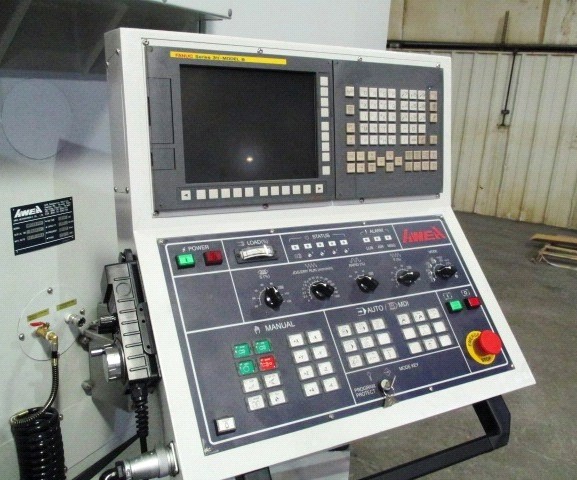

FANUC 31iMB CNC CONTROL WITH LCD,
FAST ETHERNET PORT INTERFACE FOR DNC OPERATION,

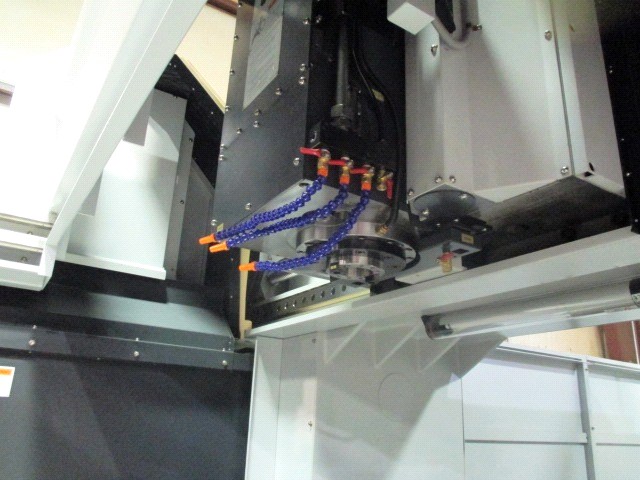

300 PSI COOLANT THROUGH SPINDLE,
4TH AXIS INTERFACE PRE-WIRED (NO DRIVE),
REMOTE JOG HANDLE/WHEEL,
NANO, CIRCULAR, HELICAL & LINEAR INTERPOLATION,
AUTOMATIC CORNER DECELERATION,

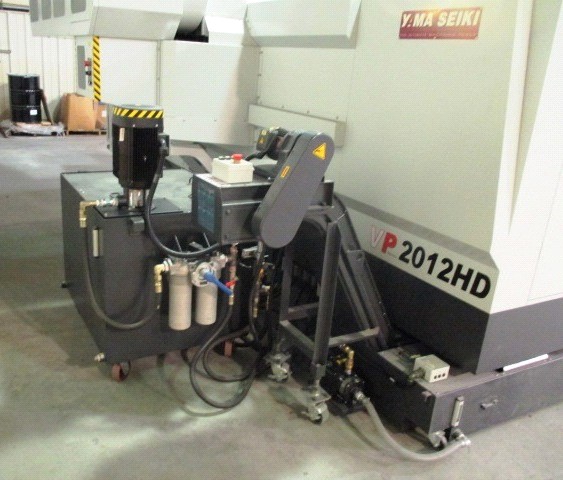

TWIN SCREW TYPE CHIP AUGERS,
CATAPILLAR TYPE CHIP CONVEYOR,

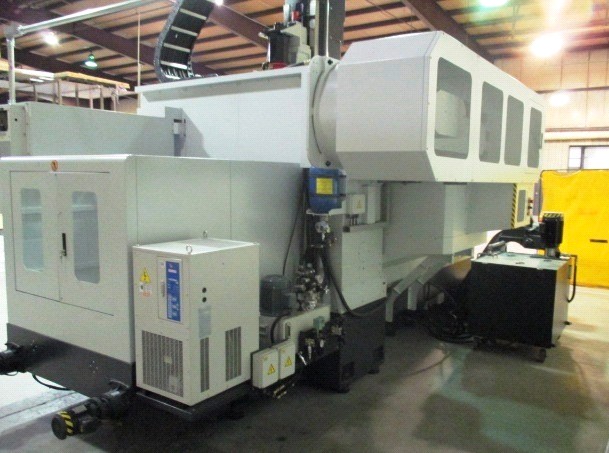

SPINDLE COOLING SYSTEM,
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, WORK LAMP,
ALL AVAILABLE MANUALS
