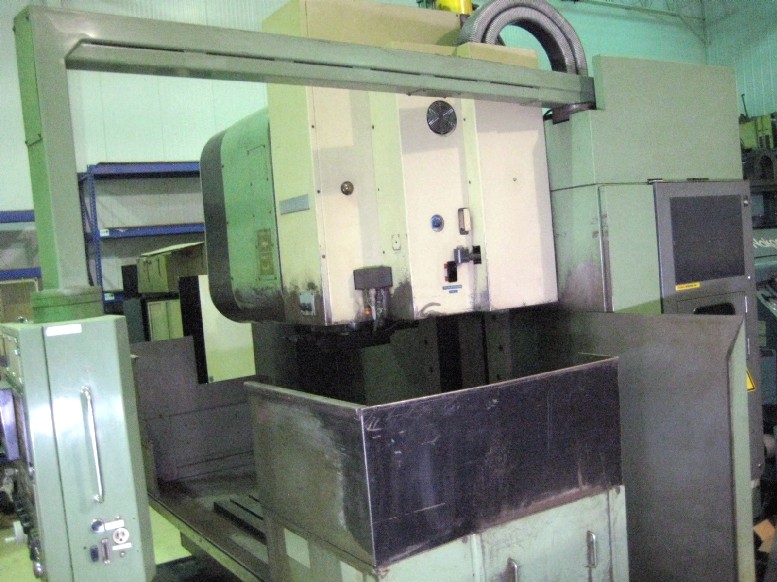

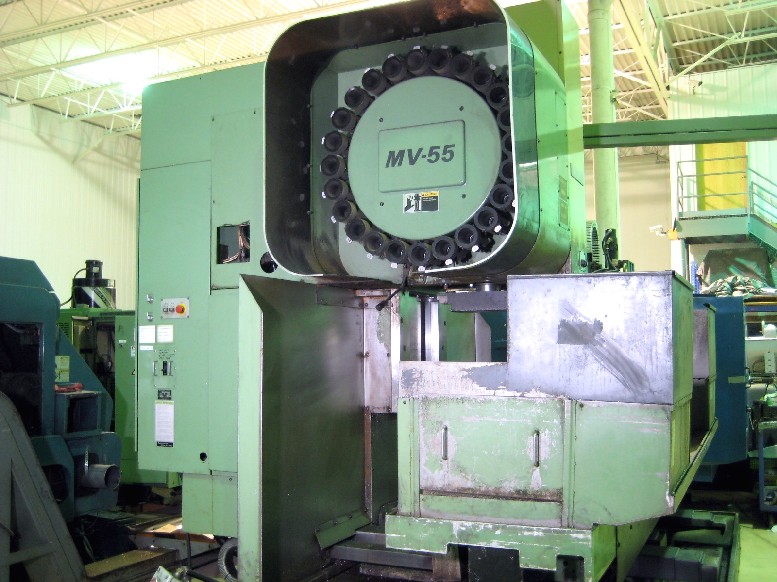

MORI SEIKI MV-55 / 50 TAPER CNC MILL, 40 x 22 x 22, FANUC, GEARBOX, BOX WAY, 3500 RPM, CHIP CONVEYOR, 1986
Stock Number: 4779
Click to view larger photo
Request a quote on stock# 4779
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 1986 |
| TABLE SIZE | 55" x 21.7" |
| MAXIMUM TABLE LOAD | 2,200 LBS |
| SPINDLE NOSE TO TABLE TOP | 9.8" - 31.5" |
| X AXIS TRAVEL | 40.1" |
| Y AXIS TRAVEL | 21.7" |
| Z AXIS TRAVEL | 21.7" |
| RAPID TRAVERSE RATE X, Y, Z AXES | 394 IPM |
| CUTTING FEED RATE | 0.1 - 196 IPM |
| SPINDLE TAPER | CAT 50 |
| SPINDLE SPEEDS | 20 - 3,500 RPM |
| SPINDLE MOTOR (2 SPEED GEARED) | 20 HP |
| TOOL CHANGER CAPACITY | 24 ATC |
| MAXIMUM TOOL WEIGHT | 33 LBS |
| WEIGHT, APPROX. | 19,800 LBS |
| DIMENSIONS, APPROX. | 133"L x 111"W x 131H" |
Equipped With:
FANUC 11M CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
GEARBOX SPINDLE, SIDE-MOUNT TOOL CHANGER,
CIRCULAR INTERPOLATION, MASSIVE Z-AXIS COLUMN,
CHIP CONVEYOR, RIGID TAPPING,
SPINDLE CHILLER (SPINDLE OIL/LUBE COOLING SYSTEM),
(3) COOLANT NOZZLES AROUND SPINDLE FLANGE,
COOLANT SYSTEM WITH TANK & PUMP,
TABLE ENCLOSED GUARDING, ALL AVAILABLE MANUALS

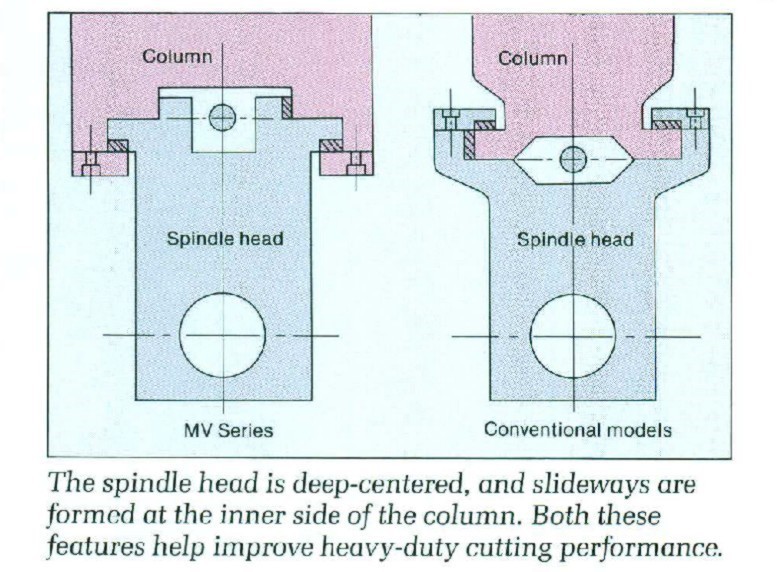

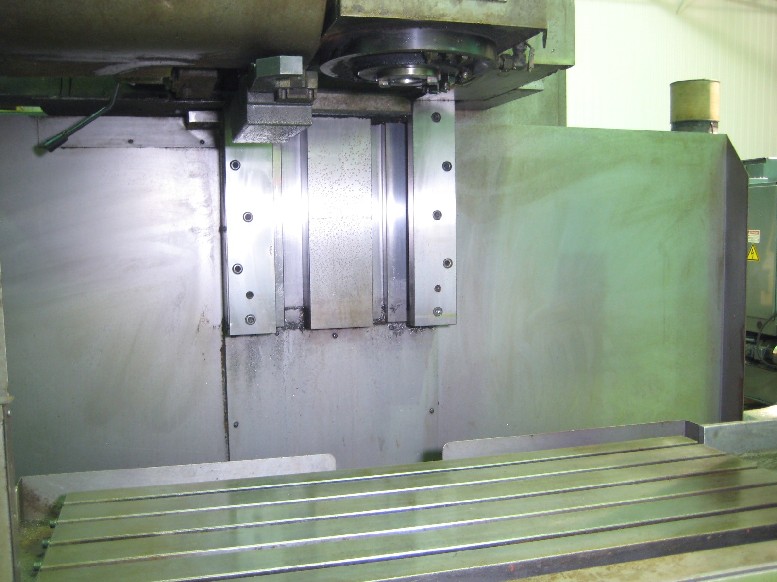

***RIGID BOX WAY CONSTRUCTION***
