FADAL VMC-4020 CNC MILL, 40 x 20 x 20, 10000 RPM, BOX WAY, CNC-88 (FANUC) CTRL, RIGID TAP, SPINDLE CHILLER, 1992

FADAL VMC-4020 CNC MILL, 40 x 20 x 20, 10000 RPM, BOX WAY, CNC-88 (FANUC) CTRL, RIGID TAP, SPINDLE CHILLER, 1992

Stock Number: 4768

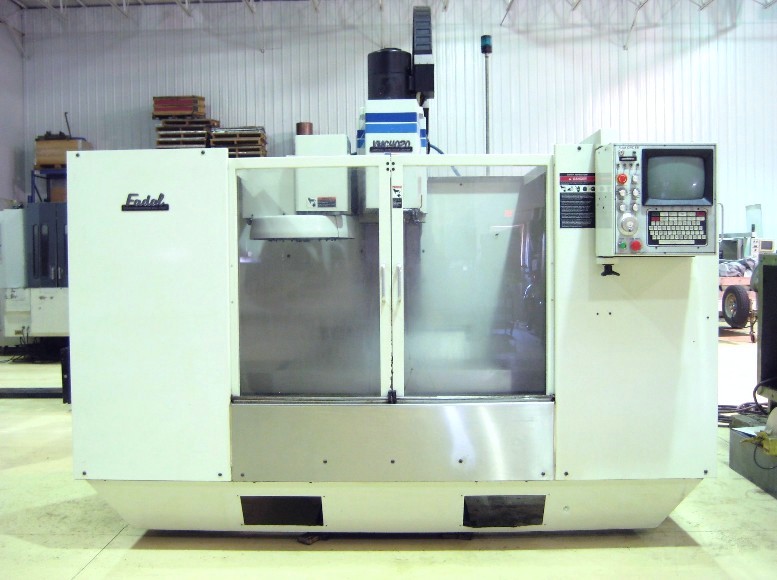

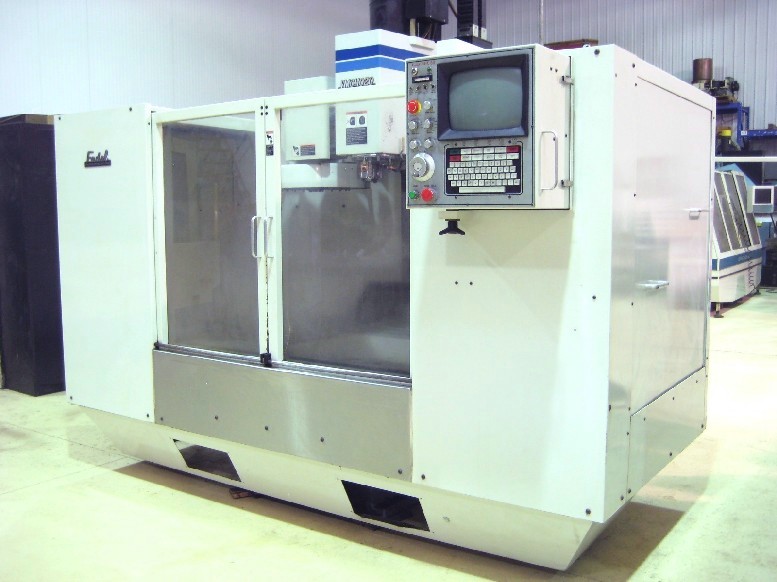

Click to view larger photo

Request A Quote On Our Stock Number: 4768 FADAL VMC-4020 CNC MILL, 40 x 20 x 20, 10000 RPM, BOX WAY, CNC-88 (FANUC) CTRL, RIGID TAP, SPINDLE CHILLER, 1992Request a quote on stock# 4768
SpecificationDescription
DATE OF MANUFACTURE1992
TABLE SIZE48" x 20"
MAXIMUM TABLE LOAD1,500 LBS
SPINDLE NOSE TO TABLE TOP4" - 24"
X AXIS TRAVEL40"
Y AXIS TRAVEL20"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X, Y & Z AXES700 IPM
CUTTING FEED RATE0.1 - 250 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 10,000 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY21 STATION ATC, BI-DIRECTIONAL
MAXIMUM TOOL WEIGHT15 LBS
WEIGHT, APPROX.11,200 LBS
DIMENSIONS, APPROX.116" L x 87"W x 99"H

Equipped With:
FADAL CNC-88 CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID BOX WAY DESIGN,
GRAPHICAL PROGRAM VERIFICATION,
FANUC COMPATIBILITY,
SPINDLE CHILLER WITH PUMP,
HIGH-SPEED 10000 RPM SPINDLE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
