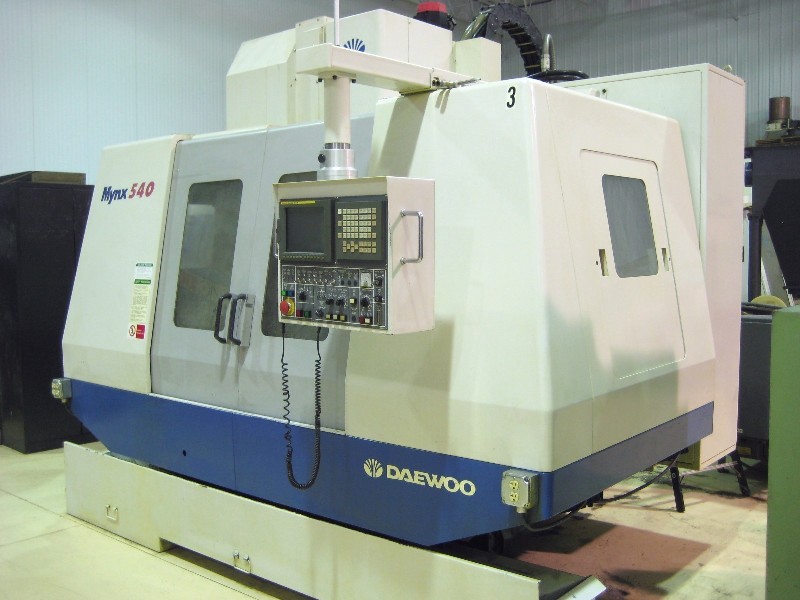

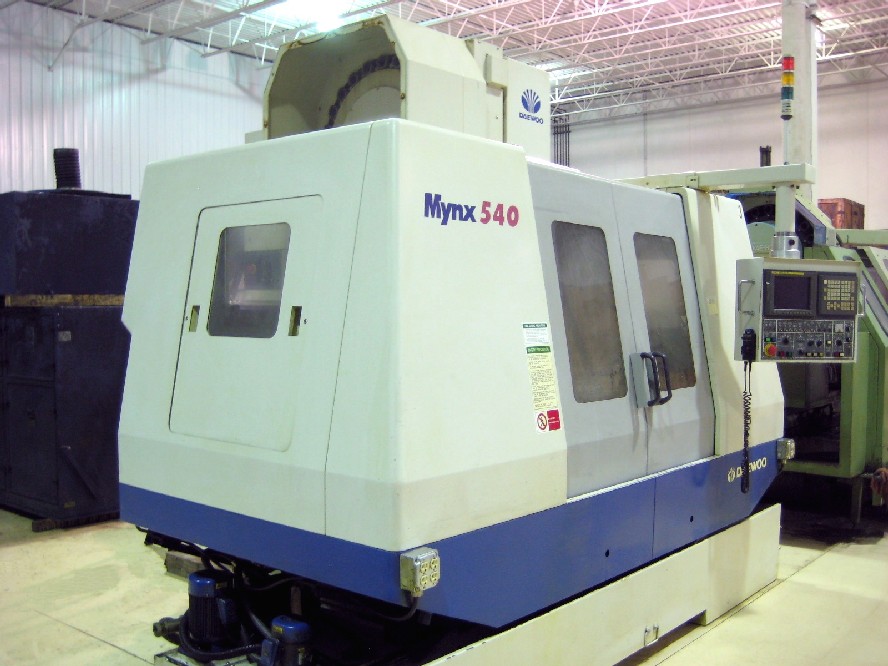

DAEWOO MYNX 540 CNC MILL, FANUC 21i-M, 40 x 20 x 24, 20 HP, 8000 RPM, COOLANT THRU SPINDLE, 24 SIDE TOOL CHANGER,BOX WAY
Stock Number: 4761
Click to view larger photo
Request a quote on stock# 4761
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 7/2001 |

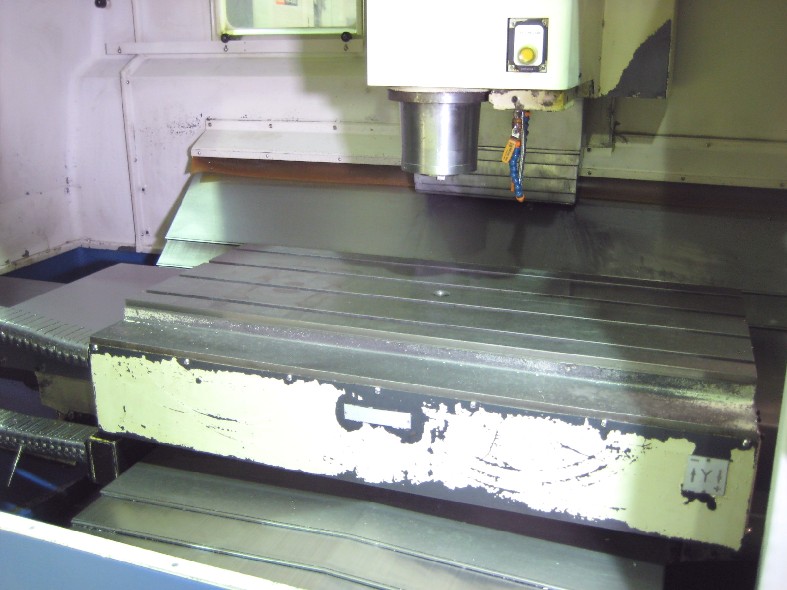

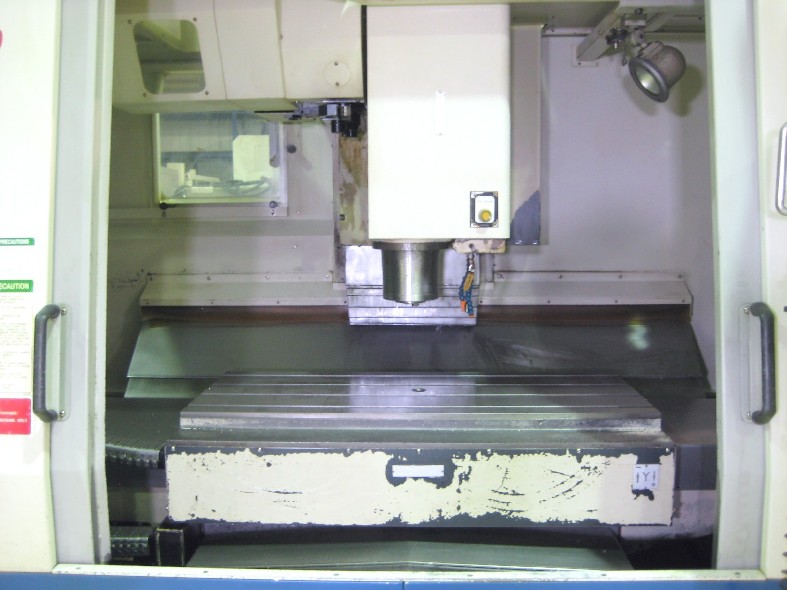

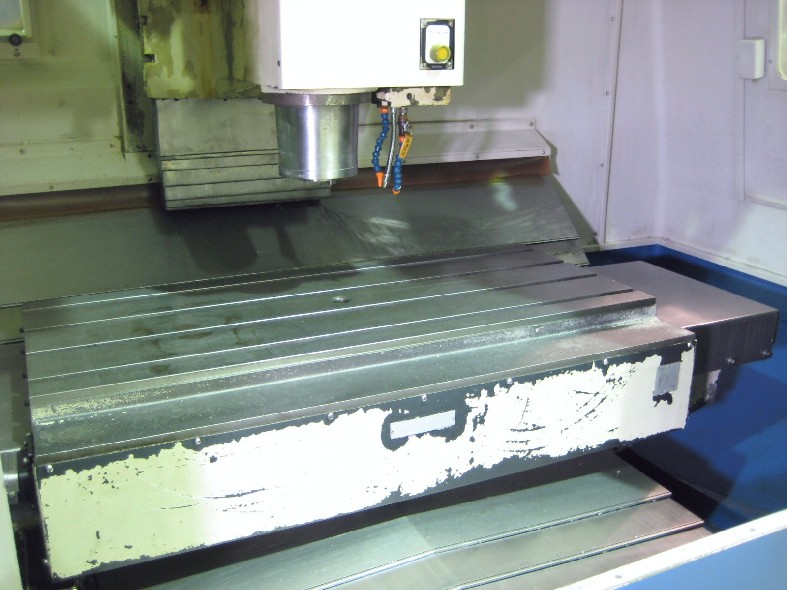

| TABLE SIZE | 47" x 20" |
| MAXIMUM PALLET LOAD | 2000 LBS |
| SPINDLE NOSE TO PALLET TOP | 7.9" - 30.5" |
| X AXIS TRAVEL | 40.1" |
| Y AXIS TRAVEL | 19.7" |
| Z AXIS TRAVEL | 24.1" |
| RAPID TRAVERSE RATE X & Y AXIS | 945 IPM |
| CUTTING FEED RATE | 0.1 - 315 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 8,000 RPM |
| SPINDLE MOTOR, HIGH TORQUE (143 ft-lbs) | 20 HP |

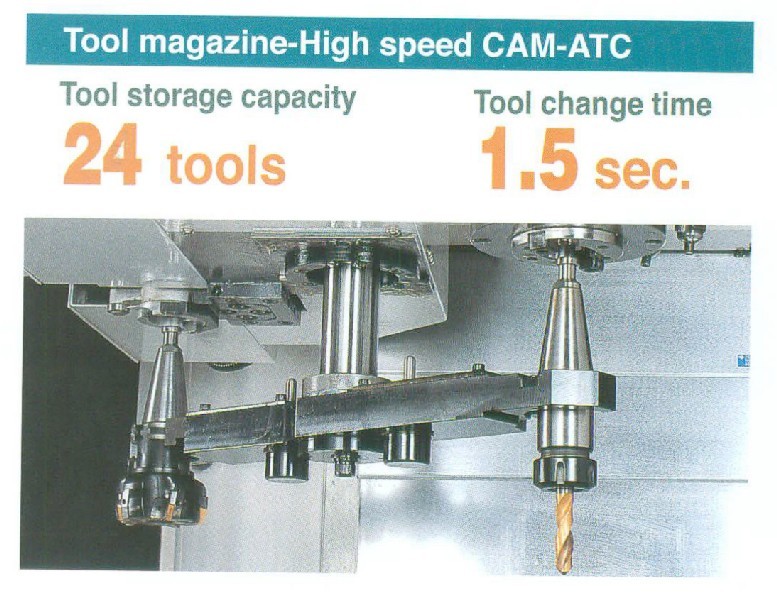

| TOOL CHANGER CAPACITY, SIDE MOUNT | 24 STATION SWING-ARM CAM |
| MAXIMUM TOOL WEIGHT | 17.6 LBS |
| WEIGHT, APPROX. | 16,300 LBS |
| DIMENSIONS, APPROX. | 126"L x 106"W x 116"H |
Equipped With:

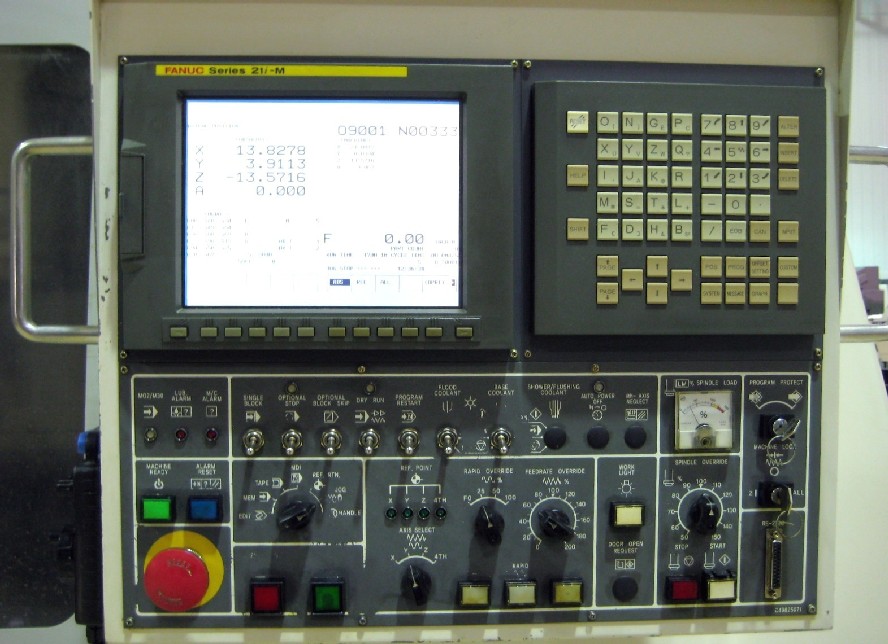

FANUC 21i-M CNC CONTROL w/PCMCIA MEMORY PORT,
RS-232C COM. PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
COOL-JET COOLANT THROUGH SPINDLE SYS. (290 MAX PSI),
REMOTE PULSE GENERATOR HAND-WHEEL,
TOOL LENGTH COMPENSATION, BACKGROUND EDITING,
64 TOTAL TOOL OFFSETS, INCH/METRIC SWITCHABLE
SIDE MOUNTED AUTO-TOOL CHANGER (SWING-ARM CAM),
COOLANT SYSTEM WITH TANK & PUMP,
(PLUS BASE COOLANT FLUSH CHIP DISPOSAL SYSTEM)
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

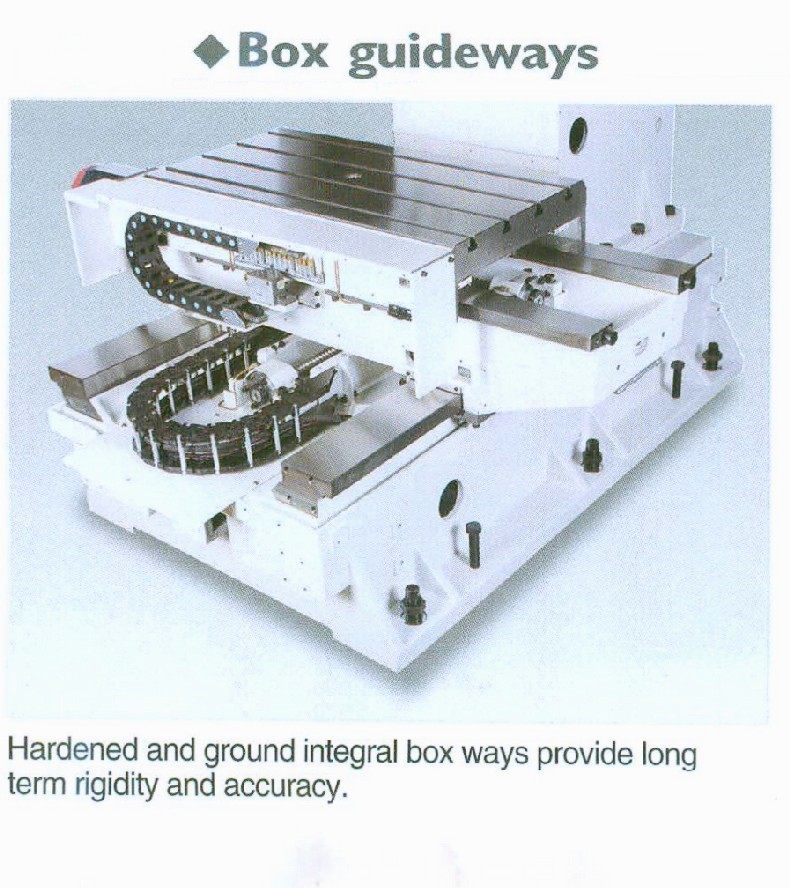

****RIGID BOX WAY CONSTRUCTION****
