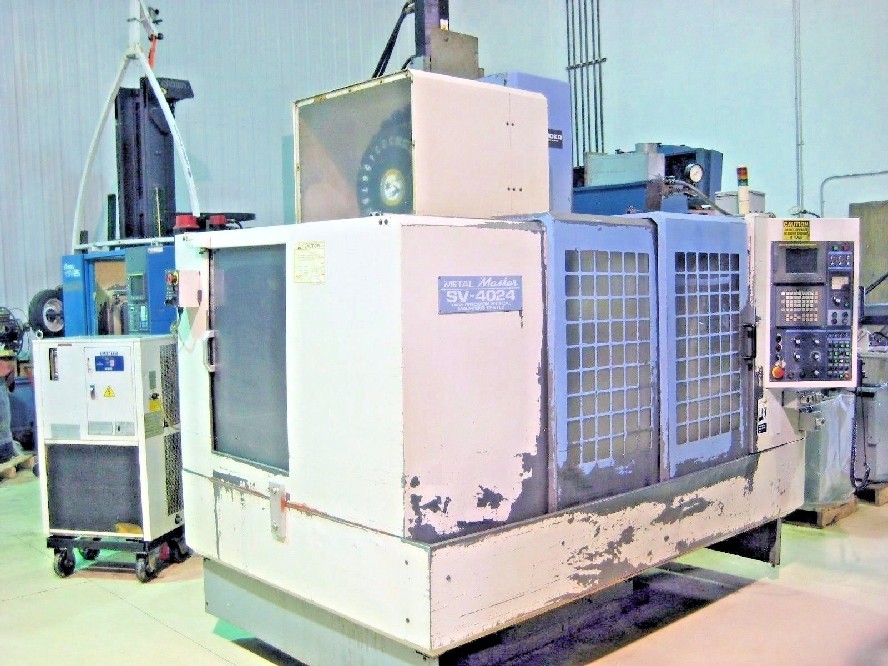

SHIZUOKA SV-4024 CNC MILL, FANUC 18i-M, 40 x 24 x 20, 30 HP, 12000 RPM, COOL THRU SPINDLE, 24 SIDE TOOL CHANGER, BOX WAY


SHIZUOKA SV-4024 CNC MILL, FANUC 18i-M, 40 x 24 x 20, 30 HP, 12000 RPM, COOL THRU SPINDLE, 24 SIDE TOOL CHANGER, BOX WAY

Stock Number: 4760



Click to view larger photo

Request A Quote On Our Stock Number: 4760 SHIZUOKA SV-4024 CNC MILL, FANUC 18i-M, 40 x 24 x 20, 30 HP, 12000 RPM, COOL THRU SPINDLE, 24 SIDE TOOL CHANGER, BOX WAYRequest a quote on stock# 4760
SpecificationDescription
DATE OF MANUFACTURE2000

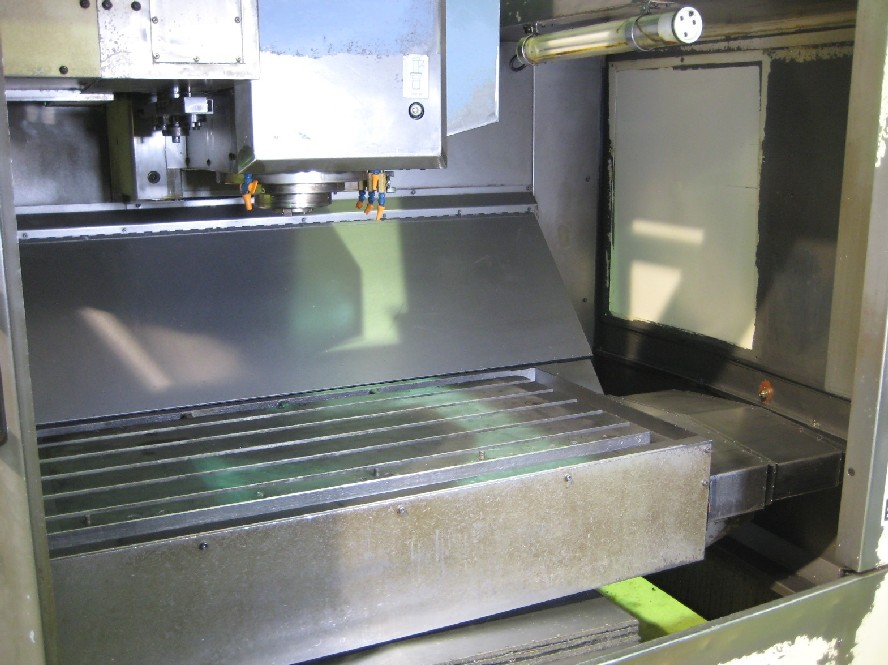

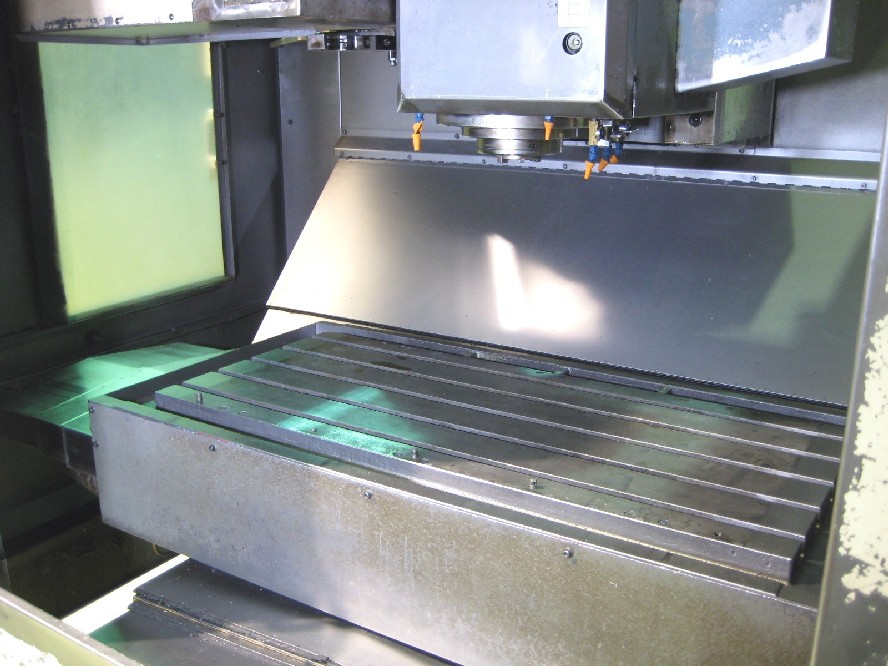

TABLE SIZE47" x 27.6"
MAXIMUM PALLET LOAD2,205 LBS
SPINDLE NOSE TO PALLET TOP5.9" - 26"
X AXIS TRAVEL40.2"
Y AXIS TRAVEL24"
Z AXIS TRAVEL20.1"
RAPID TRAVERSE RATE X & Y AXIS1575 IPM
CUTTING FEED RATE0.4 - 630 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS100 - 12,000 RPM
SPINDLE MOTOR30 HP
TOOL CHANGER CAPACITY, SIDE MOUNT24 (SWING-ARM CAM)
SLIDING DOOR OPEN WIDTH50"
MAXIMUM TOOL WEIGHT17.6 LBS
WEIGHT, APPROX.17,000 LBS
DIMENSIONS, APPROX.100"L x 103"W x 117"H

Equipped With:

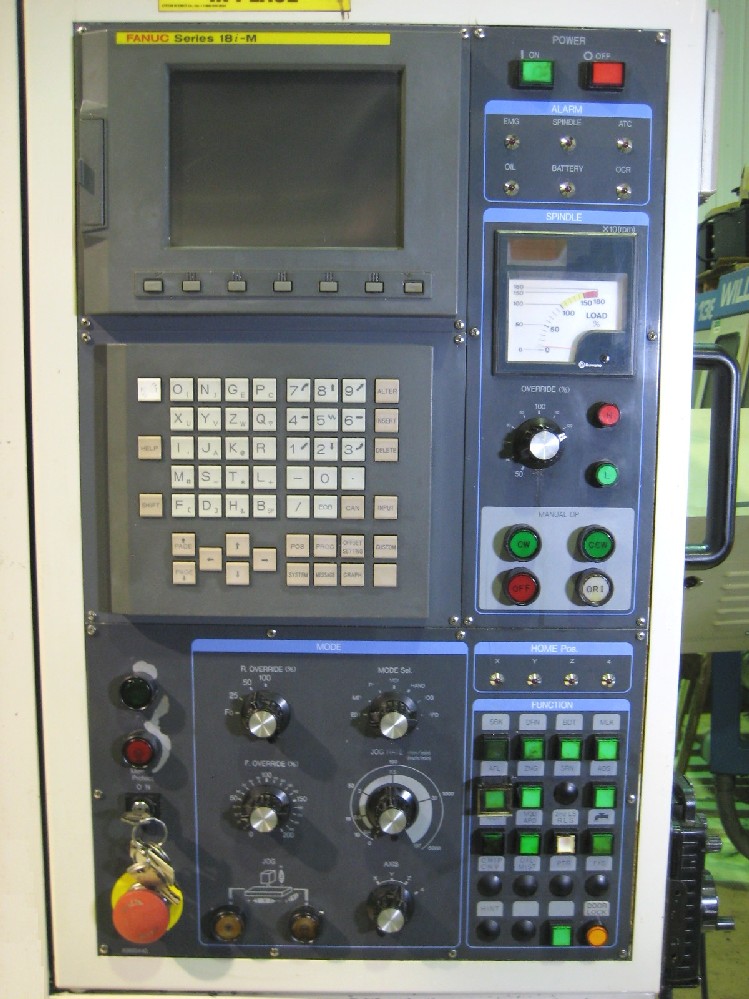

FANUC 18i-M CNC CONTROL w/9" MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
CHIP BLASTER COOL-THRU-SPINDLE UNIT (2000 PSI),
(2) TURBO REAR DISCHARGE CHIP CONVEYORS,
KAMUI SPINDLE & OIL CHILLER,
REMOTE PULSE GENERATOR HAND-WHEEL,

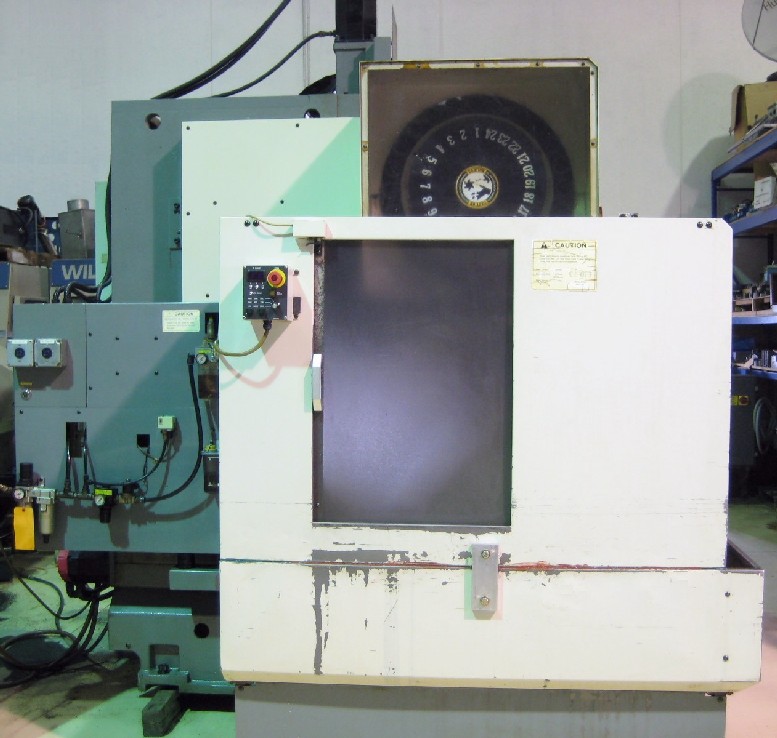

SIDE MOUNTED AUTO-TOOL CHANGER (SWING-ARM CAM),
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
****RIGID BOX WAY CONSTRUCTION****
*******30 HP HIGH-SPEED SPINDLE*******
***********A QUALITY JAPANESE MACHINE TOOL************
