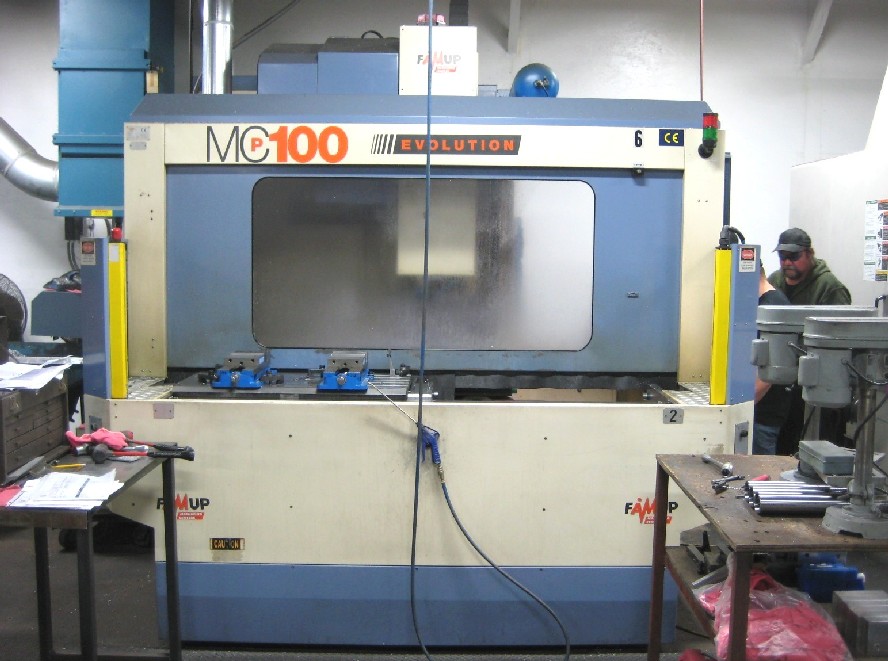

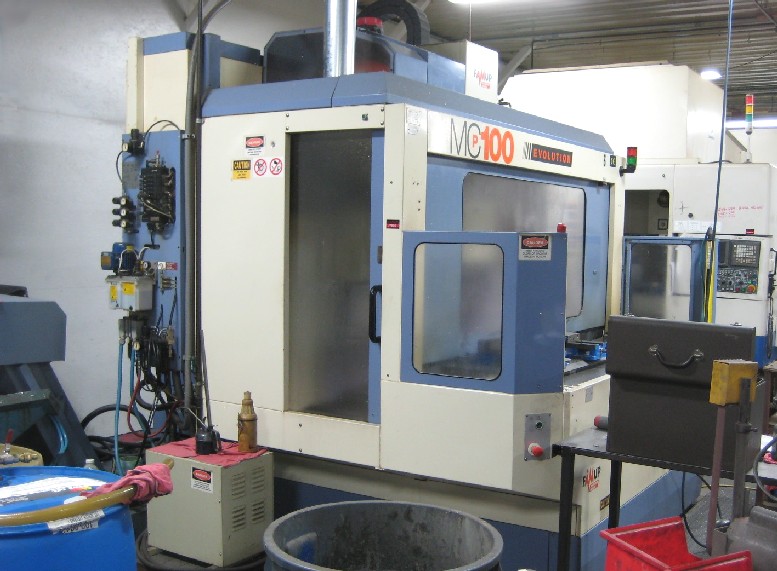

FAMUP MCP-100 (2) PALLET CNC MILL, FANUC 18, 43 x 20 x 25 TRVLS, 10000 RPM, 20 HP, 30 TOOLS, 40 TAPER, CHIP CONVEYOR

Stock Number: 4750

Click to view larger photo

Request A Quote On Our Stock Number: 4750 FAMUP MCP-100 (2) PALLET CNC MILL, FANUC 18, 43 x 20 x 25 TRVLS, 10000 RPM, 20 HP, 30 TOOLS, 40 TAPER, CHIP CONVEYOR

Request A Quote On Our Stock Number: 4750 FAMUP MCP-100 (2) PALLET CNC MILL, FANUC 18, 43 x 20 x 25 TRVLS, 10000 RPM, 20 HP, 30 TOOLS, 40 TAPER, CHIP CONVEYOR

Request a quote on stock# 4750

Specification	Description
YEAR OF MANUFACTURE	2000
TABLE SIZE (2)	39.4" x 17.7" (2 PALLETS)
MAXIMUM TABLE LOAD	1,322 LBS
SPINDLE NOSE TO TABLE TOP	2" - 28"
X AXIS TRAVEL	43.3"
Y AXIS TRAVEL	19.7"
Z AXIS TRAVEL	25.1"
RAPID TRAVERSE RATE (X, Y, Z)	1181 IPM
CUTTING FEED RATE	0.1 - 400 IPM
SPINDLE TAPER	BT 40
SPINDLE SPEEDS	0 - 10,000 RPM
SPINDLE MOTOR	20 HP
TOOL CHANGER CAPACITY	(30) SIDE-MOUNTED ARM
TOOL CHANGE TIME	2.9 SECONDS

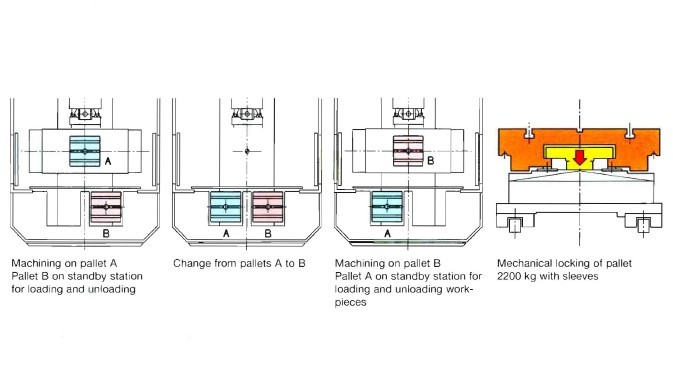

PALLET CHANGE TIME	8.9 SECONDS
THRUST OF MECHANICAL PALLET LOCK	4,850 LB CAM-LOCK
MACHINE WEIGHT, APPROX.	15,700 LBS

Equipped With:

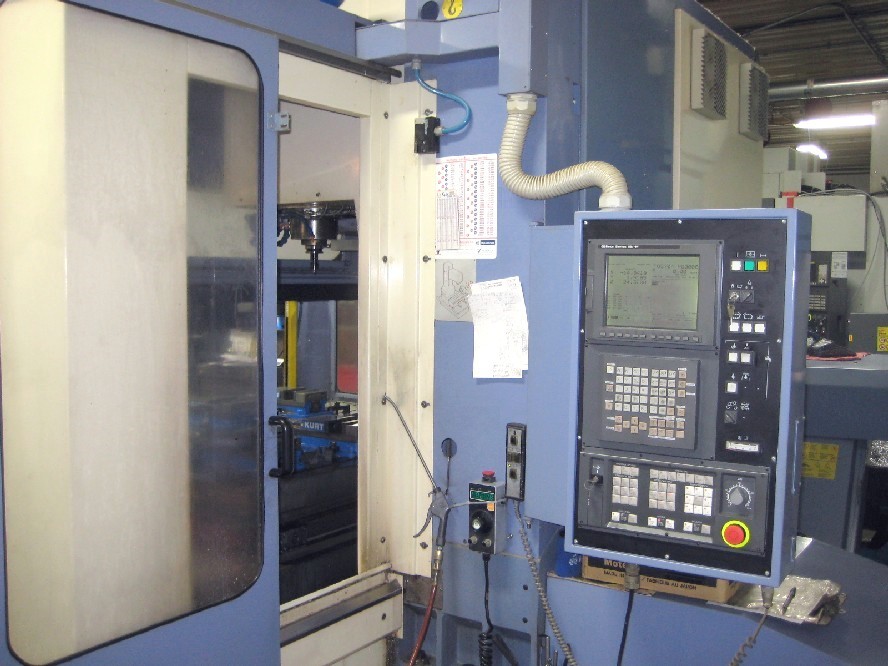

FANUC 18iM CNC CONTROL w/10.4" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,

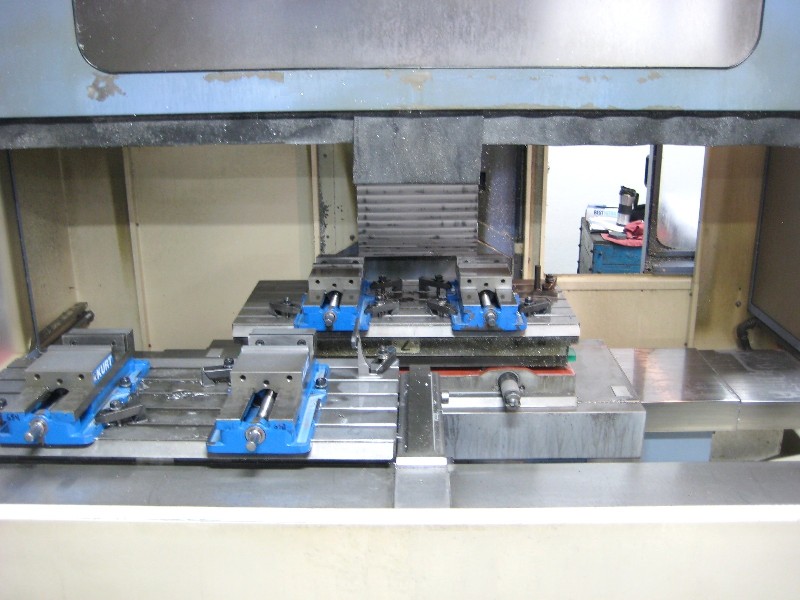

AUTOMATIC 2-PALLET CHANGER (SIDE BY SIDE),

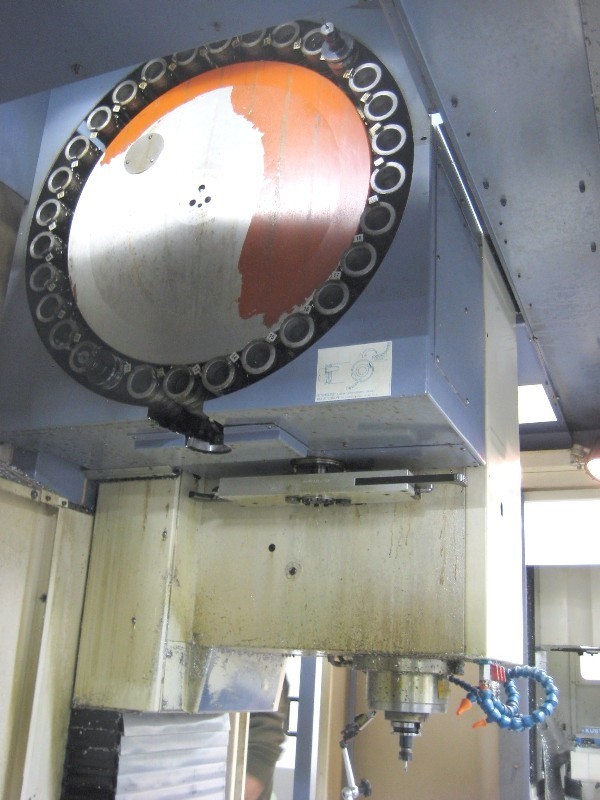

SIDE-MOUNTED POCKET-ARM TOOL CHANGER,
LIFT-UP TYPE CHIP CONVEYOR, 10000 RPM SPINDLE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE JOG HANDLE/REMOTE PULSE GENERATOR,

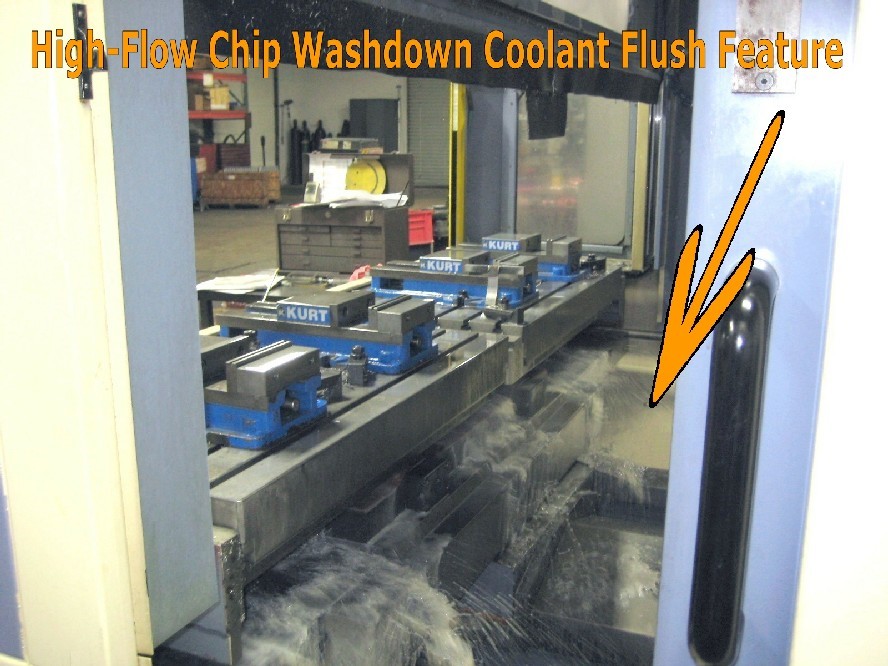

CHIP WASHDOWN/FLUSH COOLANT FEATURE (HIGH-FLOW),
SAFETY LIGHT CURTAINS AT SET-UP PALLET (OPTICAL),
PREPPED & PLUMBED FOR COOLANT THRU SPINDLE SYS.,
PNEUMATIC AUTO DOOR FOR PALLET SYSTEM,
(4) DOORS FOR EASE OF ACCESS ON ALL SIDES OF PALLET,
FULLY ENCLOSED GUARDS, ALL AVAILABLE MANUALS
***THIS PRICE INCLUDES THE $600.00 LOADING/PREP. FEE***
