MILLTRONICS VM17 CNC MILL, CENTURION 7, 30 x 16 x 24, CAT 40 TAPER, SIDE MOUNT TOOL CHANGER, 8000 RPM, NEW 2004
Stock Number: 4747

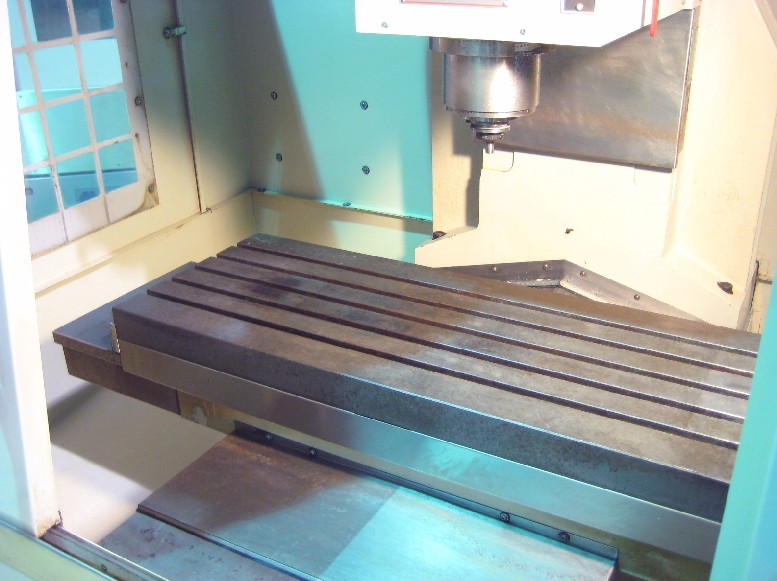

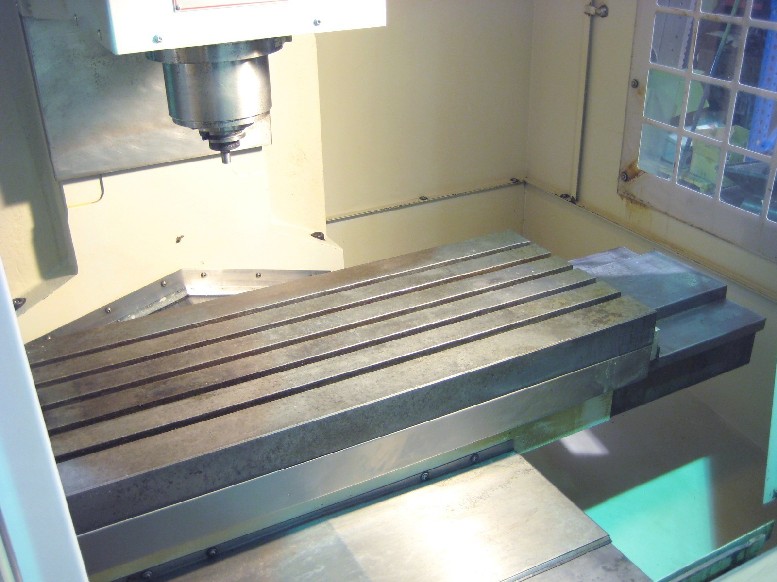

Click to view larger photo
Request a quote on stock# 4747
| Specification | Description |
|---|
| DATE OF MFG | 2004 |
| TABLE SIZE | 45" x 16" |
| MAXIMUM TABLE LOAD | 1000 LBS |
| X AXIS TRAVEL | 30" |
| Y AXIS TRAVEL | 16" |
| Z AXIS TRAVEL | 24" |
| SPINDLE NOSE TO TABLE TOP | 28.5" |
| RAPID TRAVERSE RATE X & Y AXES | 1000 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 50 - 8000 RPM |
| SPINDLE MOTOR | 18 HP |
| TOOL CHANGER CAPACITY, TOOLS | (16) SIDE-MOUNTED POCKET-ARM |
| WEIGHT, APPROX. | 9,400 LBS |
| DIMENSIONS, APPROX. | 86" x 68" x 102" H |
Equipped With:
HIGH SPEED CENTURION 7 CNC PC BASED CONTROL,
USB & RS-232C PORTS INTERFACE FOR DNC OPERATION,
FULL CONVERSATIONAL PROGRAMMING, 3-D GRAPHICS,
4TH AXIS PRE-WIRED WITH DRIVE,
SIDE-MOUNTED POCKET-ARM AUTO-TOOL CHANGER,
FANUC G-CODE COMPATIBLE,
CHIP REMOVAL AUGER SYSTEM w/CHUTE,
COOLANT SYSTEM W/TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS,
MADE IN THE USA
