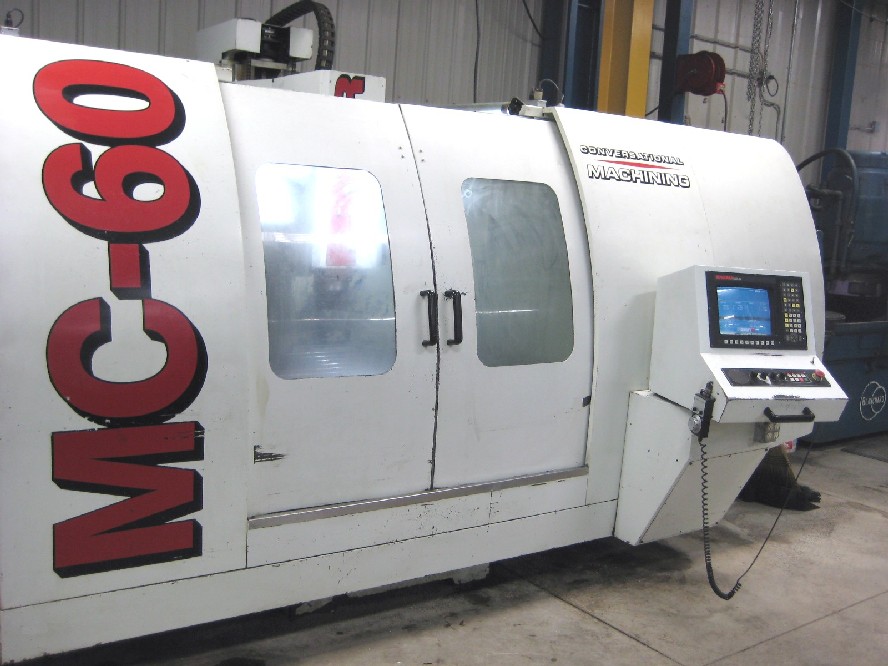

FRYER MC-60 CNC MILL, 60 x 30 x 28, CAT 40, BOX WAY, RIGID TAP, 20 TOOL ATC, CHIP AUGER, ANILAM 5300M, NEW 2000
Stock Number: 4744
Click to view larger photo
Request a quote on stock# 4744
| Specification | Description |
|---|
| MFG DATE | 2000 |
| TABLE SIZE | 67" x 24" |
| MAXIMUM TABLE LOAD | 4,000 LBS |
| SPINDLE NOSE TO TABLE TOP | 2" - 30" |
| X AXIS TRAVEL | 60" |
| Y AXIS TRAVEL | 30" |
| Z AXIS TRAVEL | 28" |
| RAPID TRAVERSE RATE X, Y, Z AXES | 1000 IPM |
| CUTTING FEED RATE | 0.01 - 600 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 6,000 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY | 20 STATION ATC |
| MAXIMUM TOOL WEIGHT | 13.5 LBS |
| WEIGHT, APPROX. | 19,700 LBS |
| DIMENSIONS, APPROX. | 184"L x 108"W x 99"H |
Equipped With:

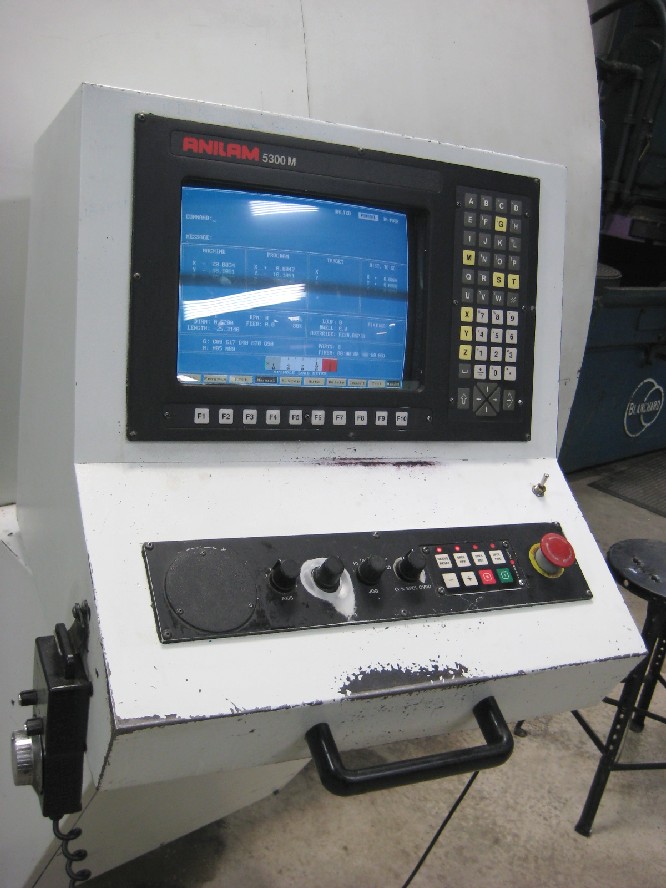

ANILAM 5300M CNC CTRL CONVERSATIONAL & COLOR GRAPHICS,
USB PORT INTERFACE FOR DNC OPERATION,

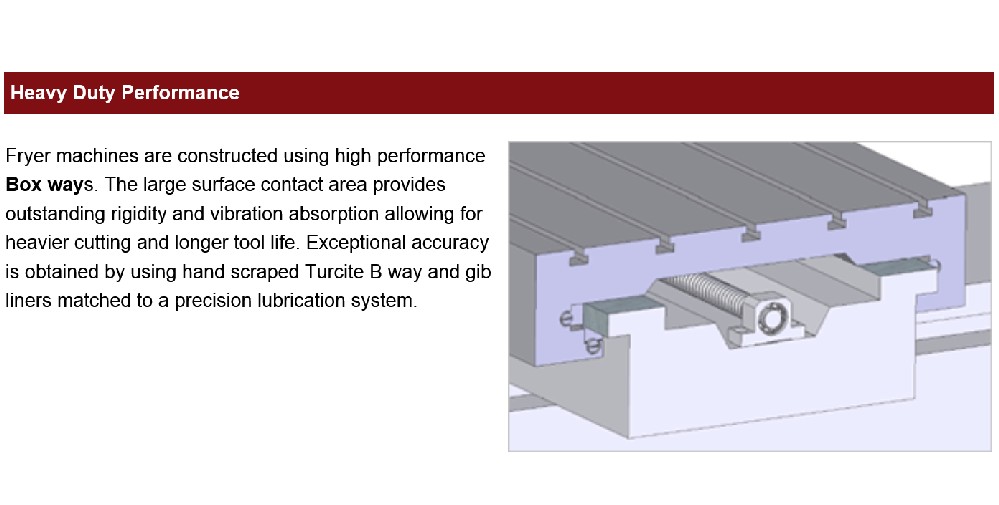

BOX WAY DESIGN, M & G CODE PROGRAMMING,
CHIP REMOVAL AUGER (FULL LENGTH), L.E.D. LIGHTING,
REMOTE JOG HANDLE (HANDWHEEL), FLOPPY DISC DRIVE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
FLOOD COOLANT SYSTEM w/CHIP WASH-DOWN,
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
