MORI SEIKI MV-65 50 TAPER CNC MILL, 50 x 26 x 26, 4000 RPM, BOX WAY, 40 TOOL CHANGER, FANUC MF-M6 (16M) 1997

MORI SEIKI MV-65 50 TAPER CNC MILL, 50 x 26 x 26, 4000 RPM, BOX WAY, 40 TOOL CHANGER, FANUC MF-M6 (16M) 1997

Stock Number: 4743


Click to view larger photo

Request A Quote On Our Stock Number: 4743 MORI SEIKI MV-65 50 TAPER CNC MILL, 50 x 26 x 26, 4000 RPM, BOX WAY, 40 TOOL CHANGER, FANUC MF-M6 (16M) 1997Request a quote on stock# 4743
SpecificationDescription
MFG DATE1997
TABLE SIZE67" x 26"
MAXIMUM TABLE LOAD4,400 LBS
SPINDLE NOSE TO TABLE TOP7.9" - 33.5"
X AXIS TRAVEL50.0"
Y AXIS TRAVEL25.6"
Z AXIS TRAVEL25.6"
RAPID TRAVERSE RATE X & Y AXES590 IPM
RAPID TRAVERSE RATE Z AXIS472 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS (2 SPEED GEAR BOX)4,000 RPM
SPINDLE MOTOR20 HP
TOOL CHANGER CAPACITY40 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)2/3 SECONDS
MAXIMUM TOOL WEIGHT44 LBS
WEIGHT, APPROX.29,800 LBS
DIMENSIONS, APPROX.172"L x 152"W x 124"H

Equipped With:

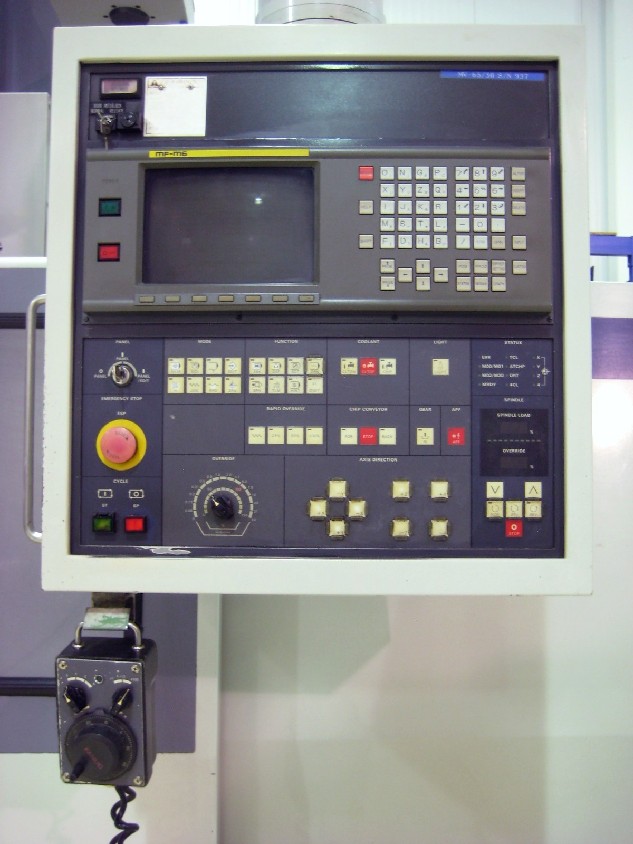

FANUC MF-M6 (16M) CNC CONTROL WITH 10" SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE PULSE GENERATOR, SPINDLE CHILLER,
SIDE MOUNT 40 STATION SWING ARM ATC,
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING,
ALL AVAILABLE MANUALS

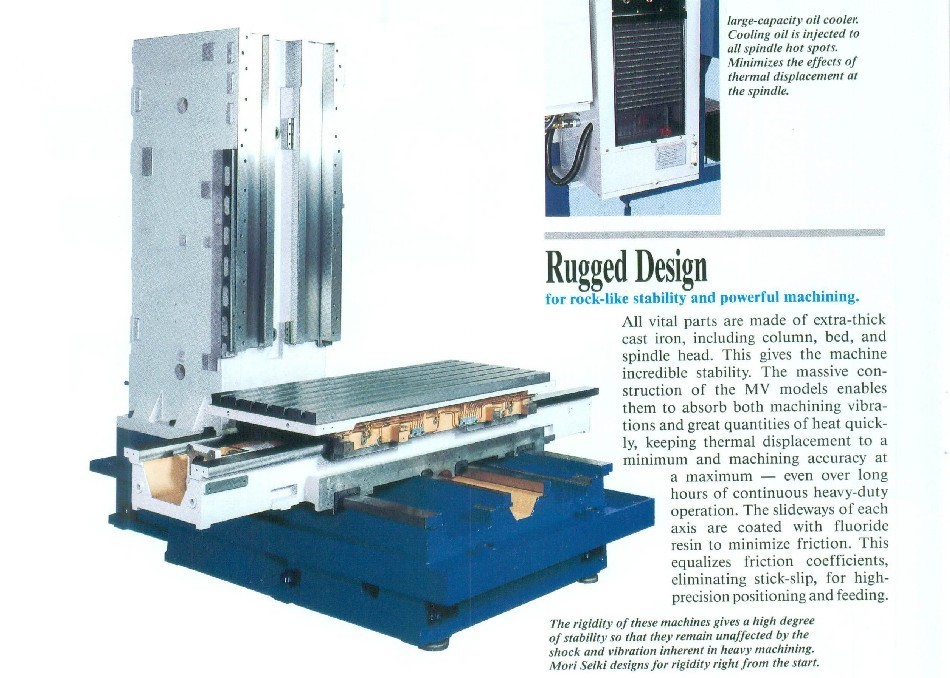

***RIGID BOX WAY DESIGN***
****VIDEO AVAILABLE UPON REQUEST****
