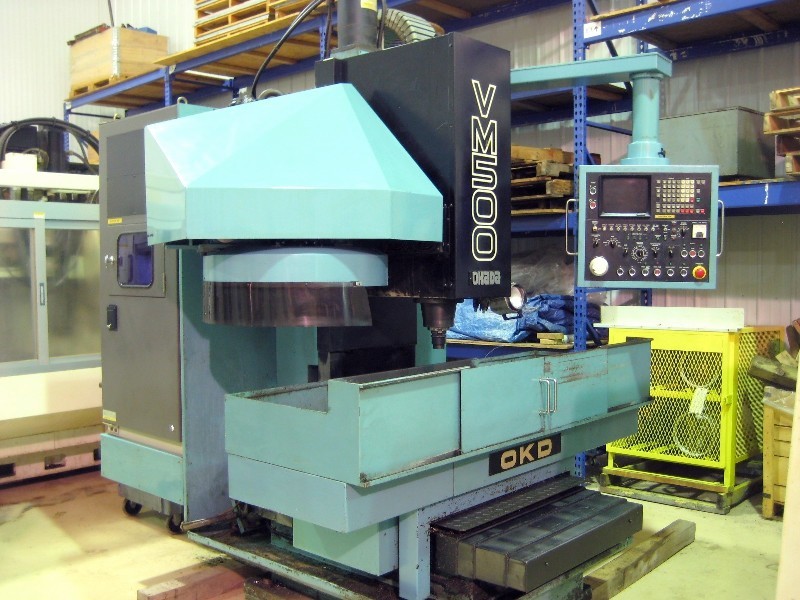

OKADA VM500 CNC MILL, FANUC 6M, 27 x 17 x 25, 20 TOOL ATC , RIGID TAP VMC

OKADA VM500 CNC MILL, FANUC 6M, 27 x 17 x 25, 20 TOOL ATC , RIGID TAP VMC

Stock Number: 4737


Click to view larger photo

Request A Quote On Our Stock Number: 4737 OKADA VM500 CNC MILL, FANUC 6M, 27 x 17 x 25, 20 TOOL ATC , RIGID TAP VMCRequest a quote on stock# 4737
SpecificationDescription
MANUFACTURE DATE1984
TABLE SIZE35.4" x 19.9"
MAXIMUM TABLE LOAD990 LBS
SPINDLE NOSE TO TABLE TOP5.5" - 27.6"
X AXIS TRAVEL27.6"
Y AXIS TRAVEL16.9"
Z AXIS TRAVEL24.8"
RAPID TRAVERSE RATE X, Y, Z AXES472 IPM
SPINDLE TAPERBT 40
SPINDLE SPEEDS (2-SPEED GEARBOX)60 - 6000 RPM
SPINDLE MOTOR7.5 HP
TOOL CHANGER CAPACITY20 STATION ATC
MAXIMUM TOOL WEIGHT13 LBS
WEIGHT, APPROX.10,400 LBS
DIMENSIONS, APPROX.82"L x 94"W x 108"H

Equipped With:
FANUC 6M CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT SYSTEM WITH TANK & PUMP,
PARTIAL ENCLOSED GUARDING, WORK LAMP,
ALL AVAILABLE MANUALS
