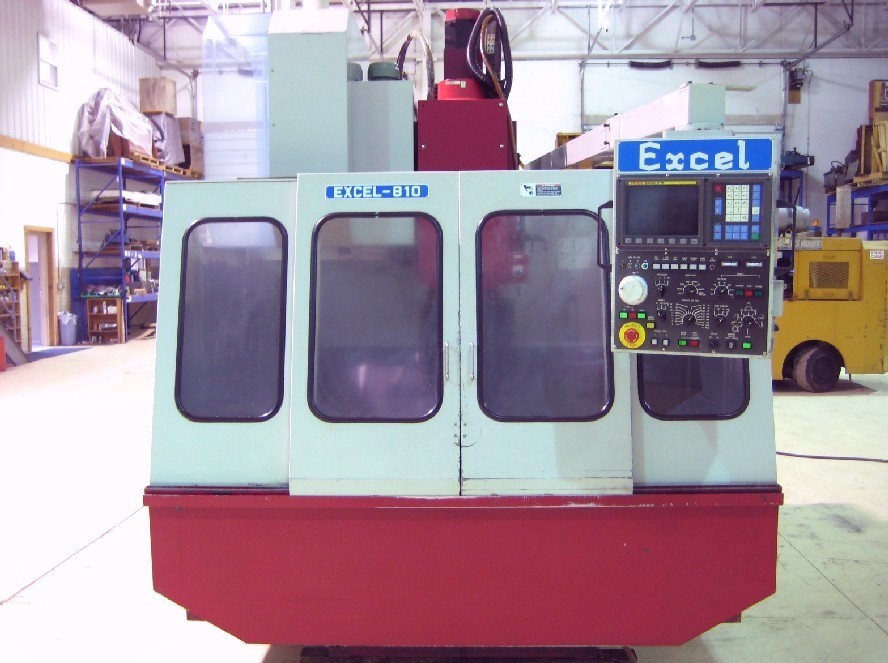

EXCEL 810 CNC MILL, FANUC 0M, 32 x 20 x 22, SWING ARM TOOL ATC , RIGID TAP VMC, '94

EXCEL 810 CNC MILL, FANUC 0M, 32 x 20 x 22, SWING ARM TOOL ATC , RIGID TAP VMC, '94

Stock Number: 4732


Click to view larger photo

Request A Quote On Our Stock Number: 4732 EXCEL 810 CNC MILL, FANUC 0M, 32 x 20 x 22, SWING ARM TOOL ATC , RIGID TAP VMC, '94Request a quote on stock# 4732
SpecificationDescription
MANUFACTURE DATE MANUFAC1994

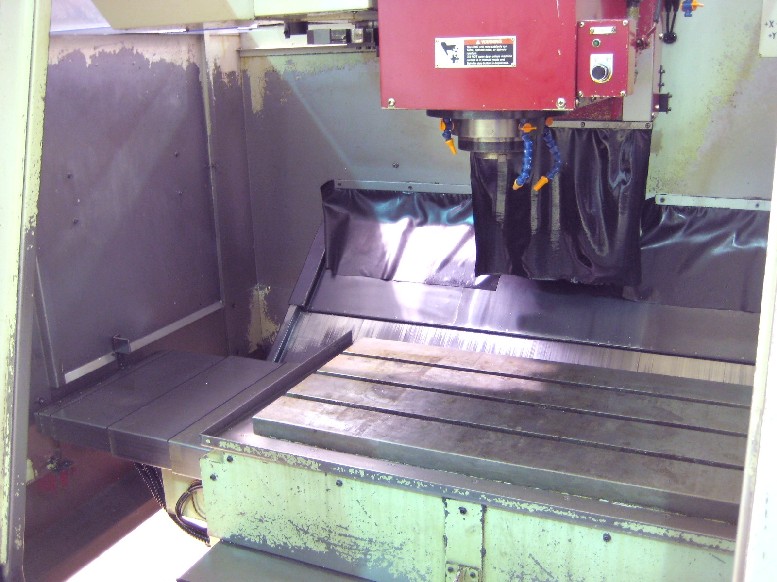

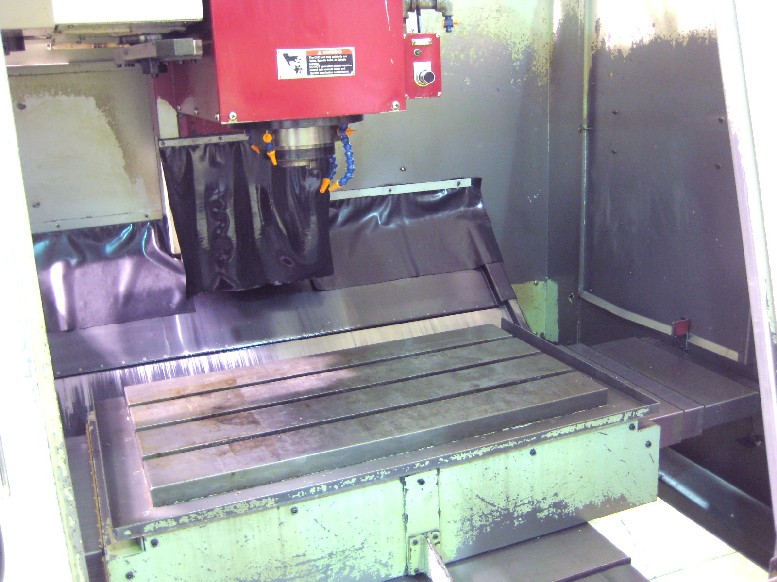

TABLE SIZE35.4" x 18.9"
MAXIMUM TABLE LOAD882 LBS 882 LBS 882 LBS 882
SPINDLE NOSE TO TABLE TOP5.5" - 27.6"
X AXIS TRAVEL31.9"
Y AXIS TRAVEL20.1"
Z AXIS TRAVEL22"
RAPID TRAVERSE RATE X & Y AXES630 IPM
RAPID TRAVERSE RATE Z AXIS512 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS6000 RPM
SPINDLE MOTOR13 HP
TOOL CHANGER CAPACITY24 + 1 (SIDE/SWING ARM)
TOOL CHANGE TIME (TOOL TO TOOL)2 SECONDS
MAXIMUM TOOL WEIGHT13 LBS
WEIGHT, APPROX.12400 LBS
DIMENSIONS, APPROX.82"L x 94"W x 98"H

Equipped With:

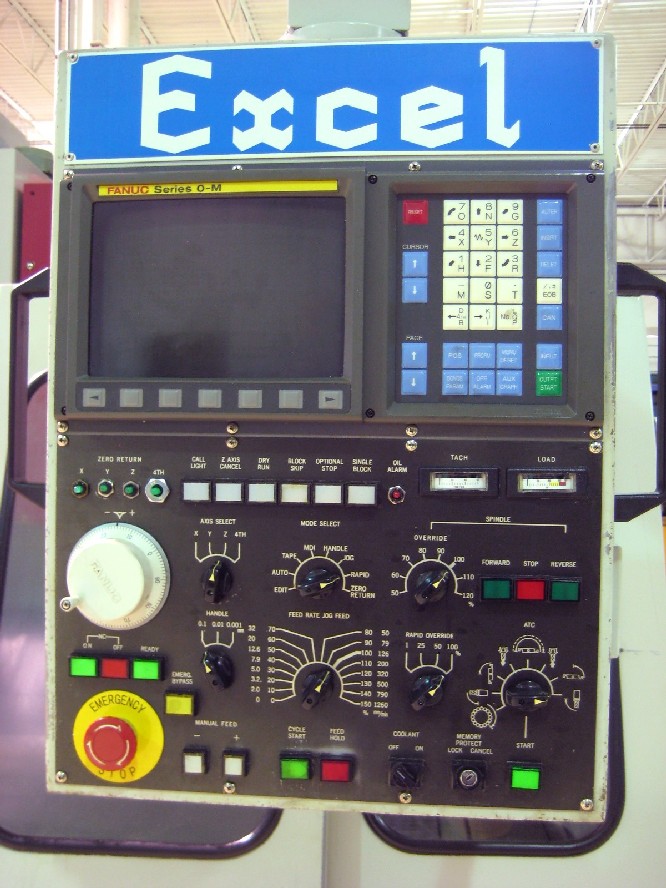

FANUC O-M CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,

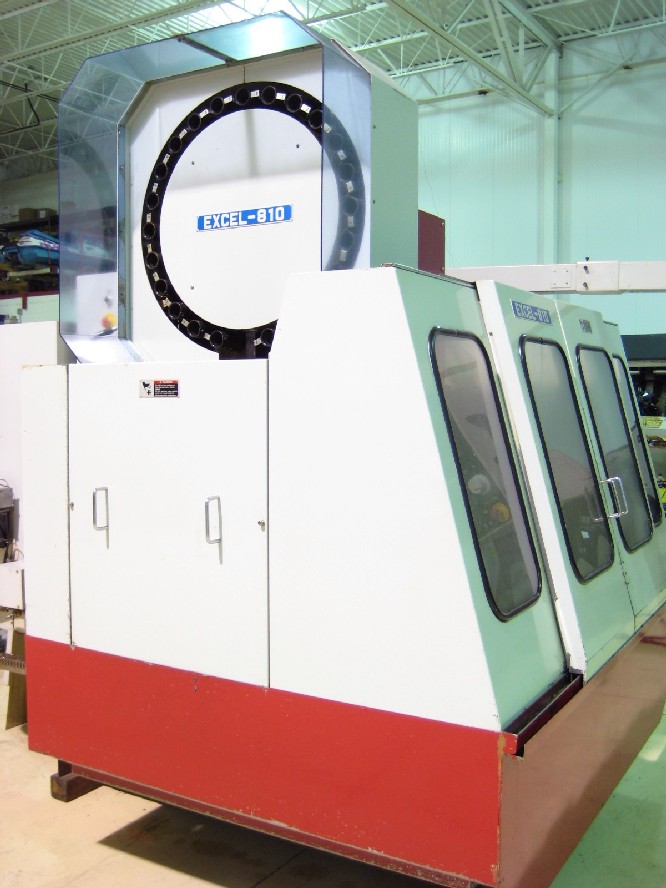

SWING-ARM SIDE-MOUNT 24 + 1 STATION AUTO TOOL CHANGER,
HELICAL INTERPOLATION, USER CUSTOM MACROS,
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, WORK LAMP,
ALL AVAILABLE MANUALS
