MILLTRONICS RH-30 CNC MILL, CENTURION 7, 60 x 30 x 28, 8000 RPM, 16 AUTO TOOL CHANGER, CAT 40, 24 HP, 2007

MILLTRONICS RH-30 CNC MILL, CENTURION 7, 60 x 30 x 28, 8000 RPM, 16 AUTO TOOL CHANGER, CAT 40, 24 HP, 2007

Stock Number: 4724

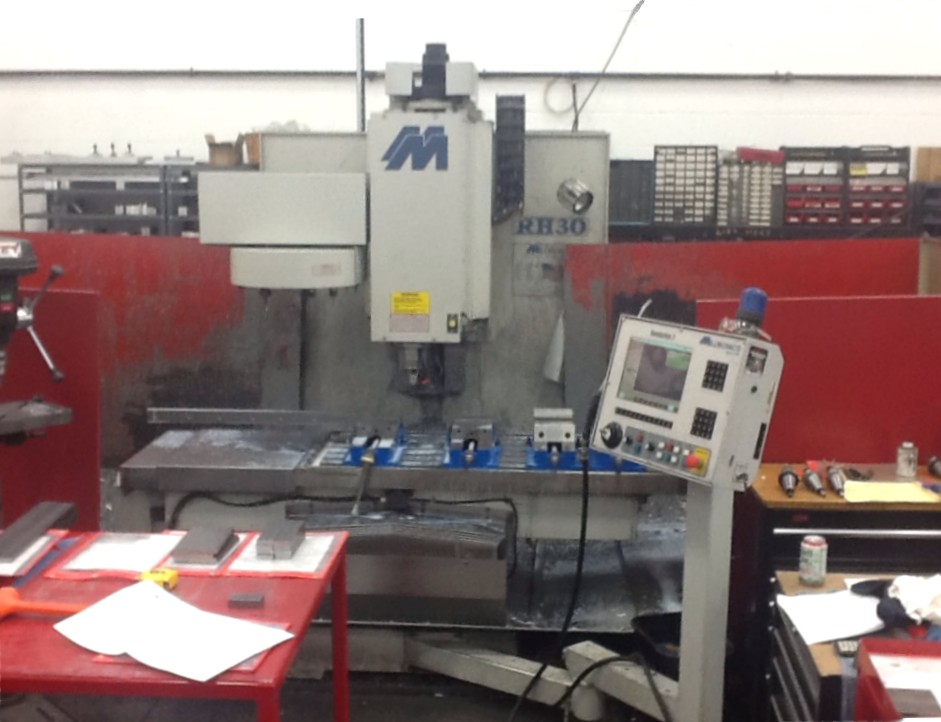

Click to view larger photo

Request A Quote On Our Stock Number: 4724 MILLTRONICS RH-30 CNC MILL, CENTURION 7, 60 x 30 x 28, 8000 RPM, 16 AUTO TOOL CHANGER, CAT 40, 24 HP, 2007Request a quote on stock# 4724
SpecificationDescription
DATE OF MANUFACTURE2007
TABLE SIZE73" x 24"
MAXIMUM TABLE LOAD3,000 LBS
SPINDLE NOSE TO TABLE TOP3.0" - 31.0"
X AXIS TRAVEL60"
Y AXIS TRAVEL30"
Z AXIS TRAVEL28"
RAPID TRAVERSE RATE X & Y AXES500 IPM
RAPID TRAVERSE RATE Z AXIS400 IPM
CUTTING FEED RATE0.1 - 300 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS50 - 8,000 RPM
SPINDLE MOTOR24 HP
TOOL CHANGER CAPACITY16 STATION ATC
MAXIMUM TOOL WEIGHT15 LBS
MACHINE WEIGHT11,800 LBS
APPROXIMATE DIMENSIONS169" x 99" x 133"

Equipped With:
CENTURION 7 FULL CONVERSATIONAL CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
w/OPTIONAL AUTOMATIC TOOL CHANGER,
RIGID TAPPING (SYNCHRONOUS TAPPING/ SOLID TAPPING),
OPTIONAL EXTENDED MEMORY 725K TOTAL STORAGE,
STANDARD COOLANT SYSTEM,
ALL AVAILABLE MANUALS
