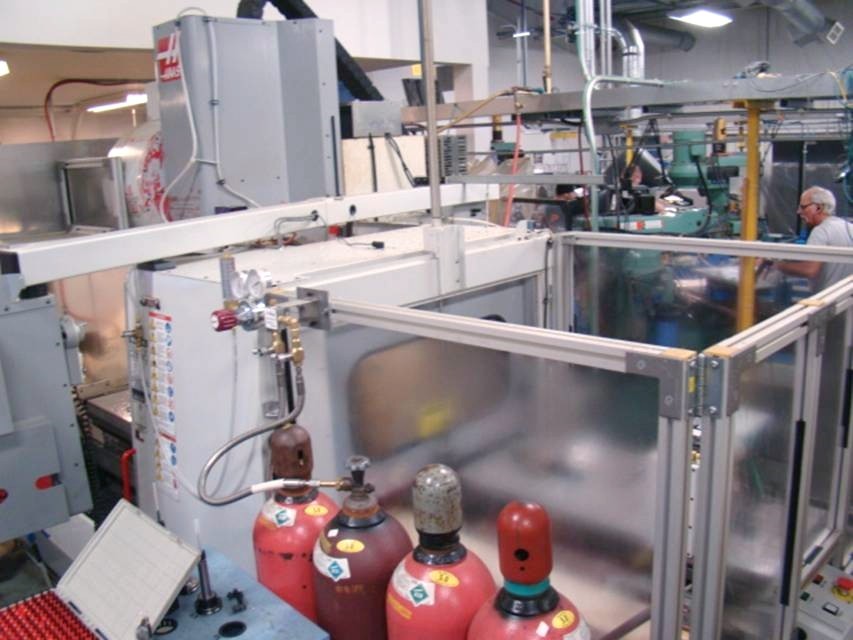

HAAS VF-3 /APC PALLET CHANGER CNC MILL, 40 x 20 x 25, 15000 RPM, 20 HP, THROUGH SPINDLE COOLANT, SIDE ATC, LOADED, 2001
Stock Number: 4723
Click to view larger photo
Request a quote on stock# 4723
| Specification | Description |
|---|
| MFG DATE / INSTALLED NEW | 11/2000 - 2001 |
| PALLET SIZE | 40" x 19" |
| NUMBER OF PALLETS | 2 |
| MAXIMUM PALLET LOAD | 1,000 LBS |
| PALLET CHANGE TIME | 30 SECONDS |
| SPINDLE NOSE TO PALLET TOP | 4" - 29" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 25" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 710 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 15,000 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY | 24 + 1 (SIDE MOUNT) |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| WEIGHT, APPROX. | 15,400 LBS |
| DIMENSIONS, APPROX. | 180"L x 100"W x 106"H |
Equipped With:

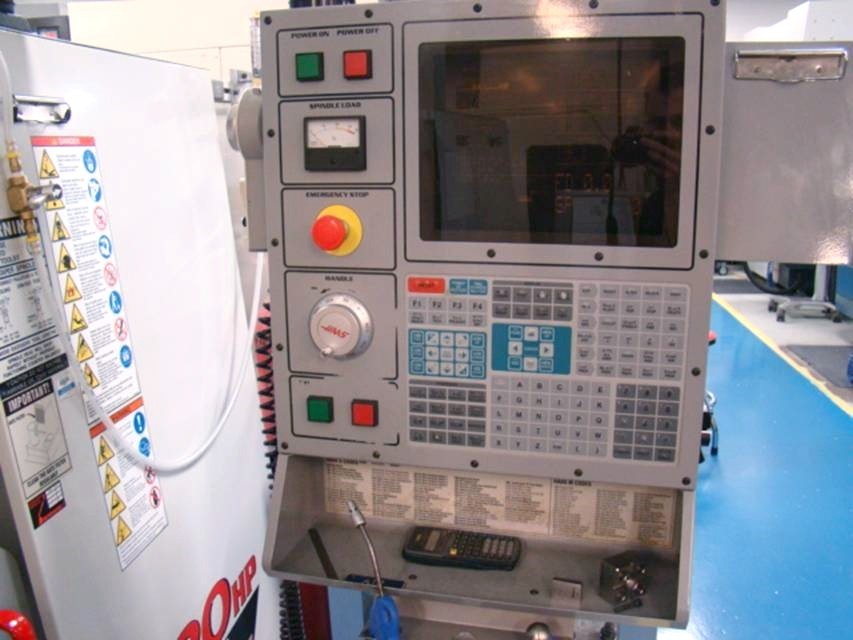

HAAS DUAL 32-BIT CNC CTRL w/12" COLOR LCD & RS-232 PORT,
HIGH SPEED MACHINING 1000 BPS LOOK AHEAD, RIGID TAPPING,
FACTORY INSTALLED AUTOMATIC 2-PALLET CHANGER,
THROUGH SPINDLE COOLANT w/300 POUND-FORCE (PSI),
w/OPTIONAL 15000 RPM SPINDLE, SPINDLE ORIENTATION,
24 STATION SWING ARM ATC, COORDINATE ROTATION & SCALING,
PRE-WIRED FOR 4TH AXIS ROTARY TABLE (NO ROTARY INCLUDED),
REMOTE JOG HANDLE, QUICKCODE PROGRAMMING, 1 MB MEMORY,
PROGRAMMABLE COOLANT NOZZLE, DELTA WYE MOTOR,
FLOPPY DISK DRIVE, CHIP AUGER, COOLANT SYTEM w/PUMP,
CUSTOM (USER DEF.) MACRO PROGRAMMING (TRUE LANGUAGE),
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
