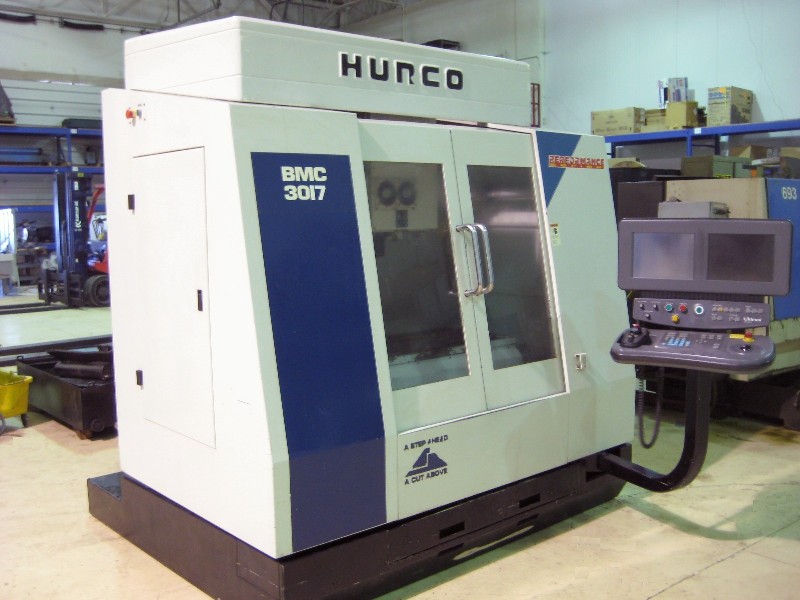

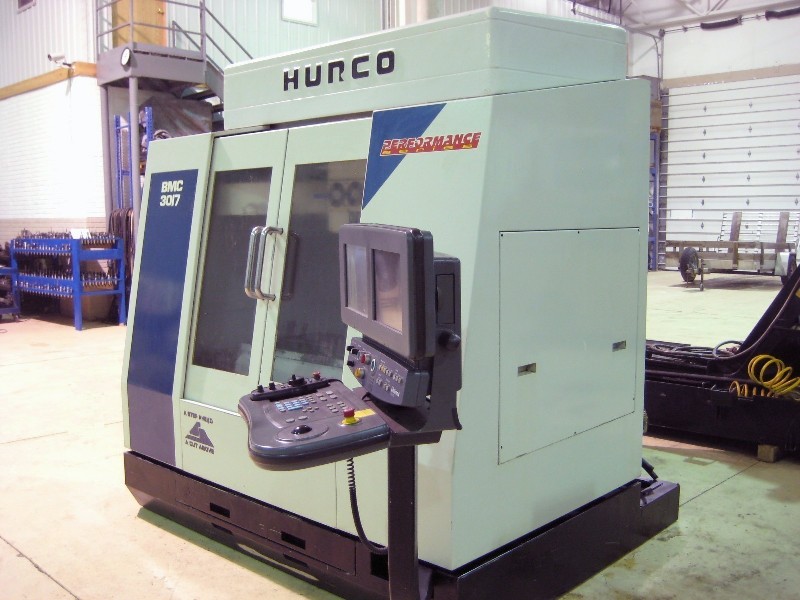

HURCO BMC-3017 CNC MILL, ULTIMAX 3, 30 x 17 x 24, 12000 RPM, RIGID TAP, '98
Stock Number: 4719
Click to view larger photo
Request a quote on stock# 4719
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 1998 |
| TABLE SIZE | 40.1" x 15.7" |
| MAXIMUM PALLET LOAD | 1,100 LBS |
| SPINDLE NOSE TO PALLET TOP | 6" - 30" |
| X AXIS TRAVEL | 30" |
| Y AXIS TRAVEL | 17" |
| Z AXIS TRAVEL | 24" |
| RAPID TRAVERSE RATE X & Y AXES | 590 IPM |
| RAPID TRAVERSE RATE Z AXIS | 394 IPM |
| CUTTING FEED RATE | 0.1 - 300 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (DUAL WOUND MOTOR) | 12,000 RPM |
| SPINDLE MOTOR | 10 HP |
| TOOL CHANGER CAPACITY | 24 ATC |
| MAXIMUM TOOL WEIGHT | 15 LBS |
| WEIGHT, APPROX. | 9,000 LBS |
| DIMENSIONS, APPROX. | 86" x 87" x 106" |
Equipped With:
ULTIMAX 3 FULL CONVERSATIONAL CNC CONTROL (DUAL SCREEN),
RS232 SERIAL PORT INTERFACE FOR COMMUNICATIONS,
w/OPTIONAL 12000 RPM SPINDLE, UPGRADED SOFTWARE,
HEIDENHAIN GLASS SCALES ON ALL AXIS (X Y Z),
CONVERSATIONAL PROGRAMMING WITH GRAPHICS,
PRE-WIRED FOR 4TH AXIS WITH DRIVE,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
REMOTE JOG CONTROLLER, 3.5" 1.44MB FLOPPY DISK DRIVE,
EXTENDED MEMORY, ADVANCED POCKET MILLING,
SHOWER/FLUSHING & FLOOD COOLANT,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
