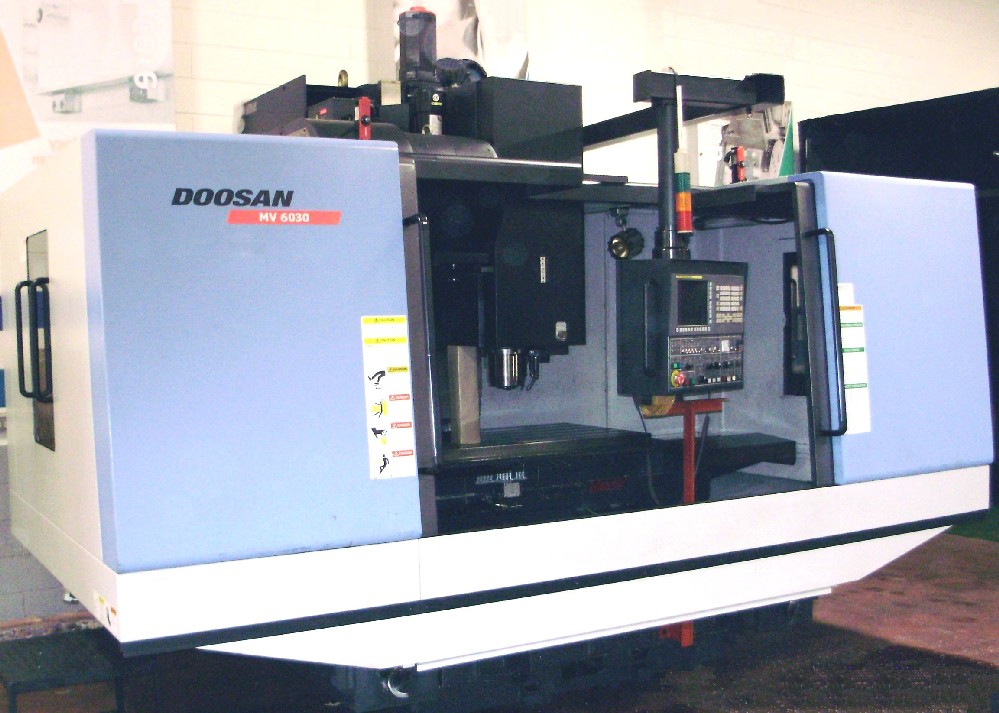

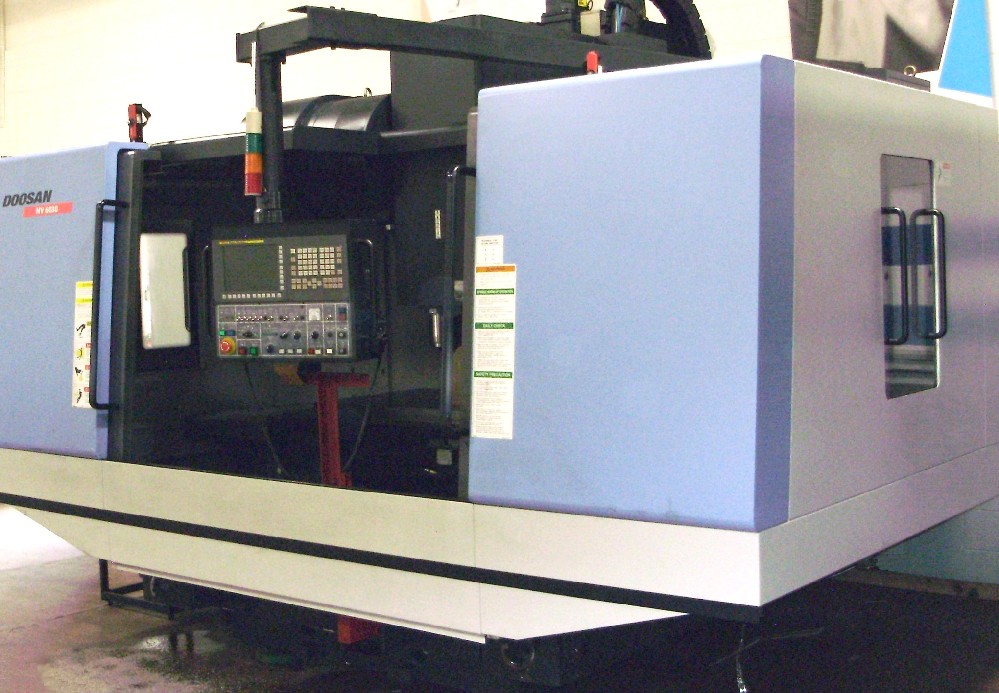

DOOSAN MV6030 CNC MILL, FANUC 32i-A, 60 x 30 x 25, 12000 RPM COOLANT THRU SPINDLE, 35 HP, 1200 IPM RAPIDS, BOX WAY, '09

DOOSAN MV6030 CNC MILL, FANUC 32i-A, 60 x 30 x 25, 12000 RPM COOLANT THRU SPINDLE, 35 HP, 1200 IPM RAPIDS, BOX WAY, '09

Stock Number: 4713


Click to view larger photo

Request A Quote On Our Stock Number: 4713 DOOSAN MV6030 CNC MILL, FANUC 32i-A, 60 x 30 x 25, 12000 RPM COOLANT THRU SPINDLE, 35 HP, 1200 IPM RAPIDS, BOX WAY, '09Request a quote on stock# 4713
SpecificationDescription
MFG DATE / INSTALLED NEW2009 / 2010
TABLE SIZE63" x 30"
MAXIMUM TABLE LOAD3400 LBS
X AXIS TRAVEL60"
Y AXIS TRAVEL30"
Z AXIS TRAVEL25"
SPINDLE NOSE TO TABLE TOP6" - 31"
RAPID TRAVERSE RATE X & Y AXES1181 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS12,000 RPM
SPINDLE MOTOR35 HP
TOOL CHANGER CAPACITY40 STATION, SIDE MOUNTED SWING
FLOOR SPACE, DIMENSIONS, APPROX.160"L x 140"W x 130"H
WEIGHT, APPROX.36,700 LBS

Equipped With:
FANUC 32i-A CNC COLOR CONTROL,
ETHERNET & RS-232C COMMUNICATIONS PORT (DNC),
COOLANT THROUGH THE SPINDLE (230 PSI),
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
LNS CHIP CONVEYOR & (2) CHIP AUGERS,
SPINDLE CHILLER & OIL COOLER,
HANDHELD REMOTE JOG,
SHOWER/FLUSHING & FLOOD COOLANT,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
**RIGID BOX WAY CONSTRUCTION**LOW HOURS**
