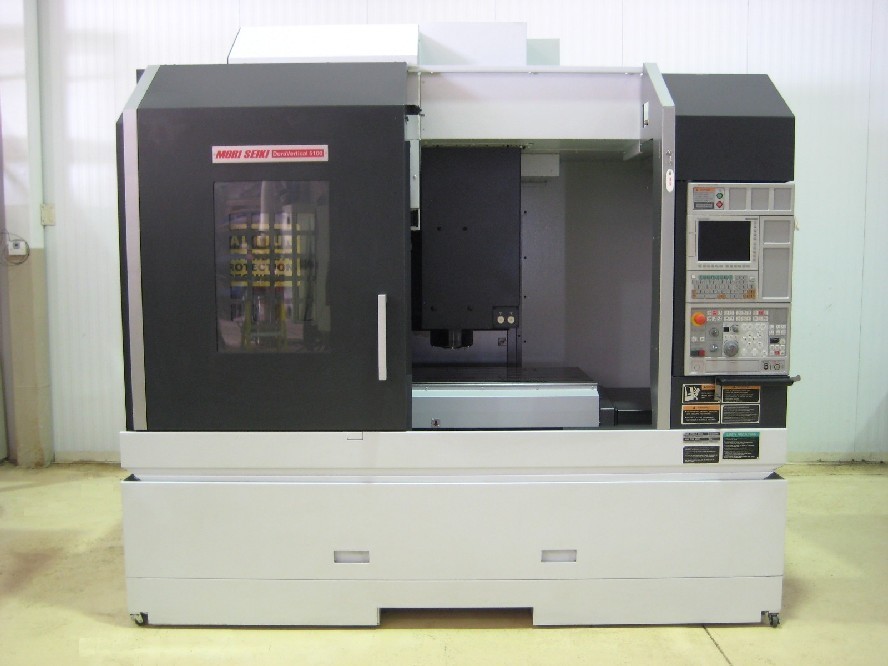

MORI SEIKI DURAVERTICAL 5100 CNC MILL, 41 x 21 x 20, 12000 RPM, 20HP, CHIP AUGER, FANUC FOiMD, New 2011

MORI SEIKI DURAVERTICAL 5100 CNC MILL, 41 x 21 x 20, 12000 RPM, 20HP, CHIP AUGER, FANUC FOiMD, New 2011

Stock Number: 4709


Click to view larger photo

Request A Quote On Our Stock Number: 4709 MORI SEIKI DURAVERTICAL 5100 CNC MILL, 41 x 21 x 20, 12000 RPM, 20HP, CHIP AUGER, FANUC FOiMD, New 2011Request a quote on stock# 4709
SpecificationDescription
MFG DATE2011

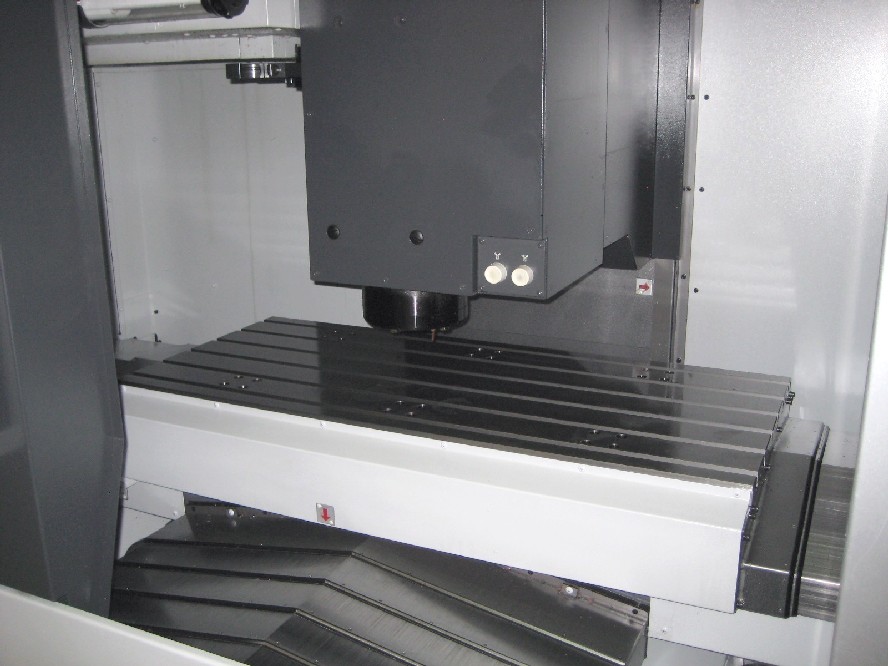

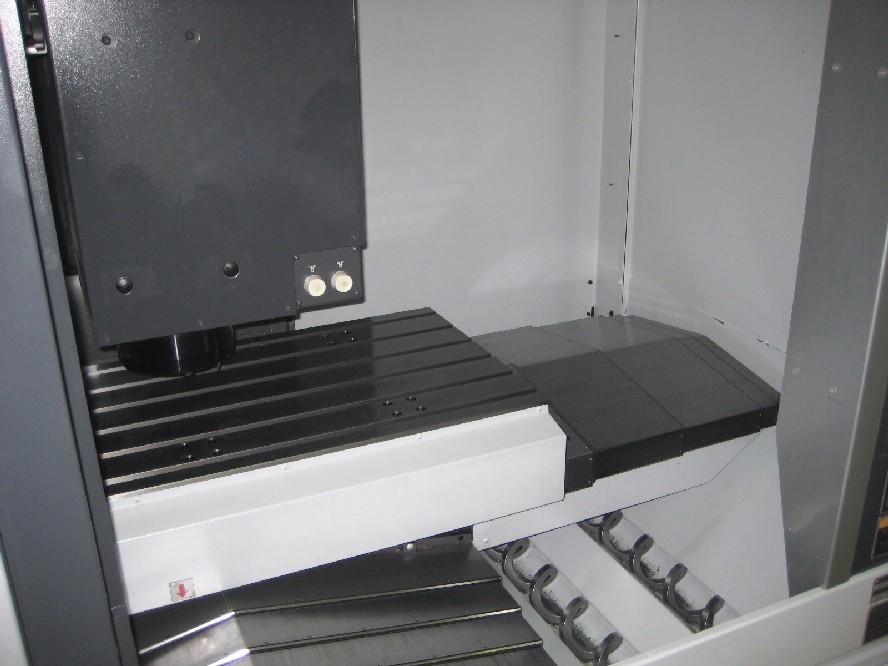

TABLE SIZE53.1" x 23.6"
MAXIMUM TABLE LOAD2,200 LBS
SPINDLE NOSE TO TABLE TOP5.9" - 26"
X AXIS TRAVEL41.3"
Y AXIS TRAVEL20.9"
Z AXIS TRAVEL20.1"
RAPID TRAVERSE RATE X & Y AXES1417 IPM
RAPID TRAVERSE RATE Z AXIS787 IPM
SPINDLE SPEEDS12,000 RPM
SPINDLE TAPERCAT 40
SPINDLE MOTOR20 HP

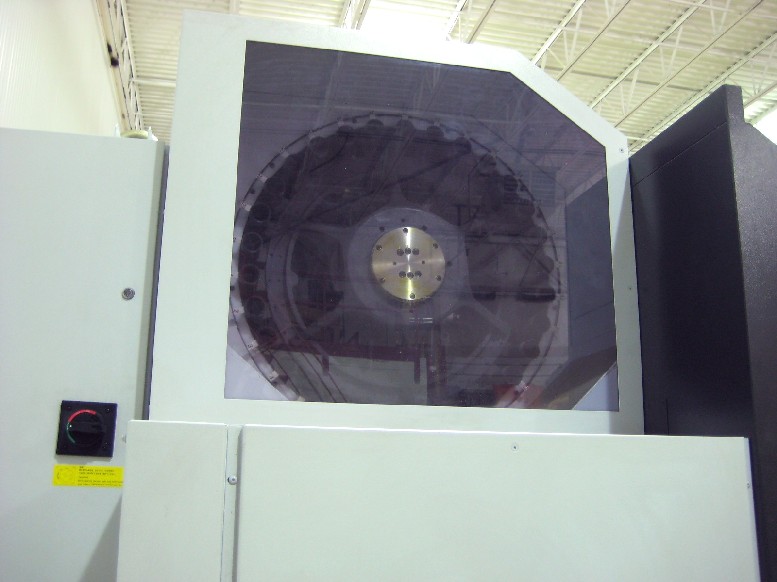

TOOL CHANGER CAPACITY30 STATION ATC
MAXIMUM TOOL WEIGHT17.6 LBS
TOOL CHANGE TIME (TOOL TO TOOL)1.3 SECONDS
WEIGHT, APPROX.16,000 LBS
DIMENSIONS, APPROX.132" x 95" x 109"

Equipped With:

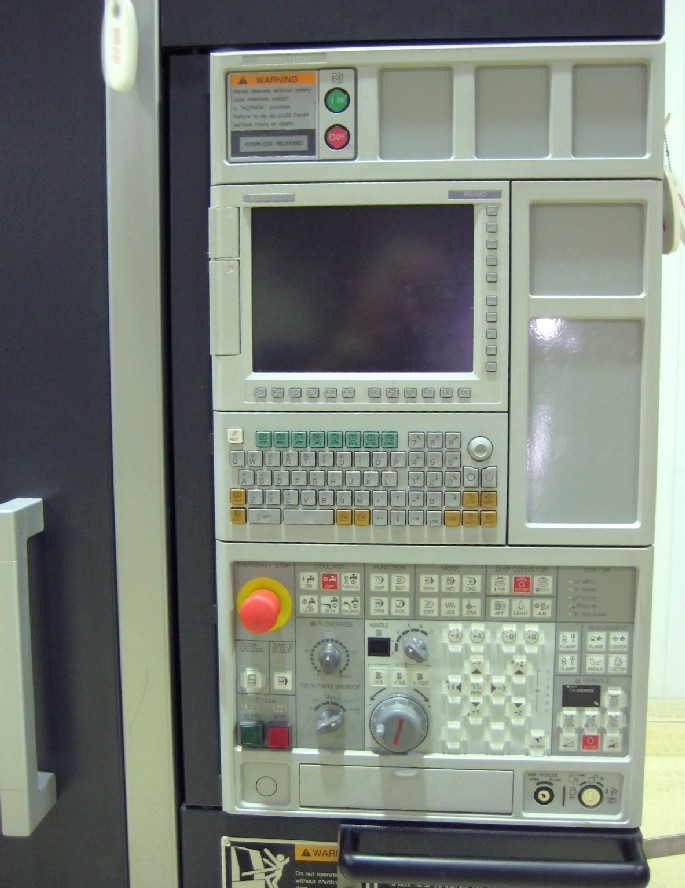

MORI SEIKI FOiMD CNC CTRL w/CONTOURING & ATA KIT (1 GB),
FANUC FAST DATA SERVER FUNCTION (A02B-0320-S737),
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
PLUMBED FOR HIGH-PRESSURE THRU-SPINDLE COOLANT w/ELECTRICS,

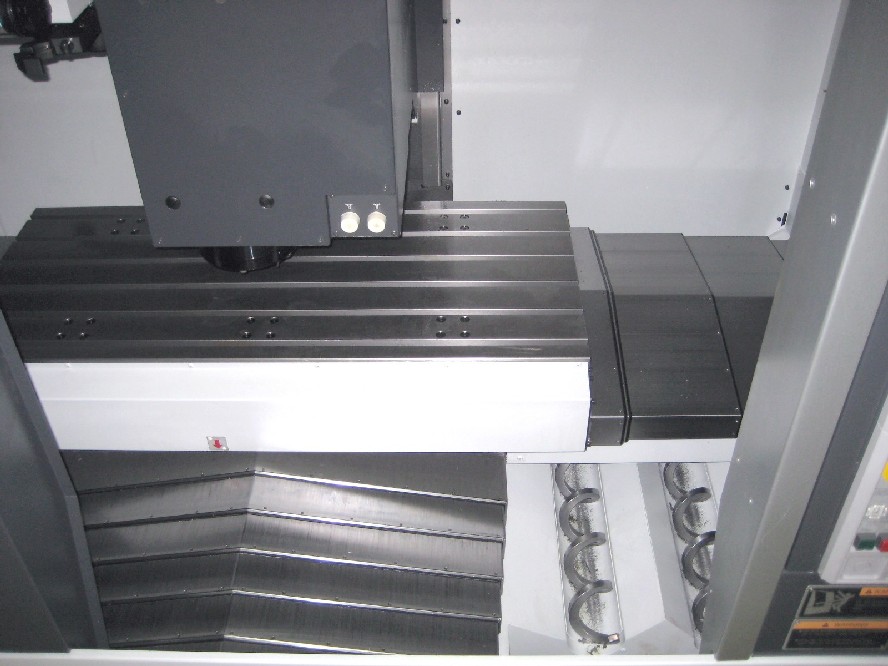

(4) CHIP REMOVAL AUGERS, USB COM. PORT,
PRE-WIRED w/SERVO-DRIVE FOR A 4TH AXIS,
(400) TOOL OFFSETS & (54) WORK OFFSETS, MAPPS SOFTWARE I98868A17
DAIKIN INDUSTRIES OIL COOLING UNIT,
ROLL-OUT COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
***SUPER CLEAN***SUPER LOW HOURS***
***Video Available Upon Request***
