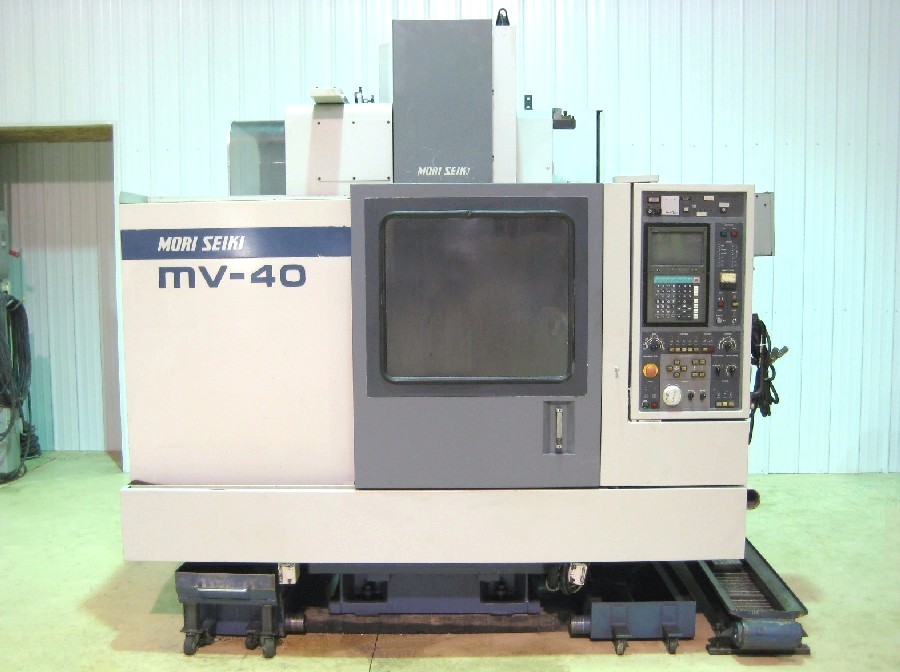

MORI SEIKI MV-40 B CNC MILL, 32 x 16 x 20 TRVLS, 80000 RPM, CAT 40, CHIP CONVEYOR, BOX WAY, SPINDLE CHILLER, 1994

MORI SEIKI MV-40 B CNC MILL, 32 x 16 x 20 TRVLS, 80000 RPM, CAT 40, CHIP CONVEYOR, BOX WAY, SPINDLE CHILLER, 1994

Stock Number: 4706


Click to view larger photo

Request A Quote On Our Stock Number: 4706 MORI SEIKI MV-40 B CNC MILL, 32 x 16 x 20 TRVLS, 80000 RPM, CAT 40, CHIP CONVEYOR, BOX WAY, SPINDLE CHILLER, 1994Request a quote on stock# 4706
SpecificationDescription
MANUFACTURED NEW1994
TABLE SIZE43.3" x 17.7"
MAXIMUM TABLE LOAD1540 LBS
SPINDLE NOSE TO TABLE TOP5.9" - 26"
X AXIS TRAVEL31.5"
Y AXIS TRAVEL16.1"
Z AXIS TRAVEL20.1"
RAPID TRAVERSE RATE X & Y AXES787 IPM
RAPID TRAVERSE RATE Z AXIS591 IPM
CUTTING FEED RATE0.1 - 197 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS80 - 8,000 RPM
SPINDLE MOTOR10 HP

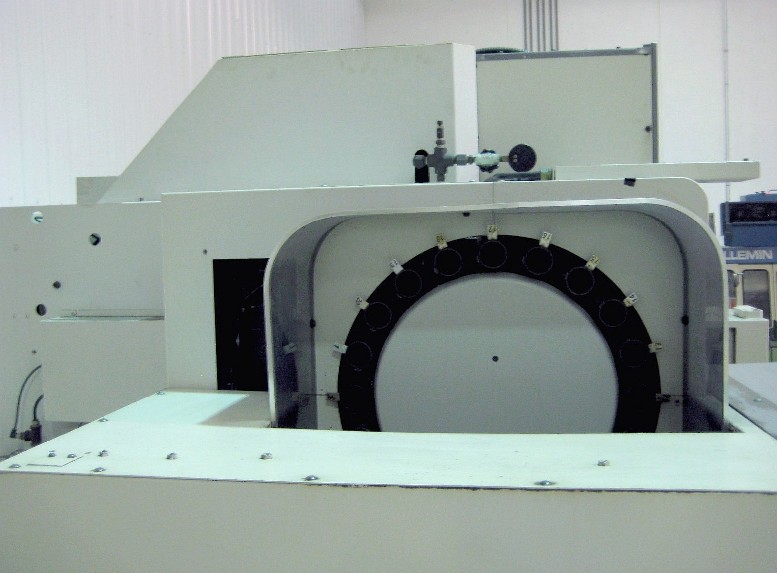

TOOL CHANGER CAPACITY20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)1.5 SECONDS
MAXIMUM TOOL WEIGHT17.6 LBS
WEIGHT, APPROX.14,200 LBS
DIMENSIONS, APPROX.108" x 90" x 105"

Equipped With:

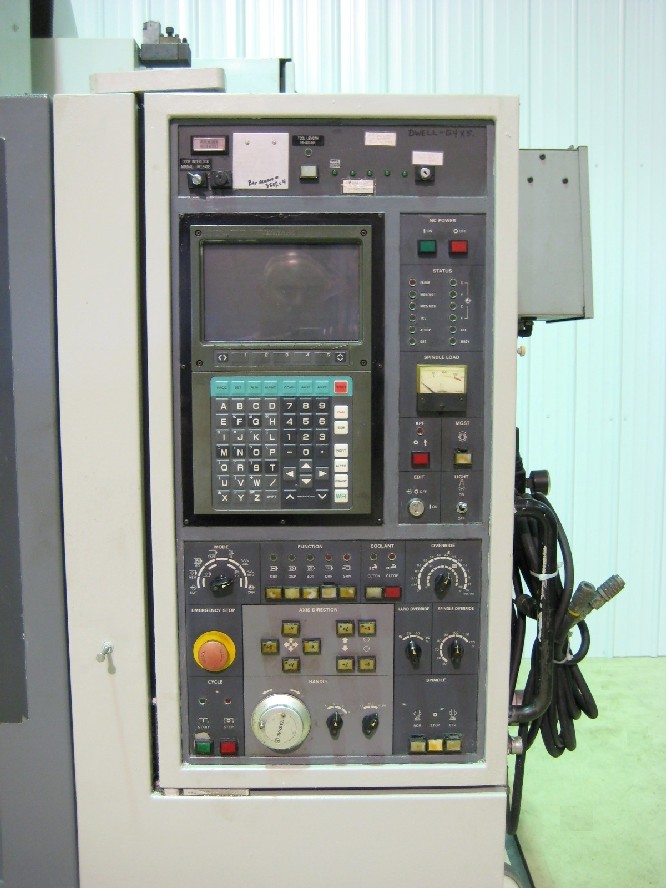

YASNAC i80M COLOR CNC CONTROL,
RS-232 PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING/ SOLID TAPPING),
CHIP CONVEYOR (ROLL-OUT), CHIP SWEEPER (TABLE TYPE),
SPINDLE CHILLER, STANDARD COOLANT SYSTEM,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

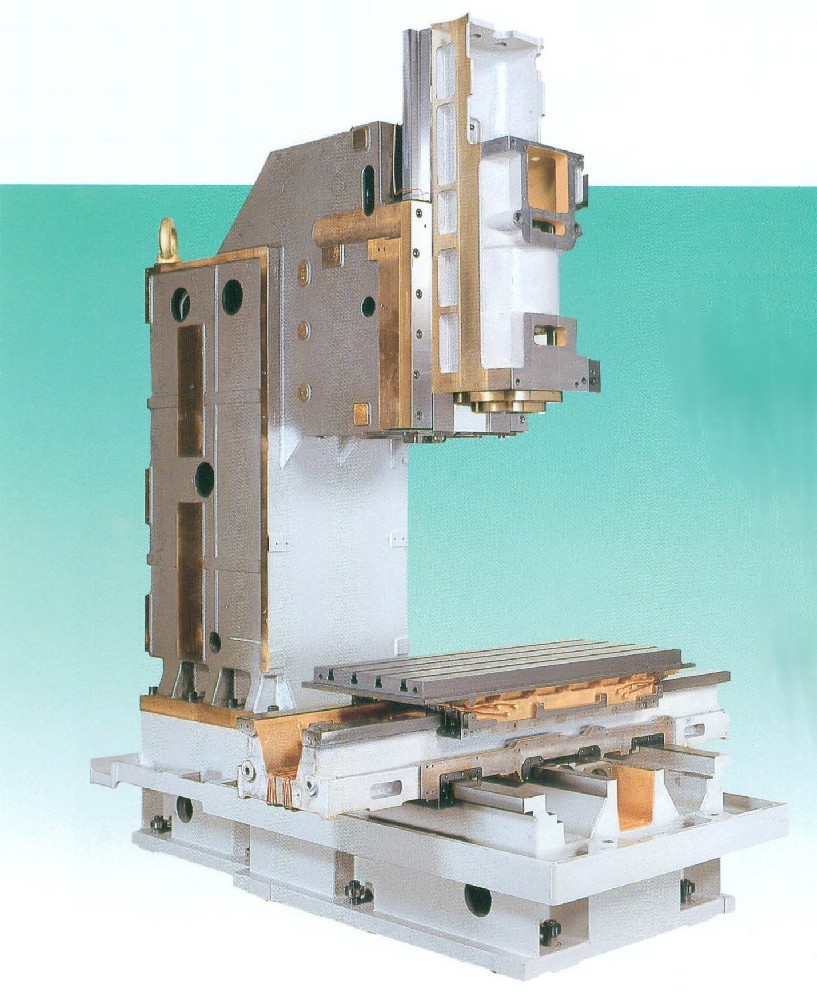

**RIGID BOX WAY**
