FADAL VMC-4020 HT CNC MILL, 40 x 20 x 20, 10000 RPM, 23 HP HIGH TORQUE GEARBOX, BOX WAY, RENISHAW PROBE, CNC-88HS, 1996
Stock Number: 4705

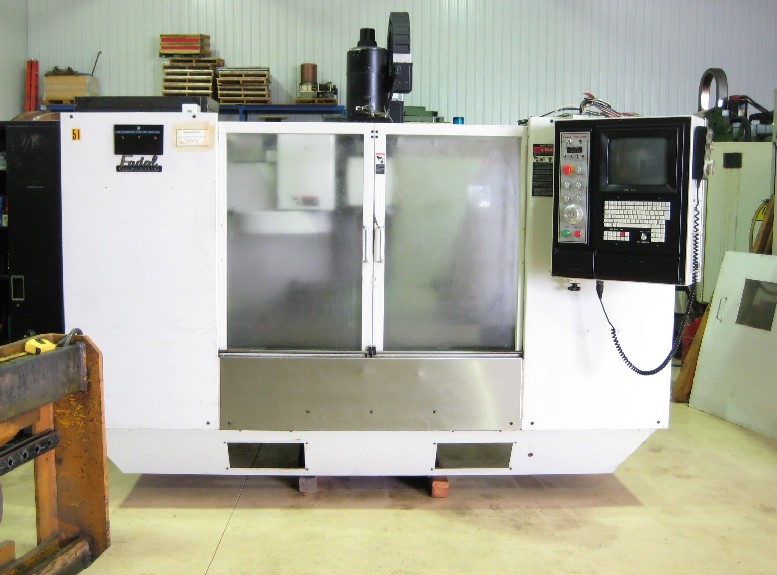

Click to view larger photo
Request a quote on stock# 4705
| Specification | Description |
|---|
| MANUFACTURE DATE | 1996 |
| TABLE SIZE | 48" x 20" |
| MAXIMUM TABLE LOAD | 1,500 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 24" |
| X AXIS TRAVEL | 40" |
| Y AXIS TRAVEL | 20" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X & Y AXES | 900 IPM |
| CUTTING FEED RATE | 0.1 - 200 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 10,000 RPM |
| SPINDLE MOTOR | 22.5 HP (2-SPEED GEARBOX) |
| TOOL CHANGER CAPACITY | 21 STATION ATC |
| MAXIMUM TOOL WEIGHT | 15 LBS |
| MACHINE WEIGHT, APPROX. | 10,800 LBS |
| DIMENSIONS, APPROX. | 116" x 87" x 114" |
Equipped With:
FADAL CNC-MP 32 CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING, HIGH SPEED CPU WITH GRAPHICS,
4TH AXIS PREWIRE, REMOTE JOG HANDLE,
RENISHAW TS-27 TOOL PROBE SYSTEM TO AUTO-DEFINE
TOOL OFFSETS & SIZE/LENGTH/DIAMETER & TOOL BREAKAGE,
HIGH TORQUE SPINDLE, FULLY ENCLOSED GUARDING,
STANDARD COOLANT SYSTEM WITH TANK,
ALL AVAILABLE MANUALS & DOCUMENTATION,
***RIGID BOX WAY CONSTRUCTION***
