CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998

MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998

Stock Number: 4697

CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4697 CNC VERTICAL MACHINING CENTERS: MORI SEIKI SV-500 B/40 CNC MILL, 40 x 20 x 20, 10000 RPM, 30 HP, 1260 RAPIDS, CAT 40, FAST VMC, MSC/FANUC Ctrl, NEW 1998Request a quote on stock# 4697
SpecificationDescription
MFG DATE1998

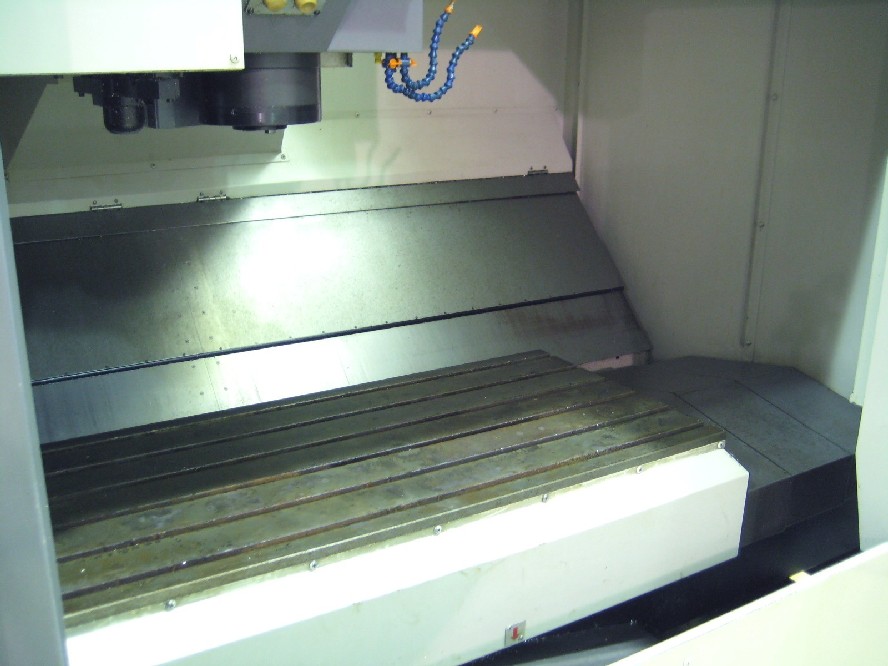

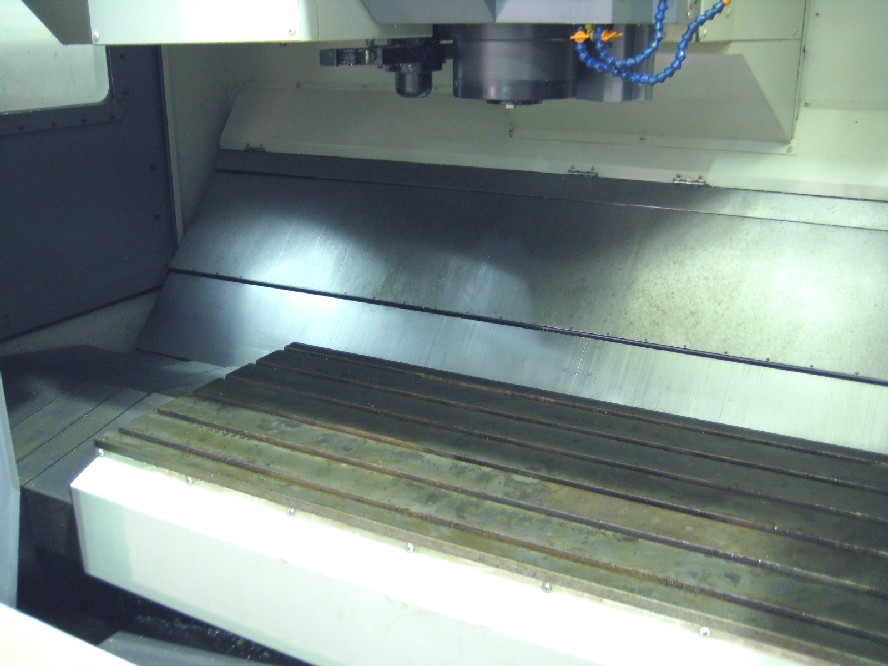

TABLE SIZE52" x 23.6"
MAXIMUM PALLET LOAD2,640 LBS
SPINDLE NOSE TO PALLET TOP6" - 26"
X AXIS TRAVEL40.2"
Y AXIS TRAVEL20.1"
Z AXIS TRAVEL20.1"
RAPID TRAVERSE RATE X, Y & Z AXES1260 IPM
CUTTING FEED RATE0.1 - 630 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS10,000 RPM
SPINDLE MOTOR30 HP
TOOL CHANGER CAPACITY30 STATION ATC
MAXIMUM TOOL WEIGHT20 LBS

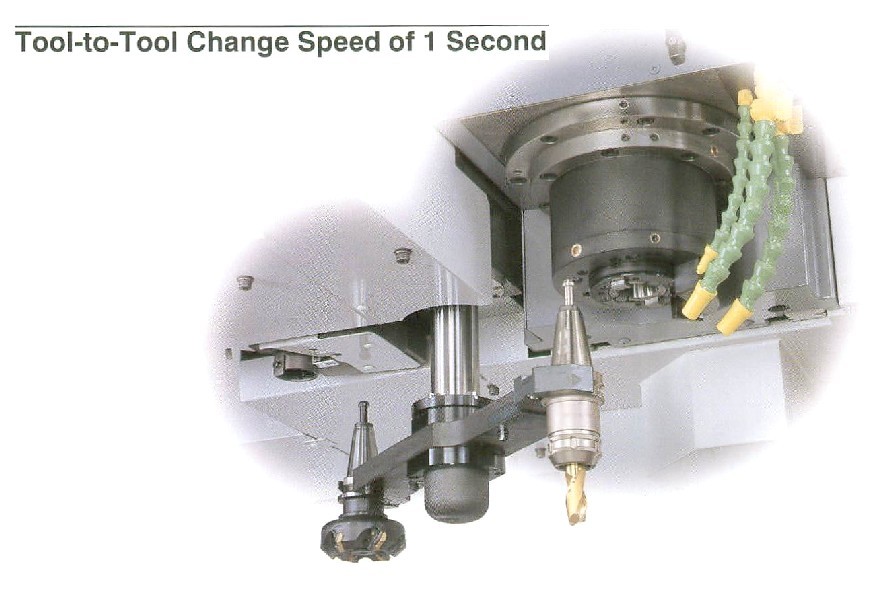

TOOL CHANGE TIME (TOOL TO TOOL)0.9 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP)3.1 SECONDS

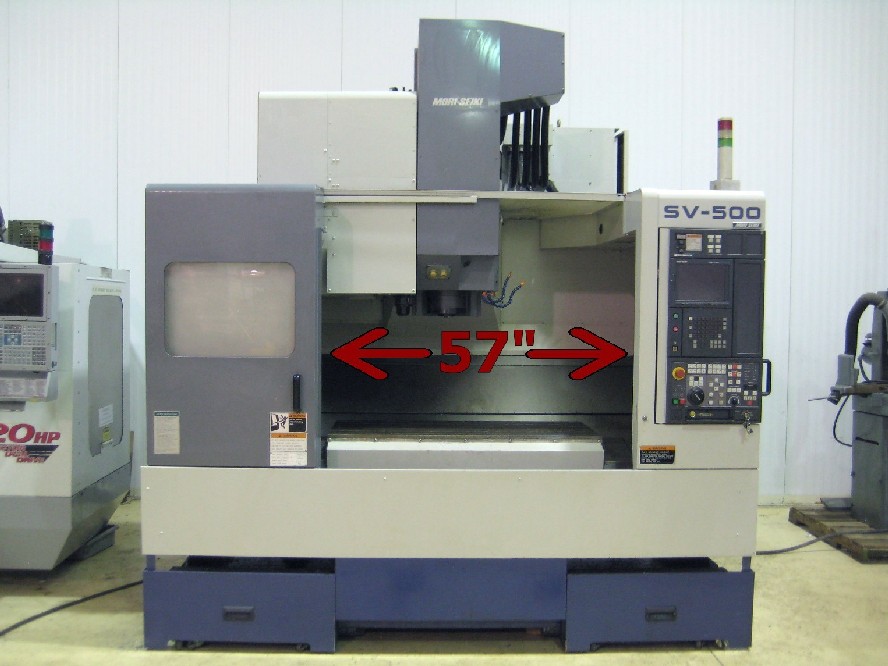

FRONT DOOR PASSAGEWAY57" WIDE
DIMENSIONS, APPROX.113" x 105" x 112"
WEIGHT, APPROX.16,000 LBS

Equipped With:

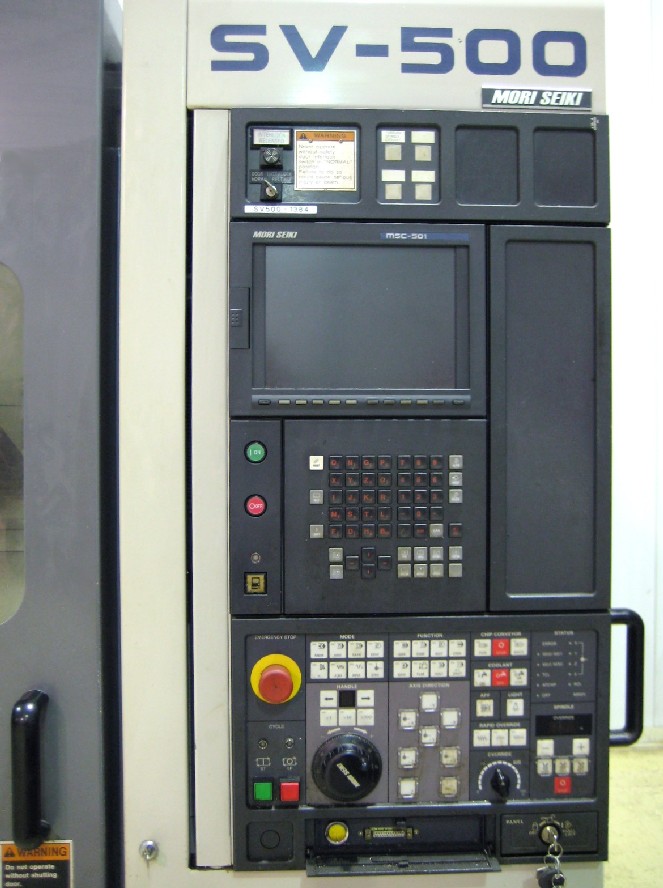

MORI MSC-501 (FANUC 16M) CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
***RIGID CASTING STRUCTURE***
HOURS: 1914 CUTTING TIME & 3102 OPERATING TIME
