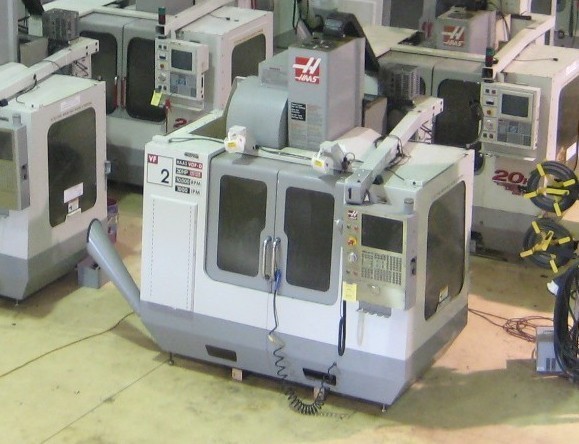

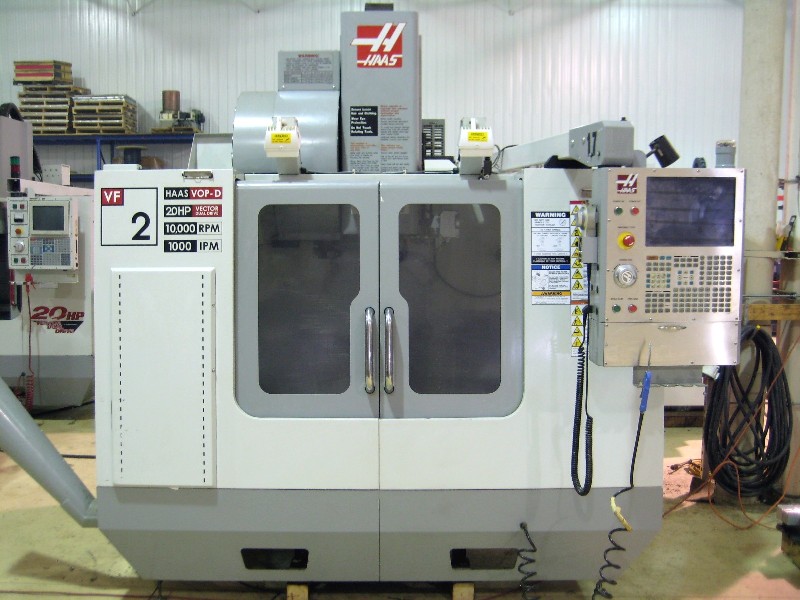

HAAS VF-2 CNC MILL, 30 x 16 x 20, 20HP 10000 RPM, SIDEMOUNT ATC, PROBE PACKAGE, 4TH AXIS PREWIRE, LOADED PAKG D, '06
Stock Number: 4690
Click to view larger photo
Request a quote on stock# 4690
| Specification | Description |
|---|
| DATE OF MFG (INSTALLED NEW) | 11/2006 (2007) |
| TABLE SIZE | 36" x 14" |
| MAXIMUM TABLE LOAD | 3,000 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 24" |
| X AXIS TRAVEL | 30" |
| Y AXIS TRAVEL | 16" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 1000 IPM |
| CUTTING FEED RATE, HIGH-SPEED | 0.1 - 833 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS (VECTOR DUAL DRIVE) | 0 - 10,000 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY | 24+1 STATIONS (SIDE) |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| WEIGHT, APPROX. | 8,500 LBS |
| DIMENSIONS, APPROX. | 110"L x 93"W x 102"H |
Equipped With:
HAAS TRIPLE HIGH-SPEED CNC CTRL w/15" COLOR LCD w/RS-232C PORT INTERFACE & GRAPHICS,
SIDEMOUNT TOOL CHANGER, COORDINATE ROTATION & SCALING,
w/HIGH SPEED MACHINING OPTION, VISUAL QUICK CODE,

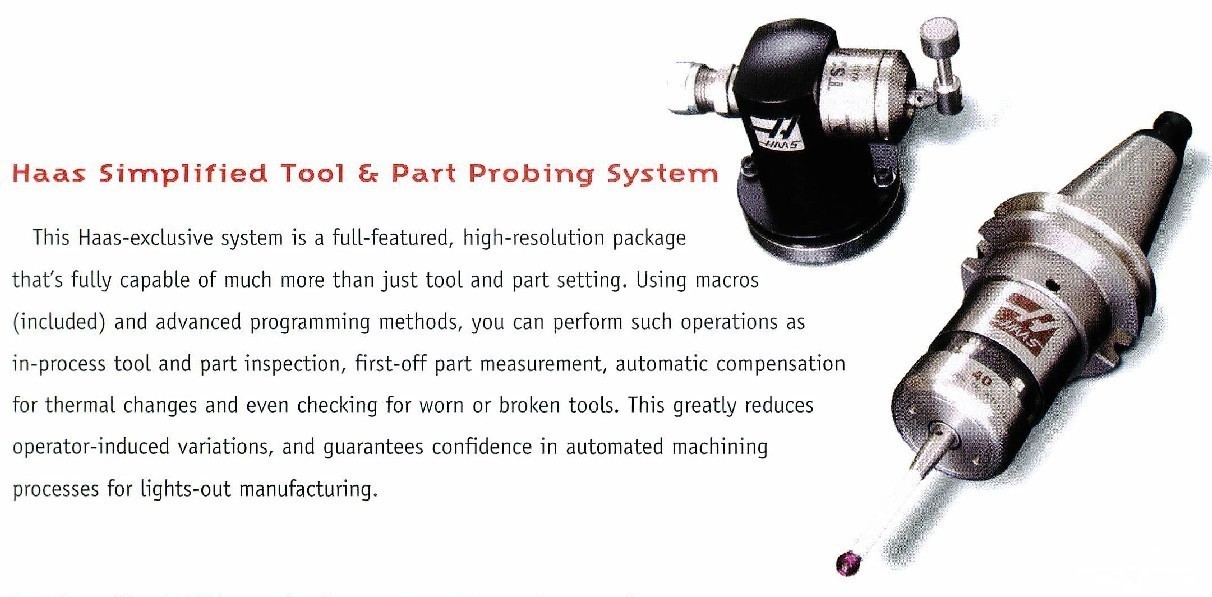

SPINDLE PROBE FOR WORKPIECE OFFSETS & PART INSPECTION,
TOOL PROBE TO AUTOMATICALLY DEFINE TOOL OFFSETS & SIZE,
PROGRAMMABLE COOLANT NOZZLE, 3.5" FLOPPY DISK DRIVE,
REMOTE JOG HANDLE, USER DEFINEABLE MACROS, USB COM. PORT,
PRE-WIRED FOR 4TH AXIS ROTARY (NO ROTARY INCLUDED),
10,000 RPM SPINDLE (LIQUID COOLED), SPINDLE ORIENTATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING), 1MB MEMORY,
ROLL-OUT COOLANT SYSTEM w/TANK & PUMP, CHIP REMOVAL AUGER,
HIGH INTENSITY LIGHTING, OIL/COOLANT SEPARATOR,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
