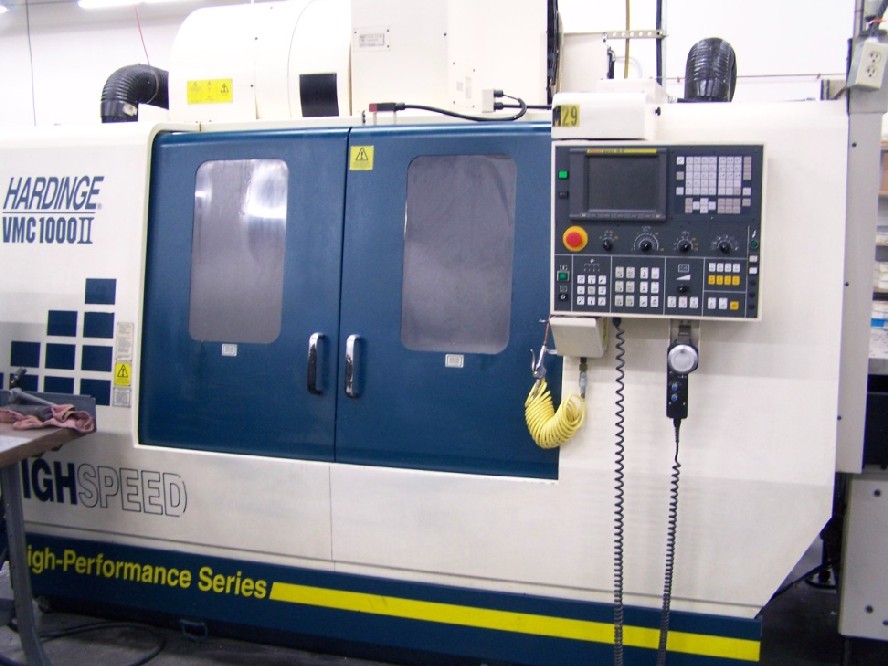

CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKG

HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKG

Stock Number: 4689

CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKG, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKG, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKG, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKG, Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKG, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4689 CNC VERTICAL MACHINING CENTERS: HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, TROYKE 4TH, MIDACO, RENISHAW PROBES, MOLD PKGRequest a quote on stock# 4689
SpecificationDescription
YEAR OF MANUFACTURE2001
TABLE SIZE (2)44" x 20"
MAXIMUM TABLE LOAD1,540 LBS
SPINDLE NOSE TO TABLE TOP6.1" - 26.1"
X AXIS TRAVEL40.2"
Y AXIS TRAVEL20.1"
Z AXIS TRAVEL20.1"
RAPID TRAVERSE RATE ALL AXIS1181 IPM
CUTTING FEED RATE0.1 - 500 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 12,000 RPM
SPINDLE MOTOR22 HP
TOOL CHANGER CAPACITY (SIDE MOUNT)24 STATIONS
TOOL CHANGE TIME2.5 SEC., BIDIRECTIONAL
MACHINE WEIGHT, APPROX.15,000 LBS
DIMENSIONS APPROXIMATELY240" x 84" x 109"

Equipped With:

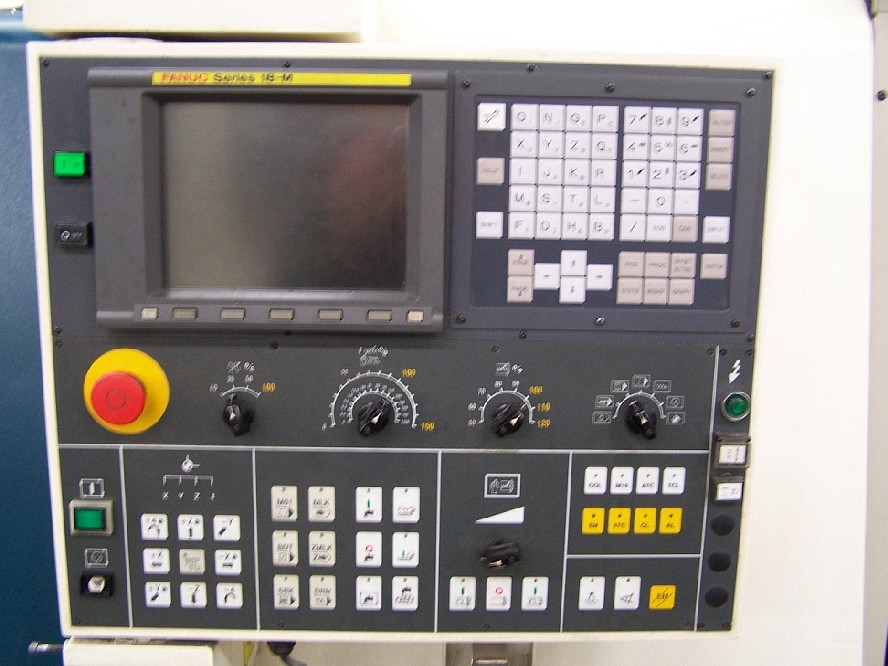

FANUC 18M CNC CONTROL w/10.4" LCD SCREEN & CONTOURING,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RENISHAW TOOL/TABLE PROBE & SPINDLE/PART PROBE,

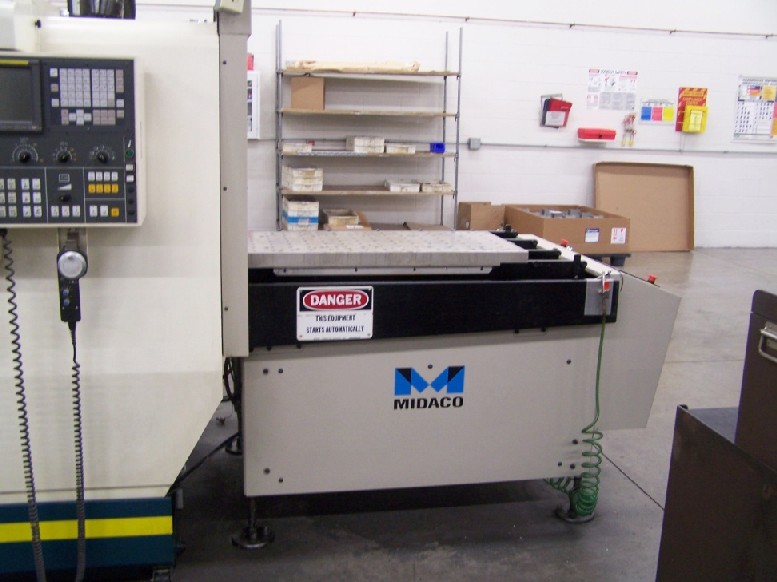

MIDACO AUTOMATIC 2-PALLET CHANGER MDL 40SD (SIDE BY SIDE),
COOLANT THROUGH THE SPINDLE (STD. PRESSURE),
PRE-WIRED FOR 4TH AXIS, SIDE MOUNT SWING TOOL CHANGER,

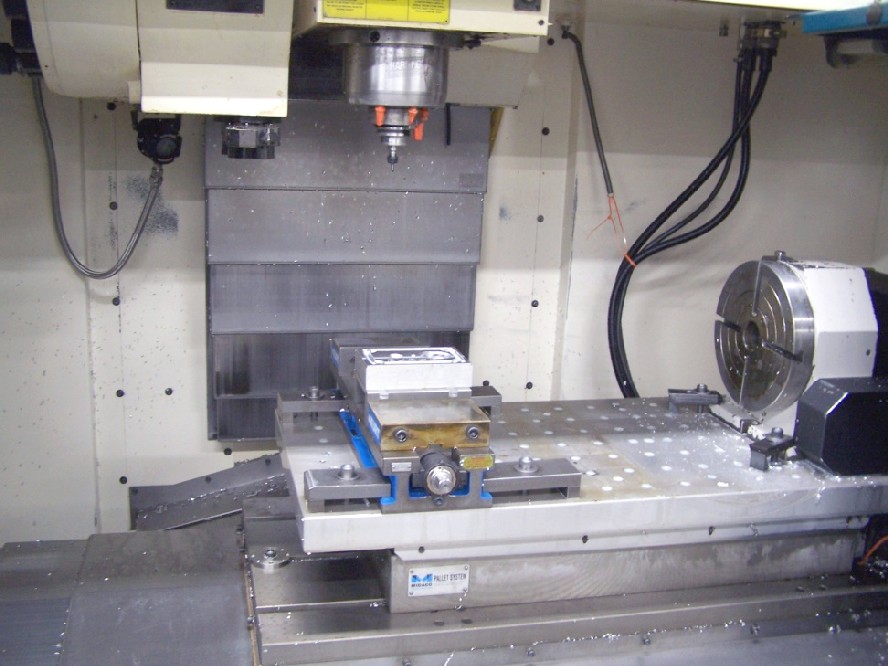

12" TROYKE FULL CONTOURING 4TH AXIS ROTARY TABLE,
LEFT SIDE DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE JOG HANDLE/REMOTE PULSE GENERATOR,
CHIP FLUSH / WASHDOWN COOLANT FEATURE,
PNEUMATIC AUTO DOOR FOR PALLET SYSTEM,
FULLY ENCLOSED GUARDS, ALL AVAILABLE MANUALS
***THIS CONTROLLER IS EQUIPPED WITH THE OPTIONAL "ADVANCED
MOLD PACKAGE" FOR INCREASED SPEED & ACCURACY FOR FASTER
PROGRAMMING & PROCESSING OF COMPLEX MOLD SHAPES. PACKAGE
INCLUDES HIGH-PRECISION CONTOUR CONTROL, 2.5 GB DATA SERVER
64 BIT RISC PROCESSOR & 180 BLOCK LOOKAHEAD.
