HARDINGE VMC-1000 II APC, FANUC 18M, 40 x 20 x 20, 12000 RPM, COOL THRU, 4TH, MIDACO, CHIP, '02
Stock Number: 4688
Click to view larger photo
Request a quote on stock# 4688
| Specification | Description |
|---|
| YEAR OF MANUFACTURE | 2002 |

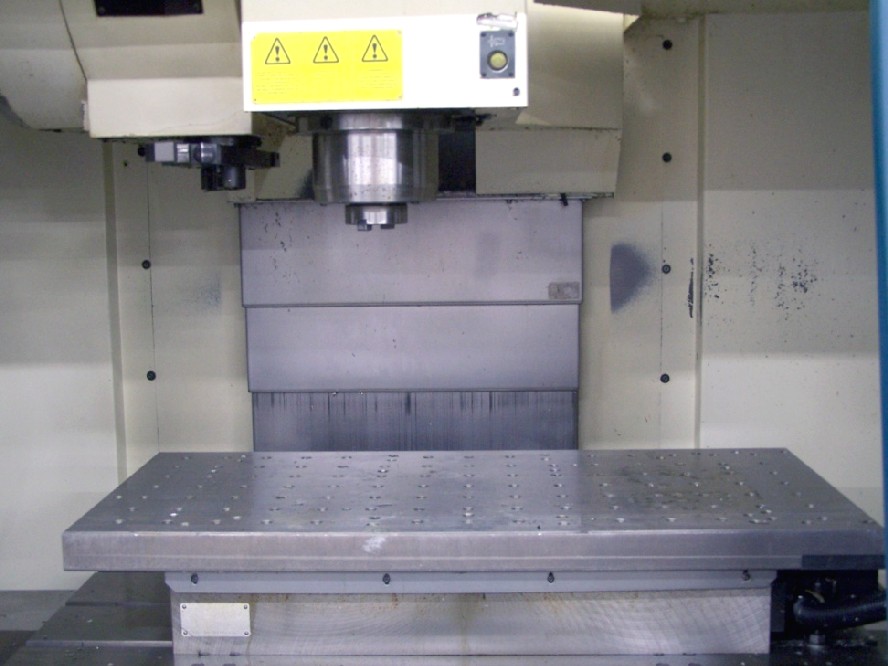

| TABLE SIZE (2) | 44" x 20" |
| MAXIMUM TABLE LOAD | 1,540 LBS |
| SPINDLE NOSE TO TABLE TOP | 6.1" - 26.1" |
| X AXIS TRAVEL | 40.2" |
| Y AXIS TRAVEL | 20.1" |
| Z AXIS TRAVEL | 20.1" |
| RAPID TRAVERSE RATE ALL AXIS | 1181 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 12,000 RPM |
| SPINDLE MOTOR | 22 HP |
| TOOL CHANGER CAPACITY (SIDE MOUNT) | 24 STATIONS |
| TOOL CHANGE TIME | 2.5 SEC., BIDIRECTIONAL |
| MAXIMUM TOOL WEIGHT | 13.2 LBS |
| MACHINE WEIGHT, APPROX. | 15,000 LBS |
| DIMENSIONS, APPROX. | 240" x 86" x 109" |
Equipped With:
FANUC 18M CNC CONTROL w/10.4" LCD SCREEN & CONTOURING,
RS-232C PORT INTERFACE FOR DNC OPERATION,

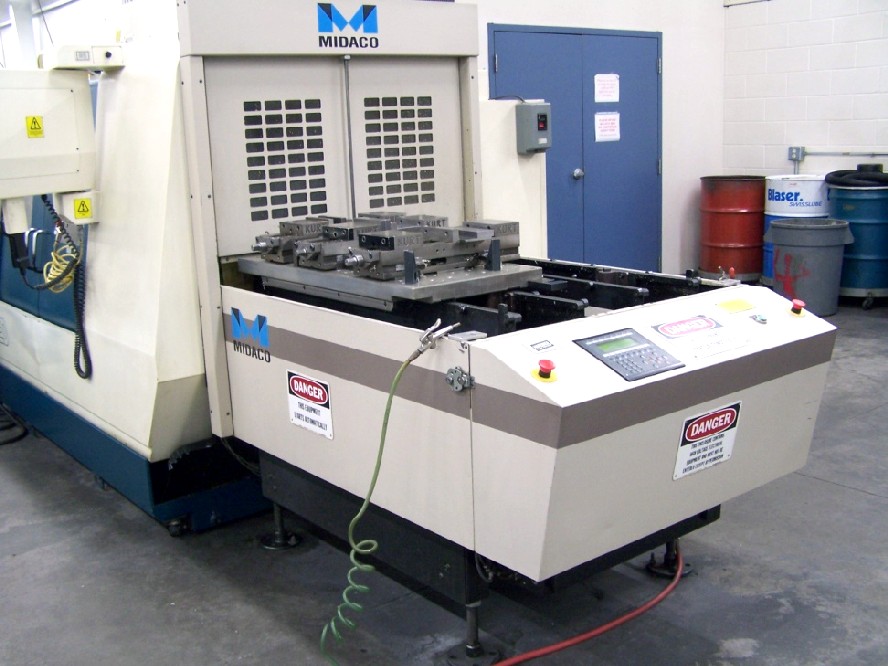

MIDACO AUTOMATIC 2-PALLET CHANGER MDL 40SD (SIDE BY SIDE),
COOLANT THROUGH THE SPINDLE (STD. PRESSURE),
PRE-WIRED FOR 4TH AXIS, SIDE MOUNT SWING TOOL CHANGER,

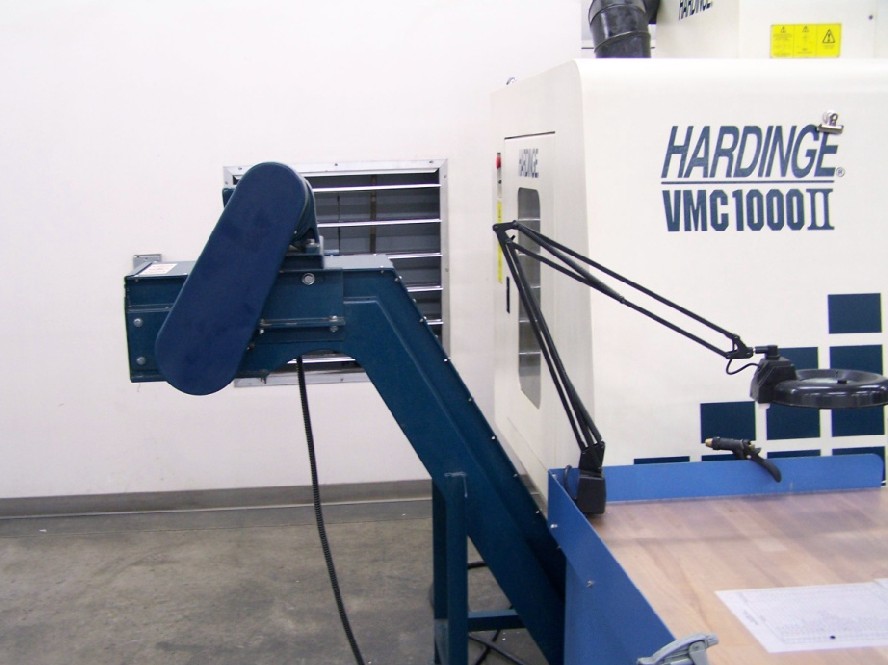

LEFT SIDE DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
REMOTE JOG HANDLE/REMOTE PULSE GENERATOR,
CHIP FLUSH / WASHDOWN COOLANT FEATURE,
PNEUMATIC AUTO DOOR FOR PALLET SYSTEM,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDS, ALL AVAILABLE MANUALS
