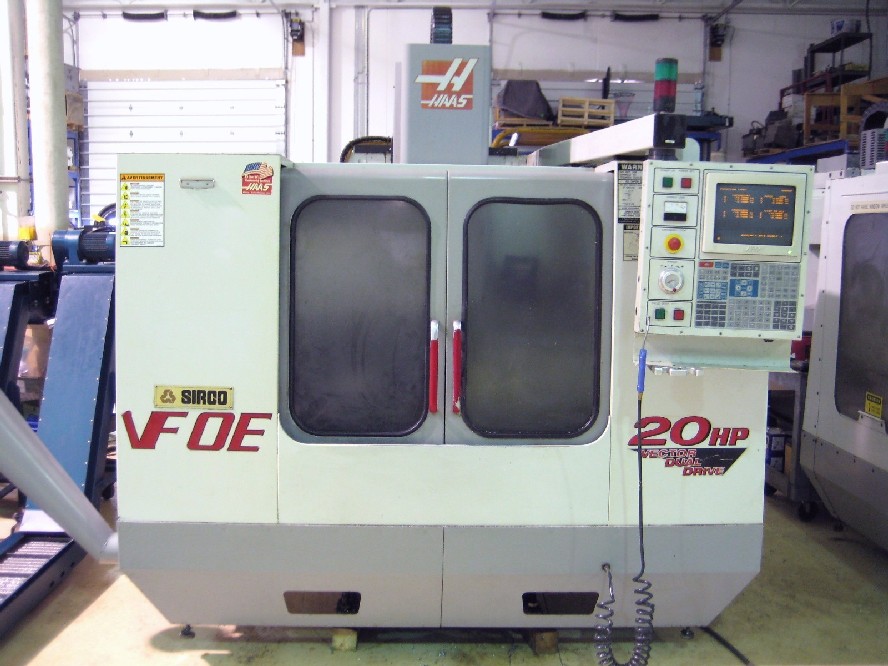

CNC VERTICAL MACHINING CENTERS: HAAS VF-0E CNC MILL, 30 x 16 x 20, 10,000 RPM, HIGH SPEED MACHINING, 20 HP, PCOOL, NEW 1999

HAAS VF-0E CNC MILL, 30 x 16 x 20, 10,000 RPM, HIGH SPEED MACHINING, 20 HP, PCOOL, NEW 1999

Stock Number: 4686

Click to view larger photo

Request A Quote On Our Stock Number: 4686 CNC VERTICAL MACHINING CENTERS: HAAS VF-0E CNC MILL, 30 x 16 x 20, 10,000 RPM, HIGH SPEED MACHINING, 20 HP, PCOOL, NEW 1999

Request A Quote On Our Stock Number: 4686 CNC VERTICAL MACHINING CENTERS: HAAS VF-0E CNC MILL, 30 x 16 x 20, 10,000 RPM, HIGH SPEED MACHINING, 20 HP, PCOOL, NEW 1999

Request a quote on stock# 4686

Specification	Description
DATE OF MFG (INSTALLED NEW)	12/1999 (2000)

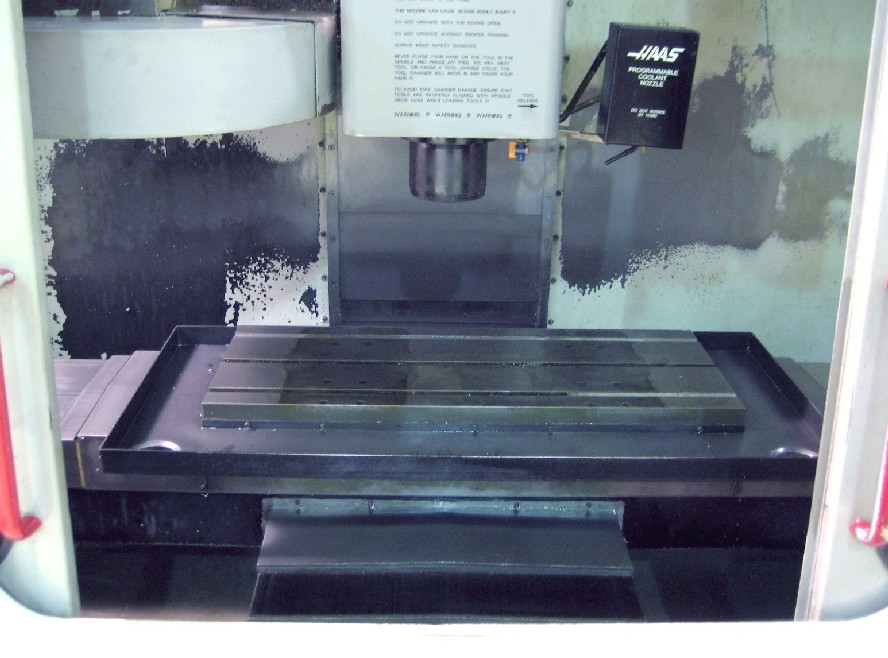

TABLE SIZE	36" x 14"
MAXIMUM TABLE LOAD	3,000 LBS
SPINDLE NOSE TO TABLE TOP	4" - 24"
X AXIS TRAVEL	30"
Y AXIS TRAVEL	16"
Z AXIS TRAVEL	20"
RAPID TRAVERSE RATE X, Y & Z AXES	710 IPM
CUTTING FEED RATE	0.1 - 500 IPM
SPINDLE TAPER	CAT 40
SPINDLE SPEEDS	0 - 10,000 RPM
SPINDLE MOTOR	20 HP
TOOL CHANGER CAPACITY	20 STATIONS
MAXIMUM TOOL WEIGHT	12 LBS
WEIGHT, APPROX.	8,500 LBS
DIMENSIONS, APPROX.	110"L x 93"W x 102"H

Equipped With:

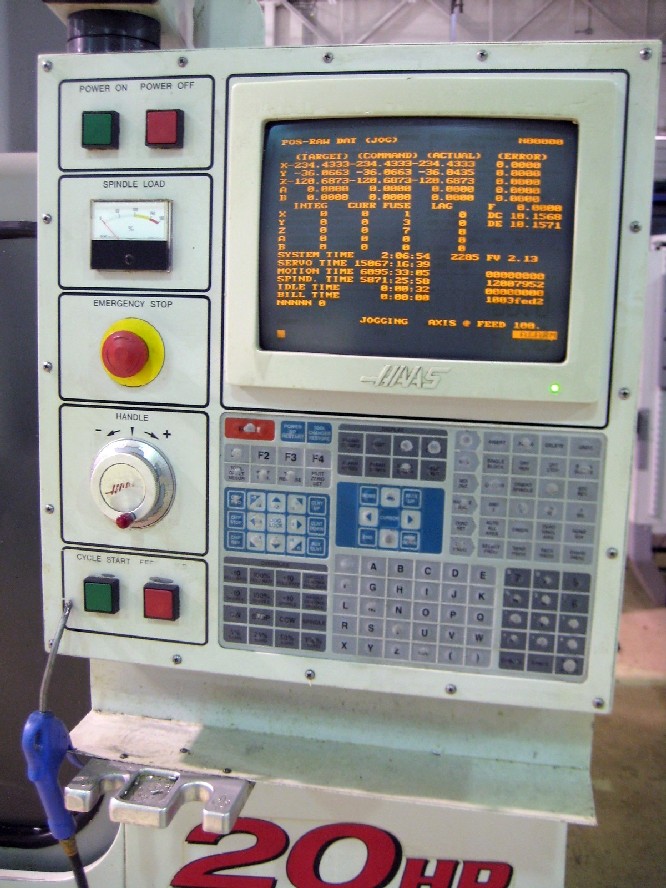

HAAS DUAL-MICROPROCESSOR CNC CTRL w/12" MONITOR & RS-232C PORT INTERFACE,
w/HIGH SPEED MACHINING OPTION,
10,000 RPM SPINDLE (LIQUID COOLED),
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
CHIP AUGER, FLOPPY DRIVE, QUIKCODE PROGRAMMING, 1 MEG MEMORY,
PROGRAMMABLE COOLANT NOZZLE,
ROLL-OUT COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
