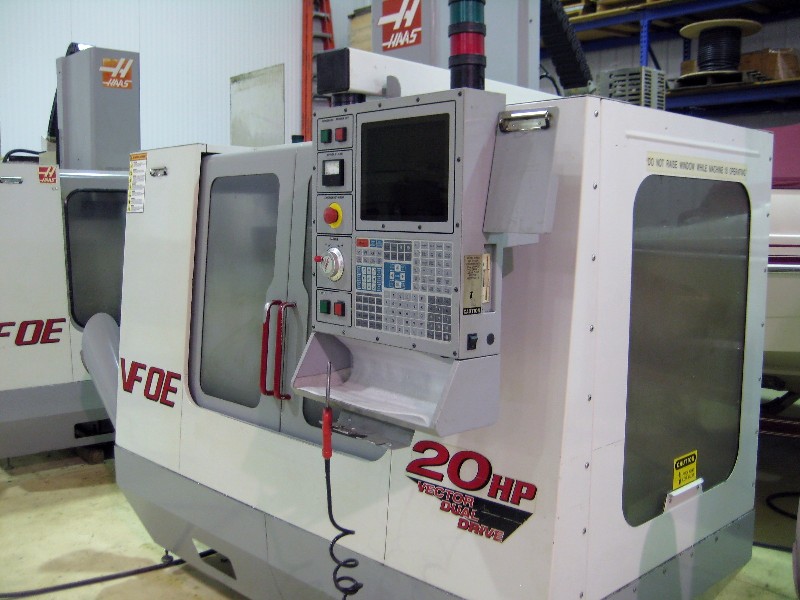

HAAS VF-0E CNC MILL, 30 x 16 x 20, 10,000 RPM, HIGH SPEED MACHINING, 20 HP, PCOOL, NEW 2000
Stock Number: 4681
Click to view larger photo
Request a quote on stock# 4681
| Specification | Description |
|---|
| DATE OF MANUFACTURE | 9/2000 |

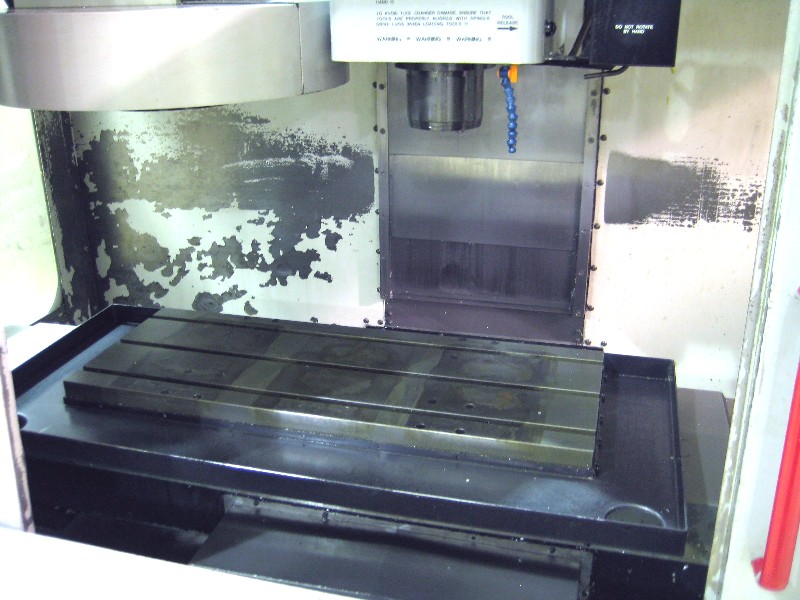

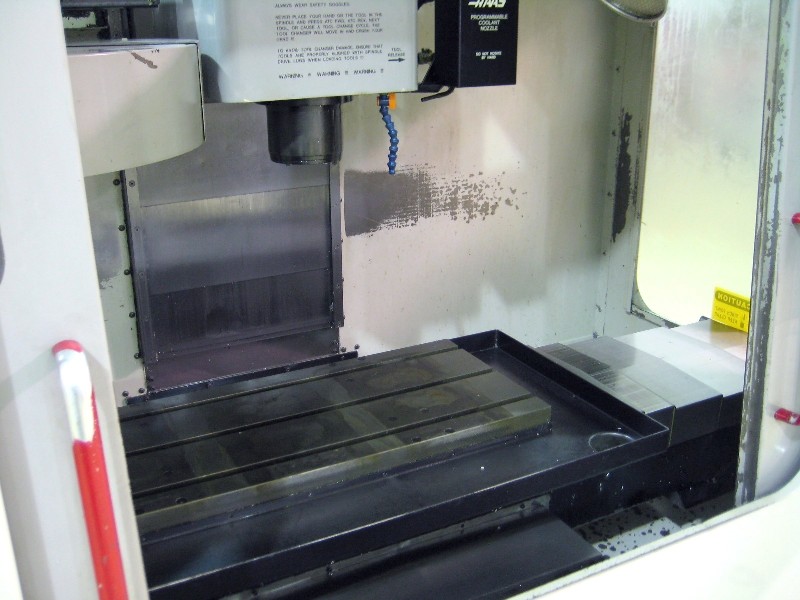

| TABLE SIZE | 36" x 14" |
| MAXIMUM TABLE LOAD | 3,000 LBS |
| SPINDLE NOSE TO TABLE TOP | 4" - 24" |
| X AXIS TRAVEL | 30" |
| Y AXIS TRAVEL | 16" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 710 IPM |
| CUTTING FEED RATE | 0.1 - 500 IPM |
| SPINDLE TAPER | CAT 40 |
| SPINDLE SPEEDS | 0 - 10,000 RPM |
| SPINDLE MOTOR | 20 HP |
| TOOL CHANGER CAPACITY | 20 STATIONS |
| MAXIMUM TOOL WEIGHT | 12 LBS |
| WEIGHT, APPROX. | 8,500 LBS |
| DIMENSIONS, APPROX. | 110"L x 93"W x 102"H |
Equipped With:

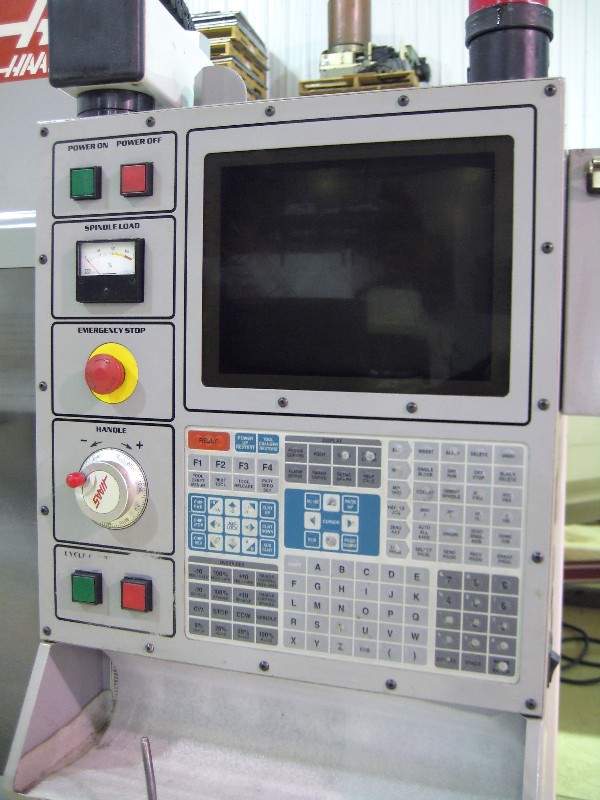

HAAS DUAL-MICROPROCESSOR CNC CTRL w/12" MONITOR & RS-232C PORT INTERFACE,
w/HIGH SPEED MACHINING OPTION,
10,000 RPM SPINDLE (LIQUID COOLED),
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
CHIP AUGER, FLOPPY DRIVE, QUIKCODE PROGRAMMING,
SPINDLE ORIENTATION, 1 MEG MEMORY,
PROGRAMMABLE COOLANT NOZZLE,
ROLL-OUT COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
